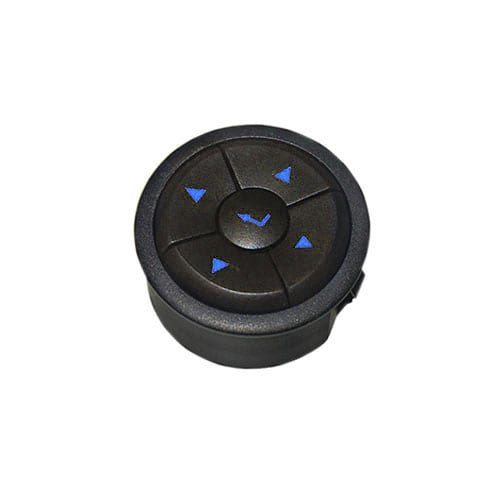

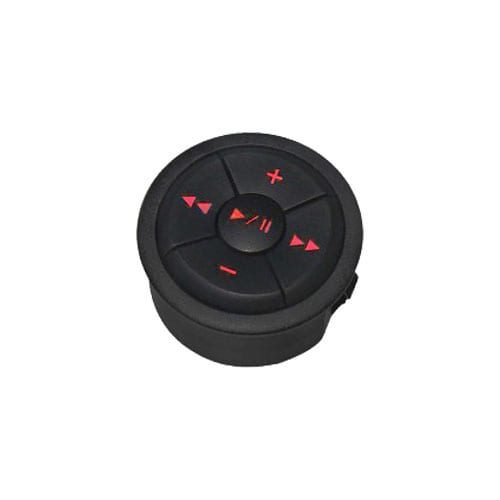

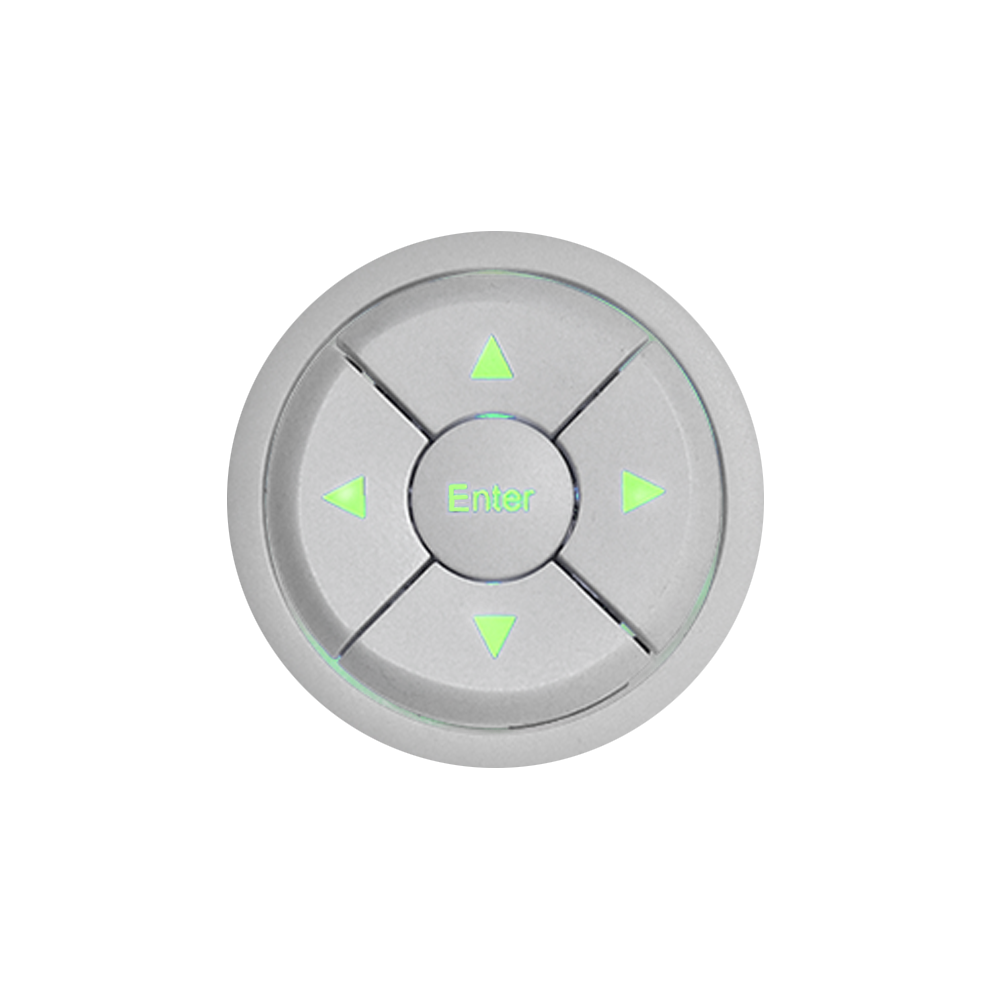

This round Navigation Switch features a 5-way tactile push button function and LED illumination. The housing of the switch is available in black, grey or white, and custom markings are also available.

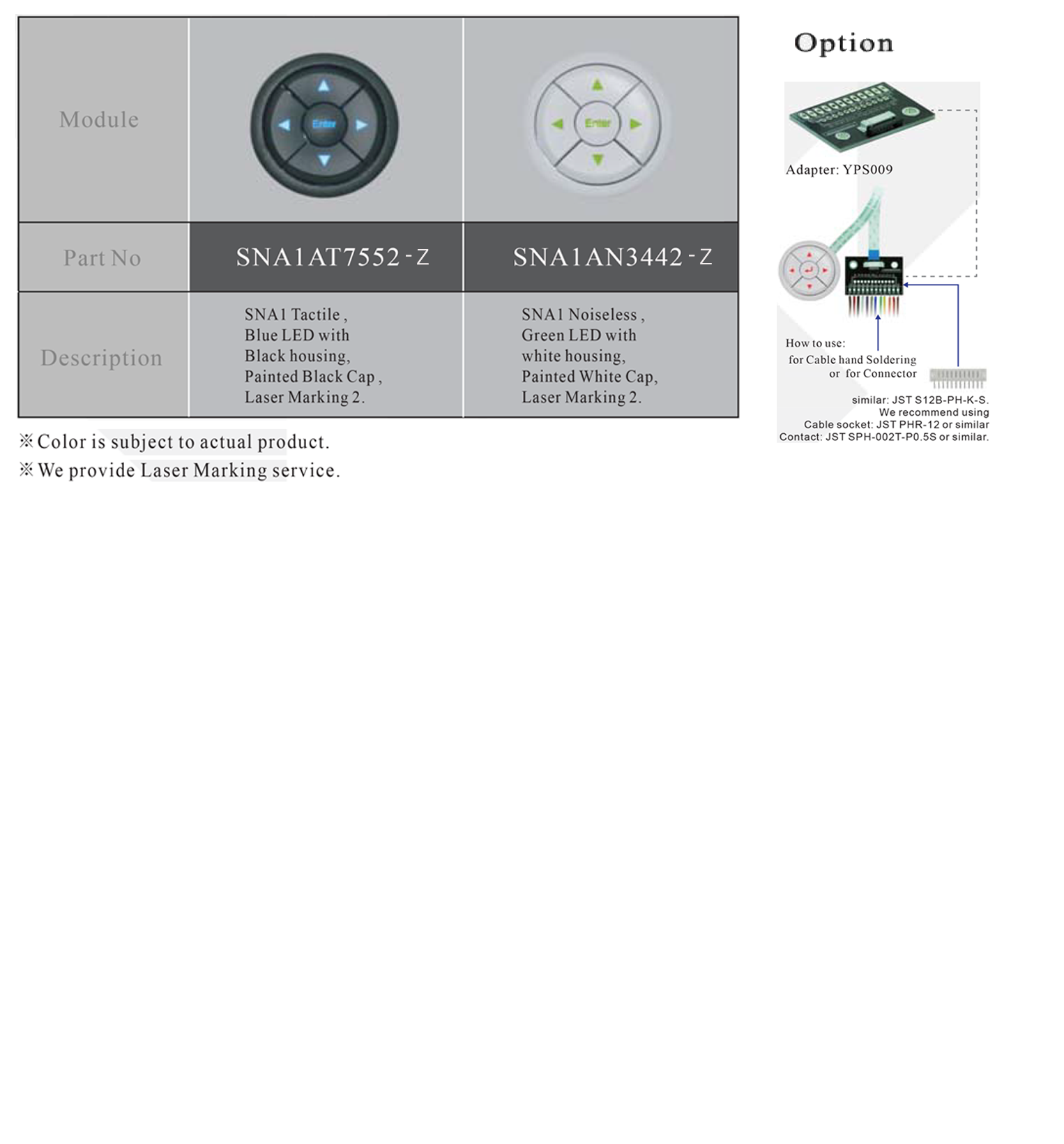

Key Features:
| Product Series | |
|---|---|
| Configuration | |
| Function | |
| Cap / Actuator Shape | |
| Illumination | |
| Switch Travel |
|
SNA-Z Series Specification
|
|
| Current rating | 50mA |
| Voltage rating | 12 VDC |
| Dielectric withstanding voltage | 250VAC for 1 minute |
| Contact resistance | 100mOhm max.(initial) |
| Insulation resistance | 100MOhm min |
| Operating force | 230gf + 50gf (tactile)/
60gf + 40gf (noisless) |
| Total travel (tactile) | 0.4mm + 0.2mm |
| Total travel (noiseless) | 1.0mm + 0.3mm |
| Mechanical life | 1,000,000 cycles min |
| Solder specifications | 260 deg for 3 seconds |
| Function | Momentary (SPST) |
| Operating temperature | -10deg~+60deg |
|

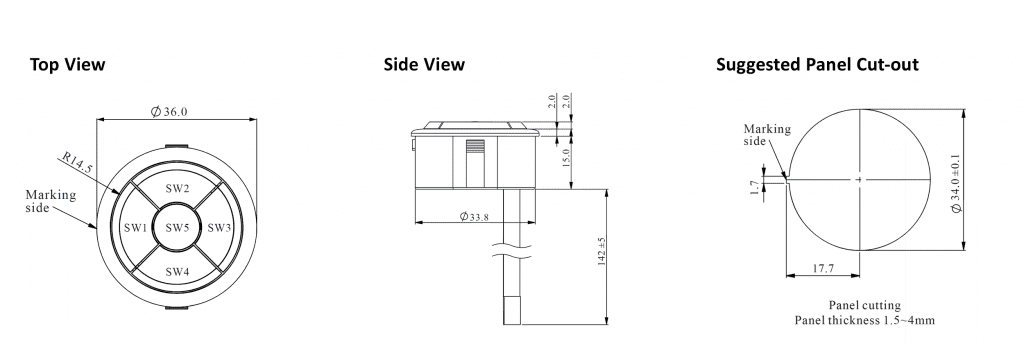

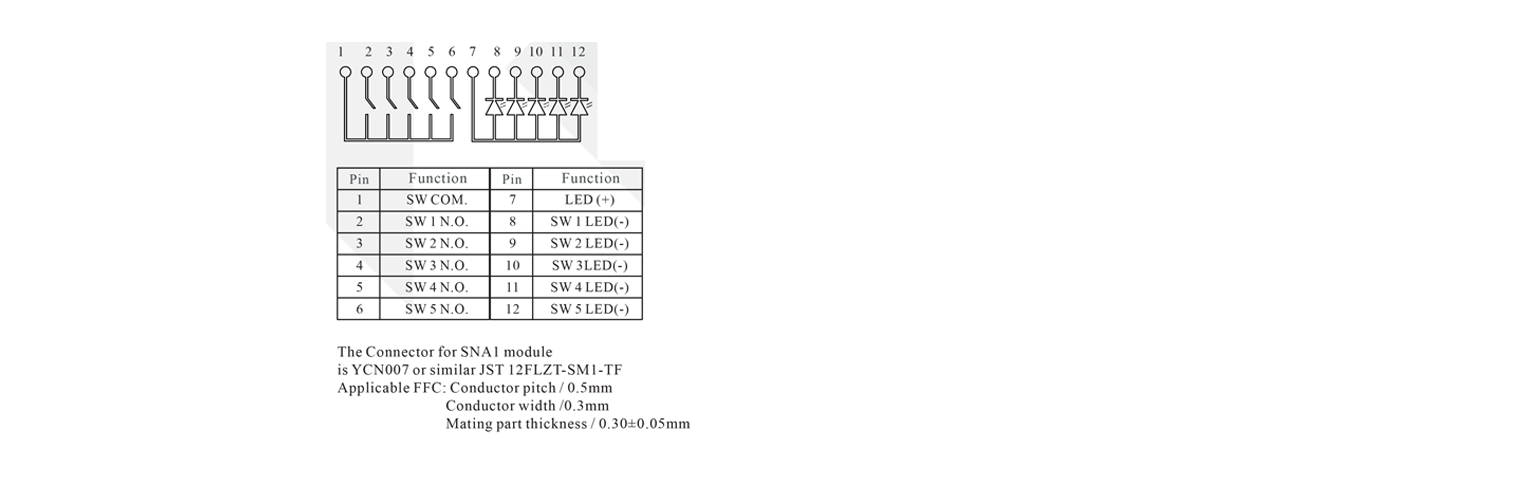

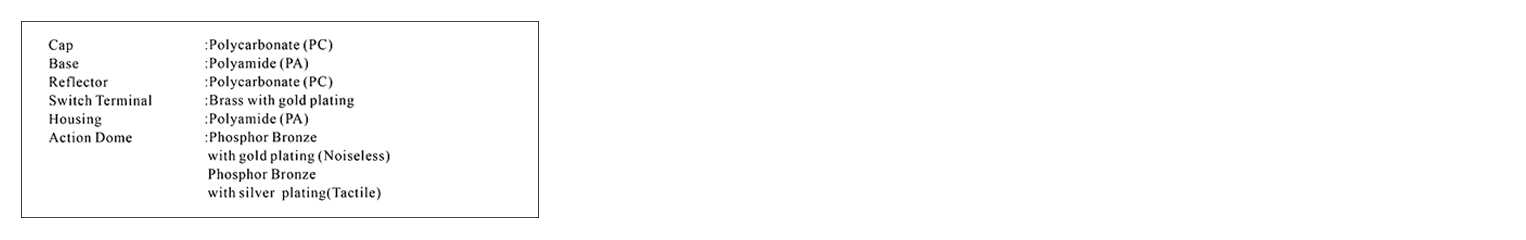

SNA-Z Series Materials
|
|
| Cap | Polycarbonate (PC) |
| Base | Polyamide (PA) |
| Reflector | Polycarbonate (PC) |
| Switch terminal | Bronze with gold plating |
| Housing | Polyamide (PA) |
| Action dome | Phosphor bronze with gold plating (noiseless)
Phosphor bronze with silver plating (tactile) |
