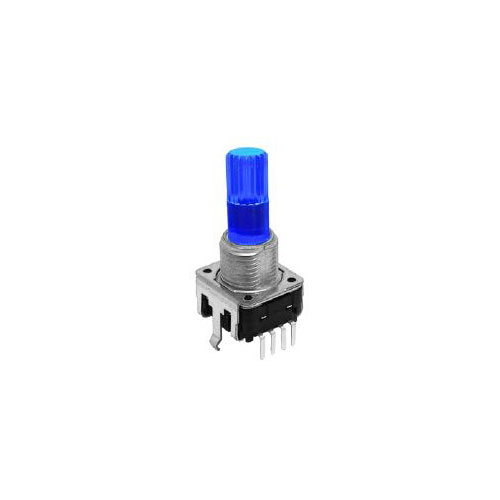

RJSILLUME-12S24218 PCB mount led illuminated rotary encoder with push button switch, LED switches, RJS Electronics Ltd

RJSILLUME-12S24218

This 12mm Rotary Encoder features a push button function and bi-colour illumination, with high brightness for darker environments. It has vertical-type PCB mounting with bushing and a rotational life of 30,000.

Key Features:

  • Rotary encoder with push button
  • Bi-colour LED illumination
  • High brightness
  • Vertical type
  • 12mm
  • Rotational life (cycle): 30,000
  • With bushing
Data Sheet
Function

,

Illumination

Single LED options

, , , , , , ,

Multi-Colour LED Options

Switch Travel

Switch Action

Product Series

Rating

DC 5V
10 mA
Contact Resistance

100 mΩ
Insulation Resistance

250V DC
100MΩ Min
Dielectric Strength

300V AC
1 Min

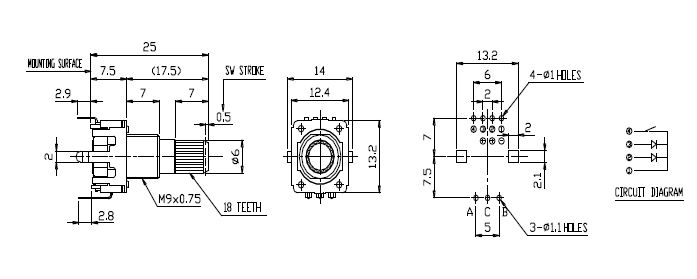

Drawing of RJSILLUME-12S24218 PCB mount led illuminated rotary encoder with push button switch, LED switches, RJS Electronics Ltd
