RJSPS16B Round PLASTIC LED ILLUMINATED INDICATORS, RJS ELECTRONICS LTD

RJSPS16B Round LED Indicator - Image 2

RJSPS16B Round LED Indicator - Image 3

RJSPS16B Round LED Indicator - Image 4

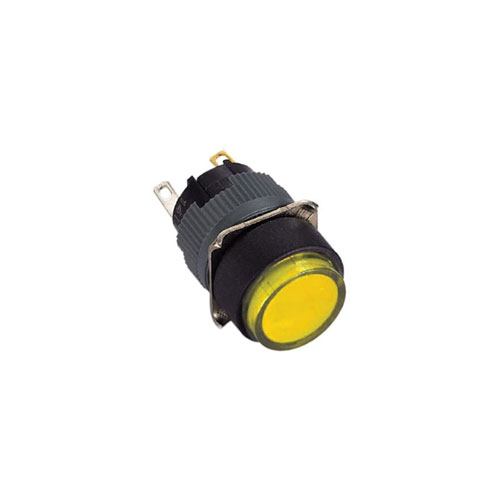

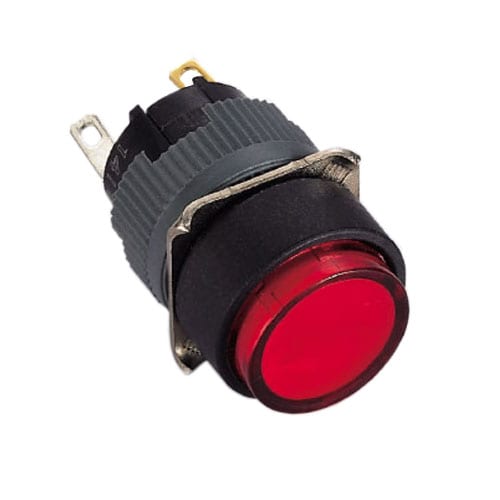

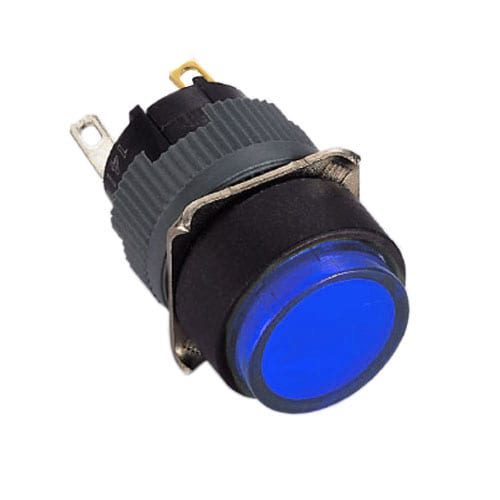

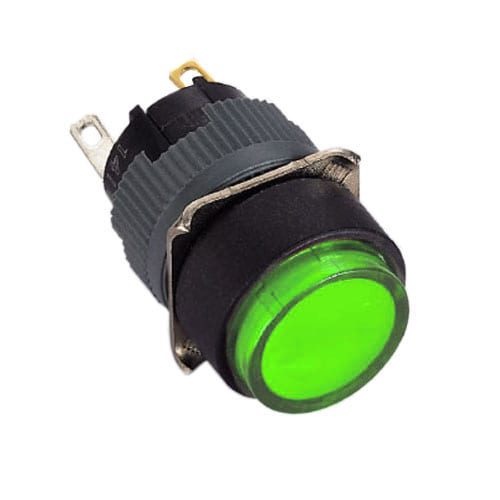

RJSPS16B Round LED Indicator

This 16mm Round LED Indicator has a round actuator, solder lug terminals and full LED illumination.

Key Features

16mm
Plastic
Round
LED illuminated
Solder lug terminals

Additional information

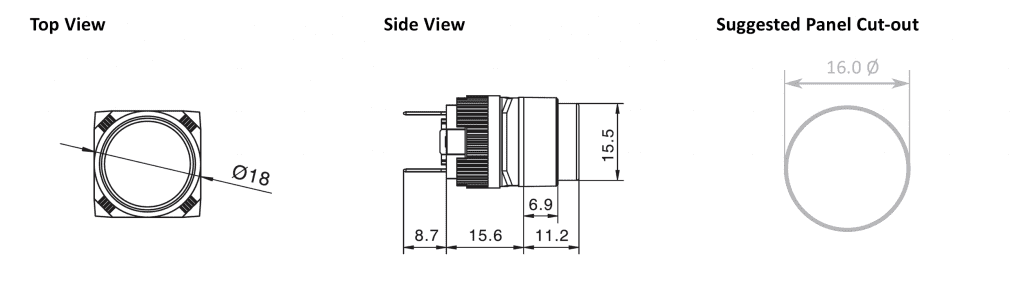

Drawings

Product Series	RJSPS16B
Function	LED Indicator
Cap / Actuator Shape	Round
Illumination	Full Illumination
Orientation	Straight (Vertical)
Terminal Options	Solder Lug Terminals
Configuration	DPDT, SPDT, 3NO3NC (3PDT)
Panel Cut-Out Diameter	Ø 16mm
Single LED options	Blue, Green, Red, White, Yellow
IP Rating	IP65 (front)
