| Function | |
|---|---|
| IP Rating | |
| Product Series | |
| Mechanical Operations | |
| Contact Resistance | 50 m Ω max. |
| Insulation Resistance | 1,000 M Ω max. |
| Dielectric Strength | 500 Vrms mins .@sea level |

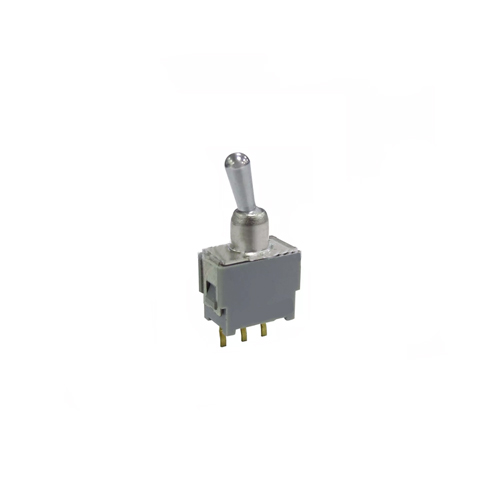

This Sub-Miniature PCB Toggle Switch has SPST terminals and vertical mounting. It can have 2 or 3 positions and is IP67 rated for protection against dust and water.
Key Features:
| Function | |
|---|---|
| IP Rating | |
| Product Series | |
| Mechanical Operations | |
| Contact Resistance | 50 m Ω max. |
| Insulation Resistance | 1,000 M Ω max. |
| Dielectric Strength | 500 Vrms mins .@sea level |
|
Contact Rating |
Max 0.4 VA max @ 48 VAC or DC |
|
Mechanical Life |
40,000 operations min. |
|
Contact Resistance |
50 m Ω max. |
|
Insulation Resistance |
1000 m Ω min. |
|
Dielectric Strength |
500 vrms min. @ sea level |
|
Operating Temperature |
-20°C to 85°C |
|
Degree of Protection |
IP67 |
