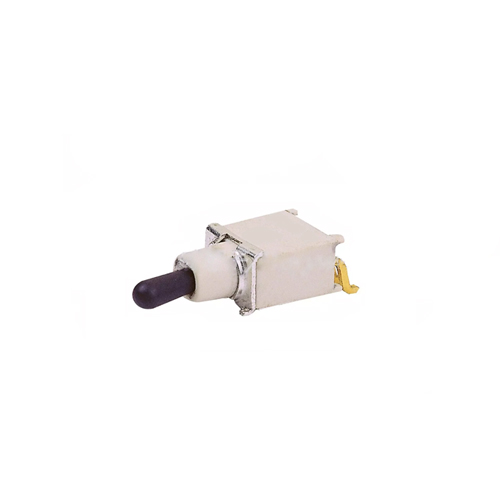

This Sub-Miniature PCB Toggle Switch has SPDT terminals and horizontal mounting. It can have 2 or 3 positions and is sealed with an IP67 rating.
Key Features:
| Function | |
|---|---|
| IP Rating | |
| Mechanical Operations | |
| Product Series |
| Contact Rating | Dependent upon contact material |
| Mechanical Life | 30,000 cycles |
| Contact Resistance | 20 m Ω max. initial @ 2-4VDC 100mA |
| Insulation Resistance | 1000 m Ω min. |
| Dielectric Strength | 1000 vrms min. @ sea level |
| Operating Temperature | -30°C to 85°C |
