| Function | |
|---|---|
| Terminal Options | |
| Contact Resistance | 10 mΩ max. intital @ 2-4VDC |
| Insulation Resistance | 500V 500 mΩ min |
| Product Series | |
| Mechanical Operations | |
| Dielectric Strength | 1,000 Vrms min. @seal level |

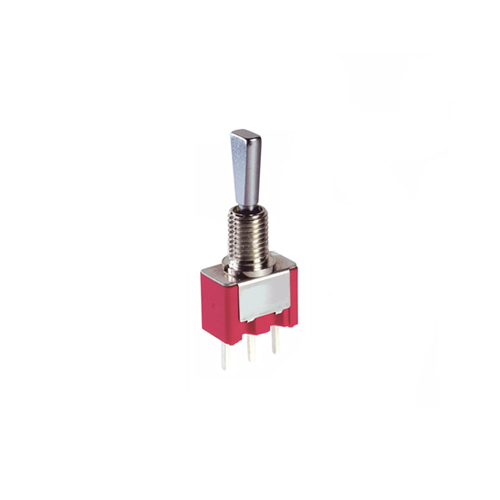

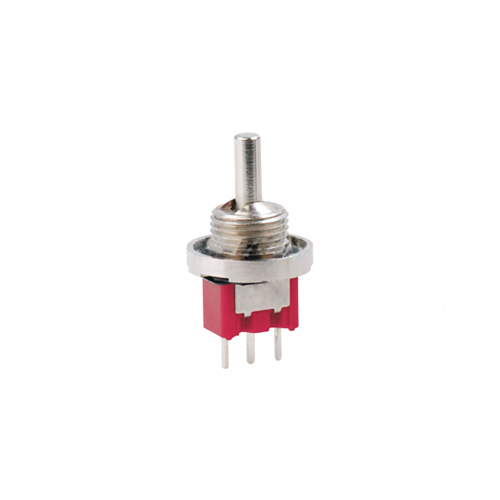

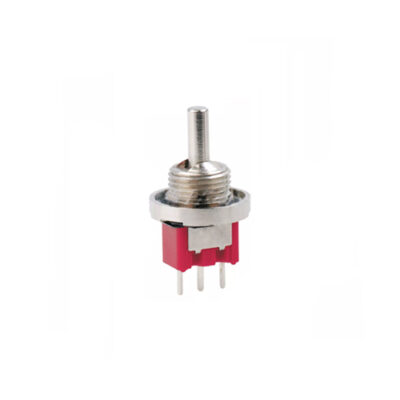

This Miniature PCB Toggle Switch has SPDT terminals and is designed for vertical mounting. This switch is available with 2 position or 3 position configuration.
Key Features:
| Function | |
|---|---|
| Terminal Options | |
| Contact Resistance | 10 mΩ max. intital @ 2-4VDC |
| Insulation Resistance | 500V 500 mΩ min |
| Product Series | |
| Mechanical Operations | |
| Dielectric Strength | 1,000 Vrms min. @seal level |

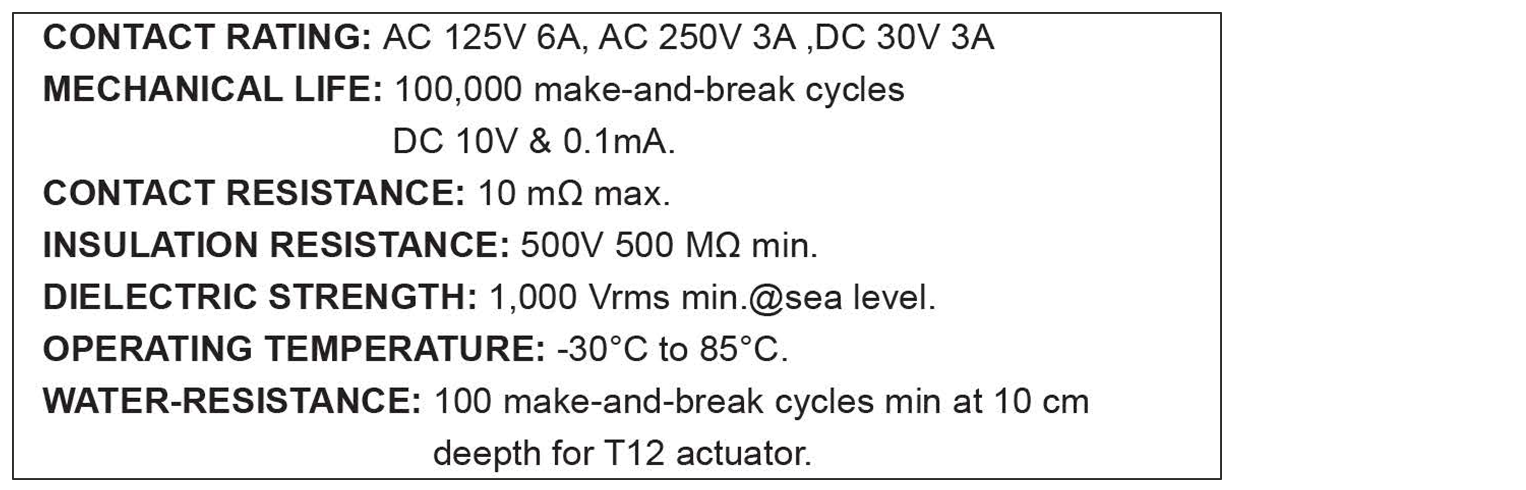

| Contact Rating | AC 125V 6A, AC 250V 3A, DC 30V 3A |
| Mechanical Life | 100,000 cycles |
| Contact Resistance | 10 m Ω max. |
| Insulation Resistance | 500V 500 m Ω min. |
| Dielectric Strength | 1000 vrms min. @ sea level |
| Operating Temperature | -30°C to 85°C |
| Water Resistance | 100 cycles min at 10cm depth (T12 actuator) |
