RJS-2U-M2

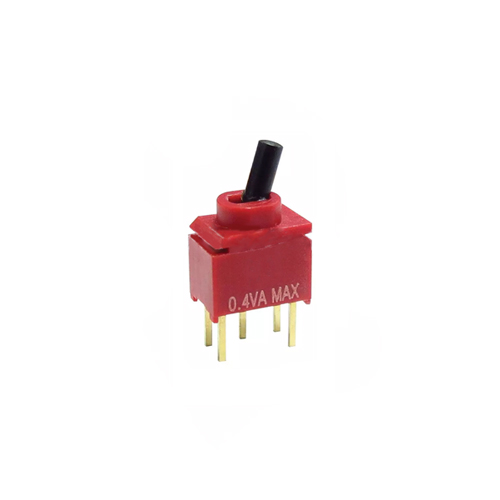

This Ultra-miniature PCB Toggle Switch has a vertical configuration and a black plastic actuator. It is IP67 rated for resistance to water and dust and can have 2 or 3 positions.

Key Features:

Ultra-miniature PCB toggle switch
Vertical mount
2 or 3 position
Contact rating up to 0.4VA
IP67 rated
Full 2U series

Function	Momentary Switch, Toggle Switch
IP Rating	IP67 (front)
Mechanical Operations	40,000 make-and-break cycles
Contact Resistance	Below 100m Ω typ. initial @2-4V DC, 100 mA
Insulation resistance:	500 mΩ min.
Dielectric Strength	500 Vrms min. @ sea level.
Illumination	non-illuminated
Product Series	Toggle Series: 2U

Mechanical Life	40,000 cycles
Contact Rating	0.4 VA max. @ 20 V AC or DC max.
Contact Resistance	Below 100 m Ω typ. Initial @ 2-4 V DC, 100 mA
Insulation Resistance	500 M Ω min.
Dielectric Strength	500 vrms min. @ sea level
Operating Temperature	-30°C to 85°C
Degree of Protection	IP67 rated
