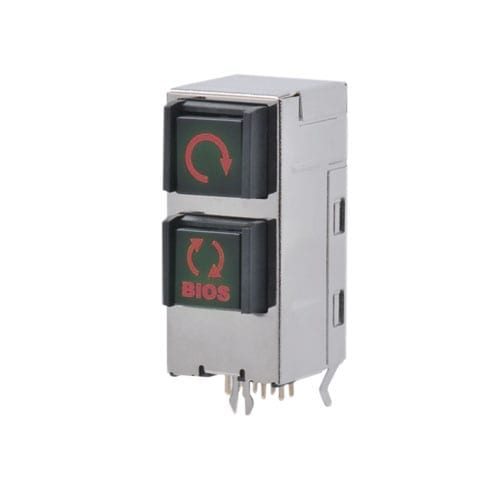

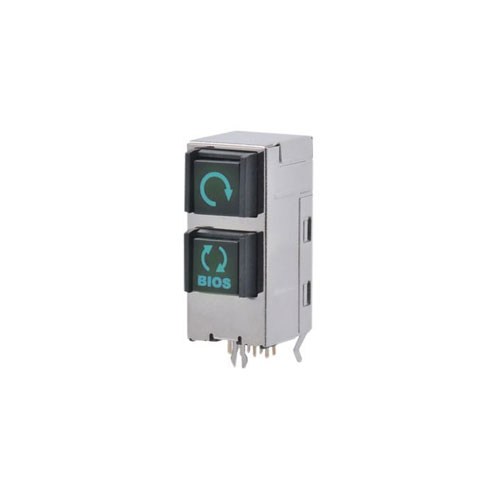

PCB push button switch with precise design terminal type adequate for DIP IC pitch size (multiple of 2.54mm). Choose from metal or rubber dome options and single or bi-colour LED illumination. Several cap legends options available.
Key Features:
| Product Series | |
|---|---|
| Function | |
| Illumination |
| Item | Standard |
| Rating | 50mA 48VDC |
| Insulation Resistance | 100MΩ Min (at 500 VDC) |
| Dielectric Strength | AC 500V (50/60 Hz for 1 minute) |
| Contact Resistance | 100mΩ Max. (Initial) |
| Electrically Life | 300,000 Cycles Min |
| Ambient Temperature | -20°C~ +70°C |
| Total Trovel | 0.25 ± 0.1mm |
| Operating Force | 160 ± 50gf(Momentary) 100 ± 30gf(Alternate) 300 ± 100gf(Momentary With Click) |
