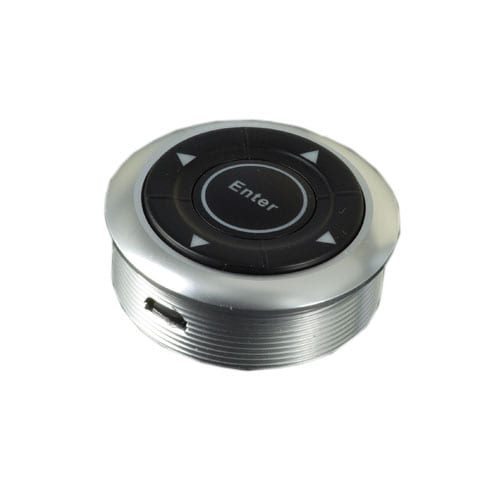

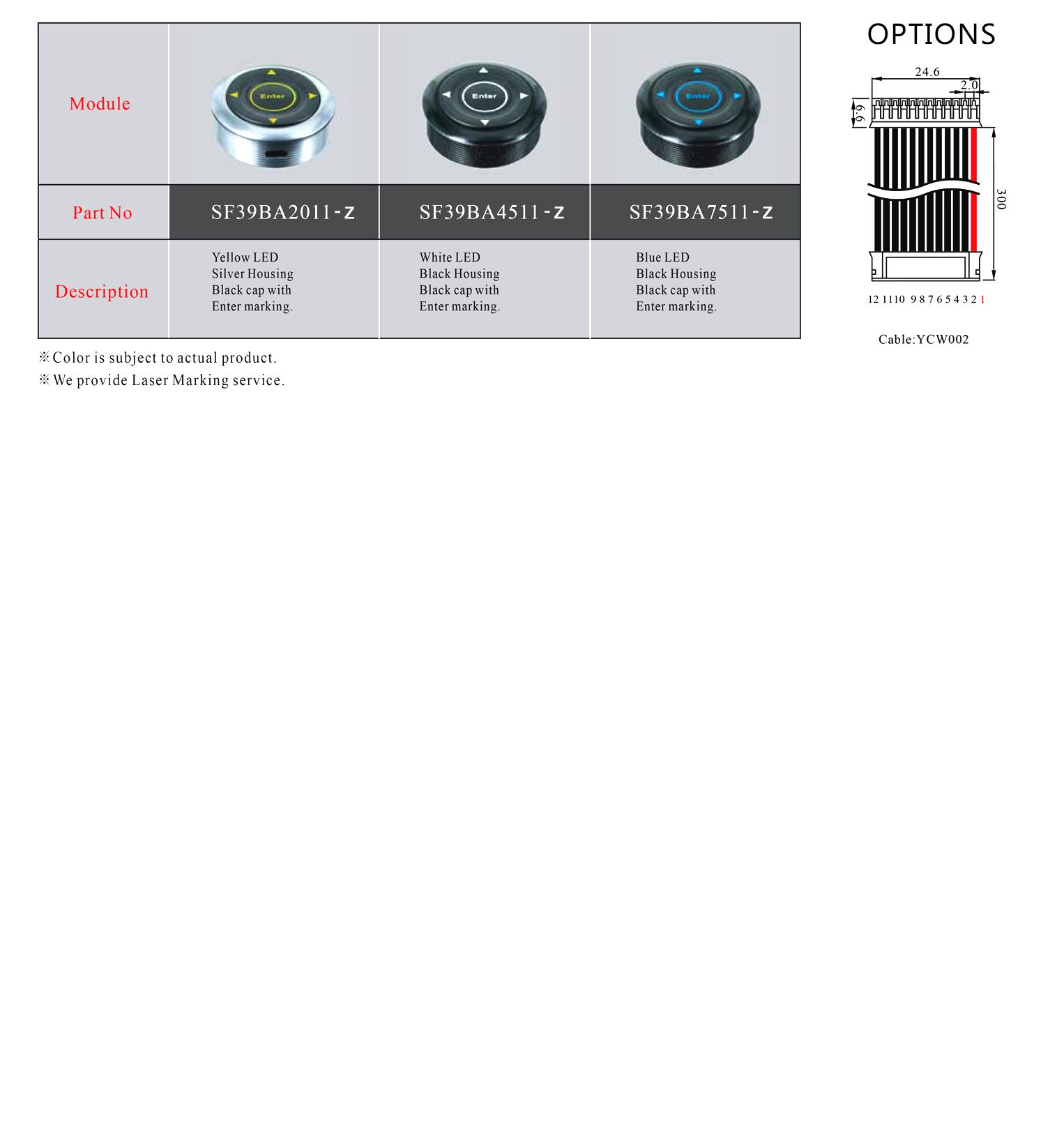

This Navigation Switch features 5 Key Navigation Switches and LED illumination. The metal housing of the switch is available in silver or black, and custom markings are also available.
Key Features:
| Product Series | |
|---|---|
| Configuration | |
| Function | |
| Cap Dimensions (mm) | |
| Illumination | |
| IP Rating | |
| Product Material Options |
|

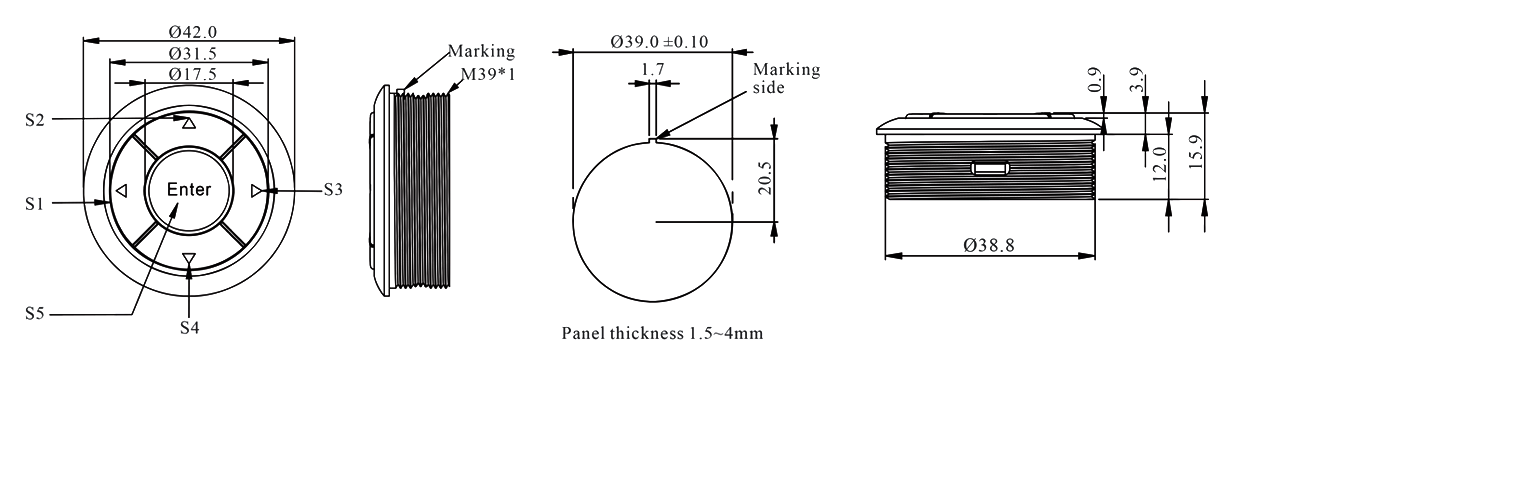

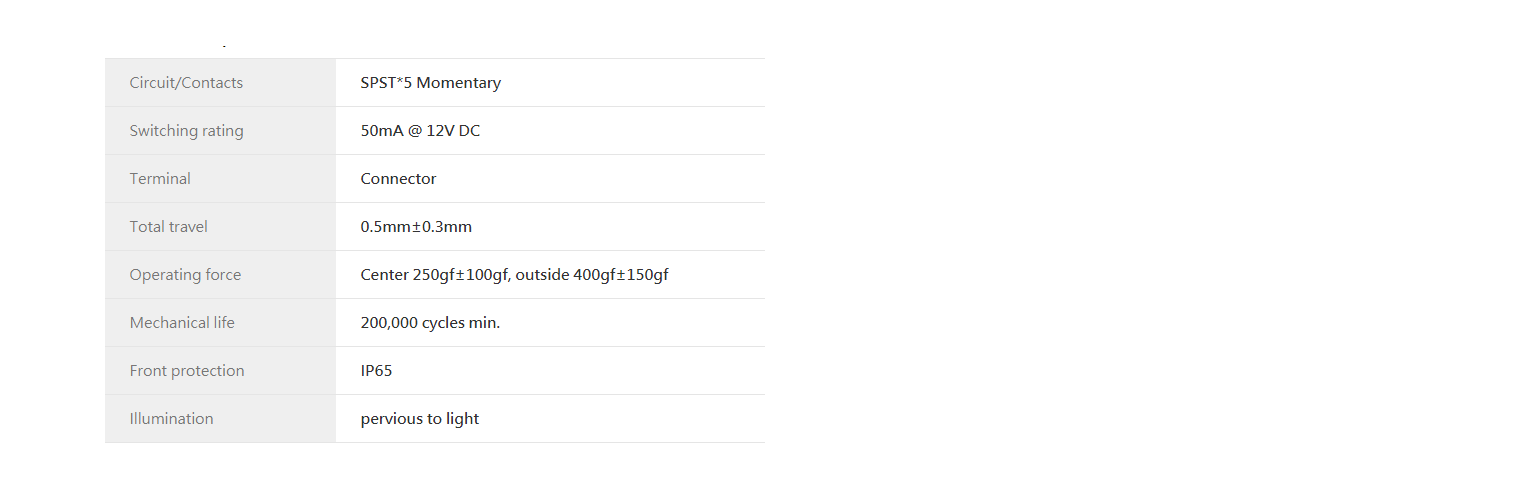

SF39BA-Z 5 way switch Series Specification
|
|

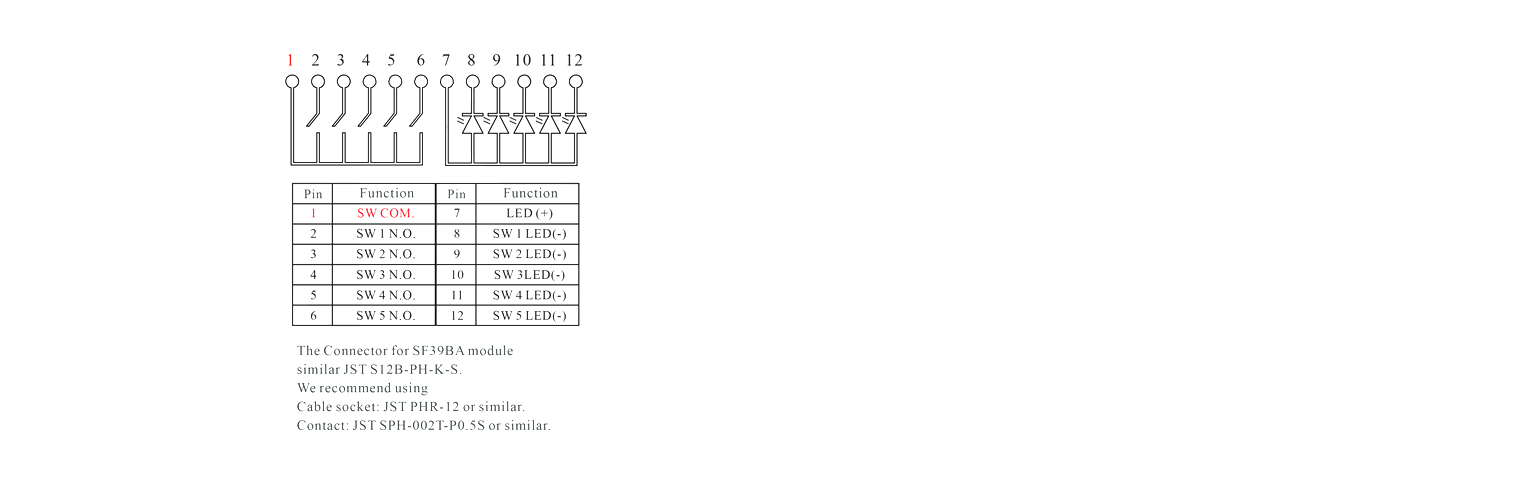

| Circuit | SPST (switch element) |
| Current rating | 50mA @ 12VDC |
| Contact resistance | 500mOhm max.(initial) |
| Insulation resistance | 100MOhm min |
| Operating force | 400gf + 150gf (S1~4)
250gf + 100gf (S5) |
| Total travel | 0.5mm + 0.3mm |
| Mechanical life | 200,000 cycles min |
| Operating temperature | -25deg~+60deg |
| Solder specifications | 260 deg for 3 seconds |
|

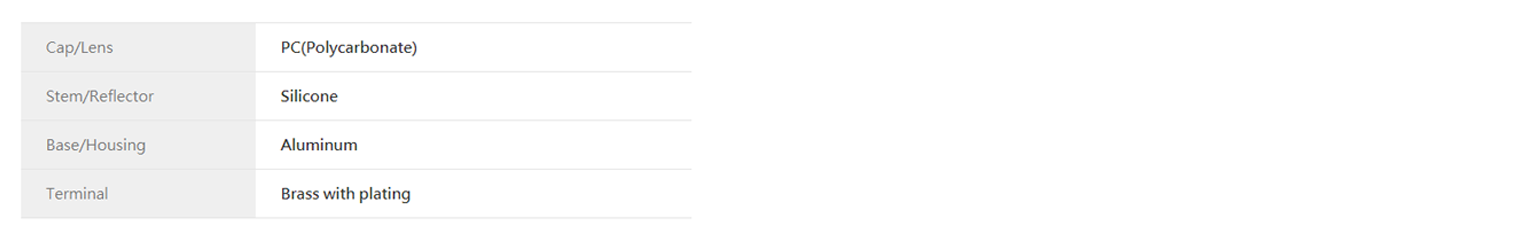

SF39BA-Z 5 way switch Series Materials
|
|
| Housing | Aluminium |
| Cap | Polycarbonate (PC) |
| Nuts | Polyamide (PA) |
| Base | Polyamide (PA) |
| Washer | NBR |
| SUS washer | SUS |
