RJS1N1S-19-BUZZ.4

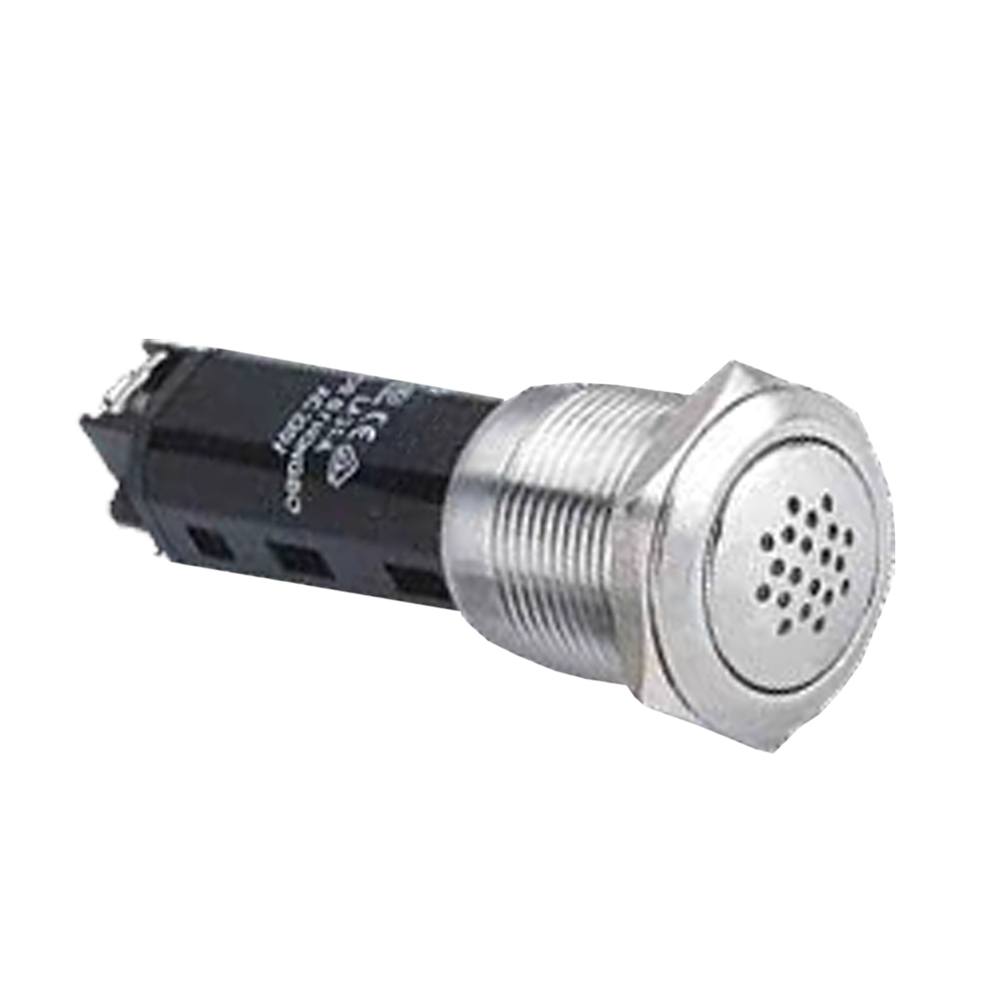

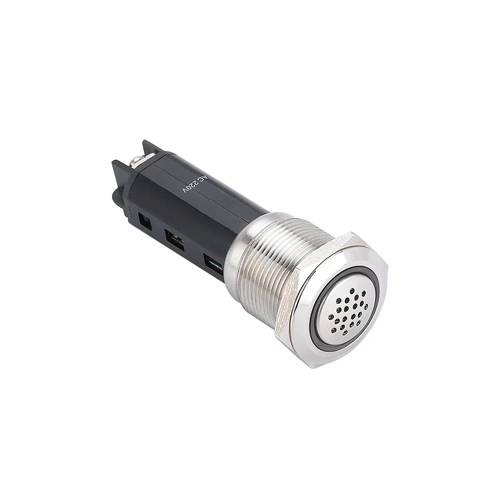

This 19mm Metal Panel Mount Buzzer has an IP40 rating and is non-illuminated. It is stainless steel with a flicker, continuous or incontinuous buzzer sound.

Key Features:

  • Ø 19mm panel cut out
  • Non-illuminated
  • Stainless steel
  • IP40 rated
  • 12v/24V
  • Flicker buzz/continuous buzz/incontinuous buzz*
Function

Illumination

Terminal Options

IP Rating

Product Series

Panel Cut-Out Diameter

Sound Intensity

≥85dB

Mounting Hole Diameter: Φ19mm
Sound Type: Continuous Sound(M) / Discontinuous
Sound (JM) Supply Voltage DC12V / DC24V
Rated Current ≤30mA
Buzzer Volume: ≥85dB(at 0.1m distance) / ≥75dB(at 1m distance)
Body Material: Stainless Steel
IP Rating: IP40, IK04

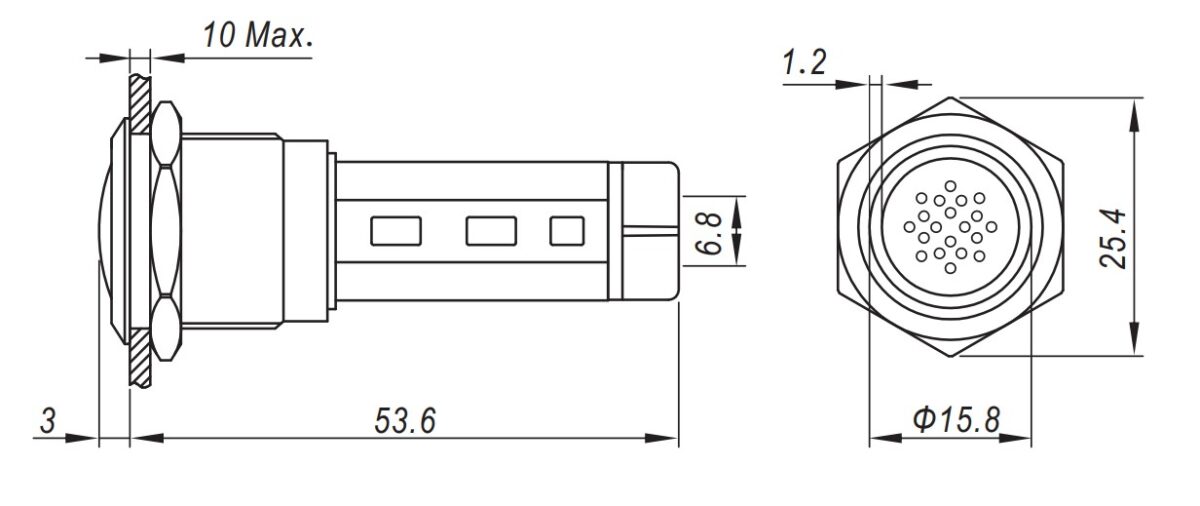

Drawing for RJS1N1S Buzzer switch, rjs electronics ltd
