RJS107-16L(A)-F-C5~67J

16mm Panel mount, push button switches, metal switches, anti-vandal push button switches available with LED illumination options. Ring, dot, power symbol or custom etching or stamping available. Push button switch available as flat head, high head or ball head switch. Or select for non-illuminated metal switch. Solder lug or screw terminals, all push button switches are IP rated and available with connectors and custom wiring options. Custom switch finishes from brushed steel, anodised black, brass, polished brass and coloured metals. Choose from momentary or latching functions, speak to our sales team direct.

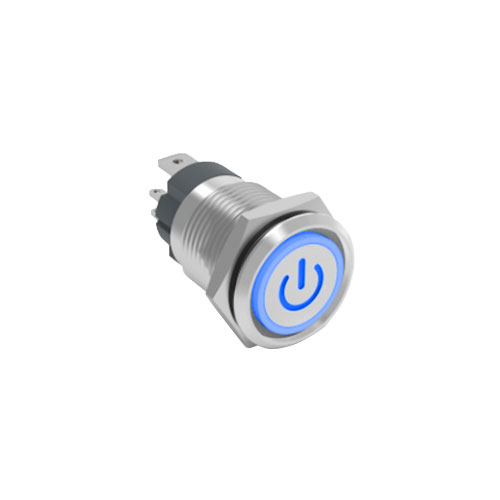

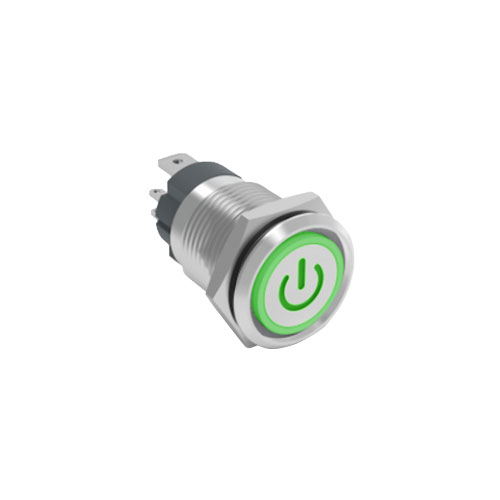

High current Ø16mm Anti vandal switch with power symbol & ring LED illumination. Our High Current Switches are now available at ratings of 12V/20A & 24V/15A resistive load.

Key Features:

  • Ø16mm Panel cut out
  • Momentary / Latching
  • Power & Ring LED illuminated
  • RGB LED available
  • IP67 rated (from the front)
  • High current switch

Applications:

  • Automotive
  • Boat building & Marine
  • Security
  • Door entry
  • Medical
SKU: 10745 Categories: , , , , , , , ,
PDF
Product Series

Illumination

,

IP Rating

Function

, , ,

Panel Cut-Out Diameter

Product Material Options

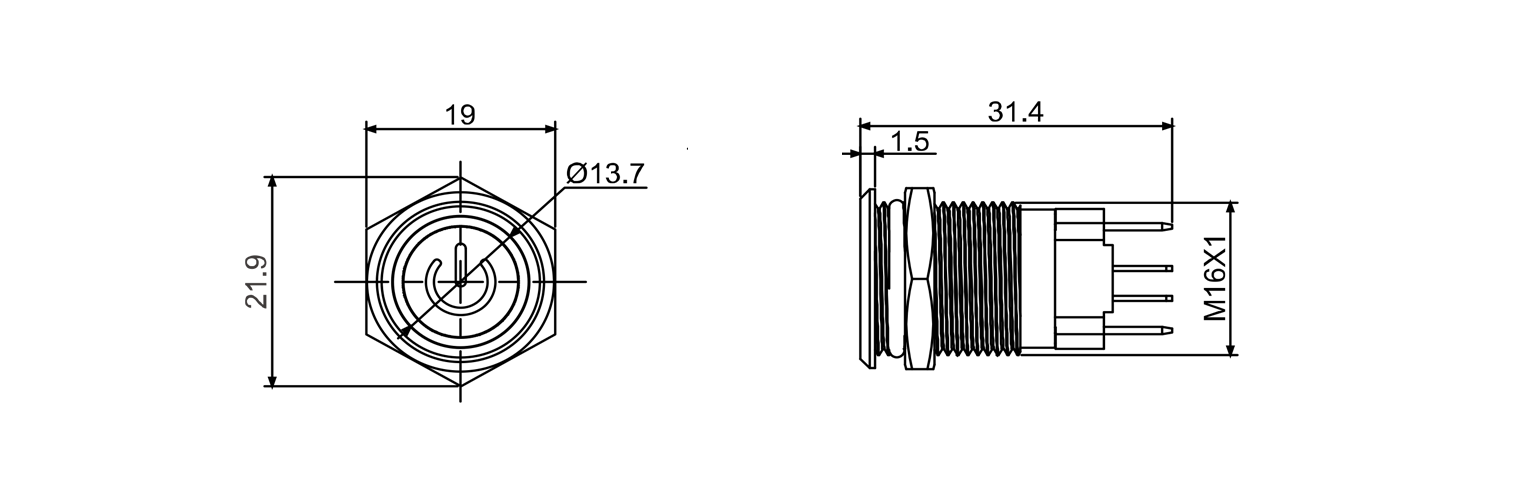

Drawing

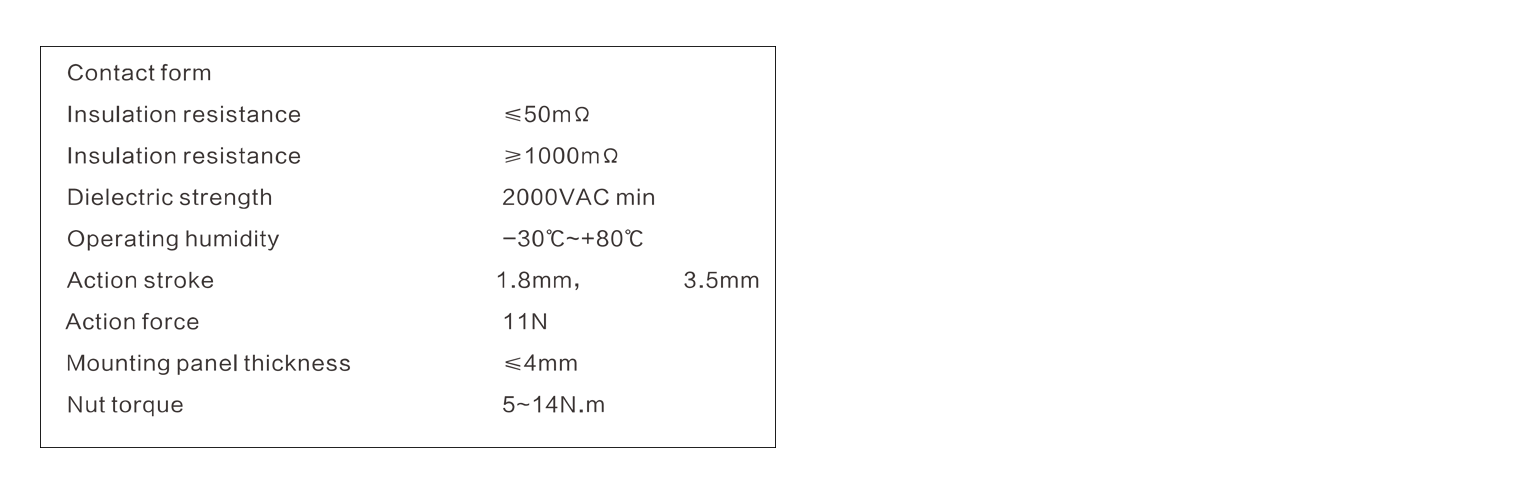

Mechanical & Electrical Specs

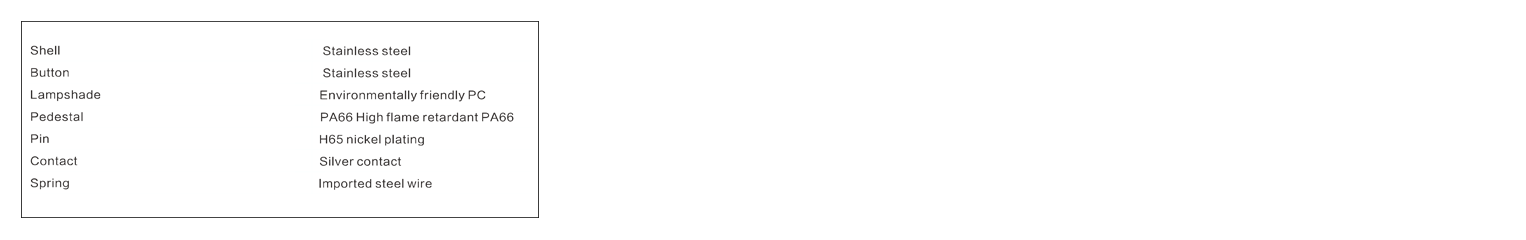

Materials

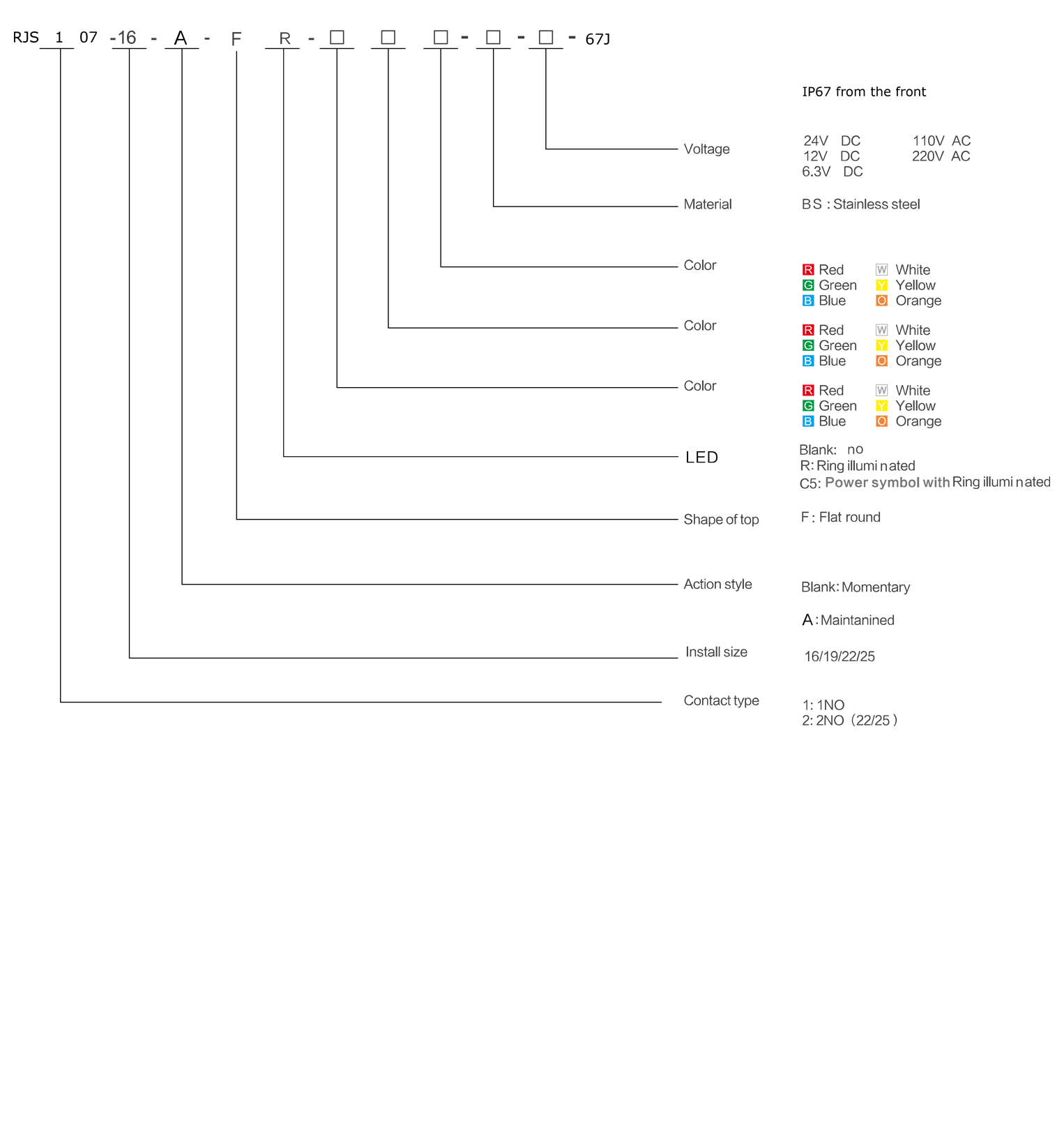

How to order
