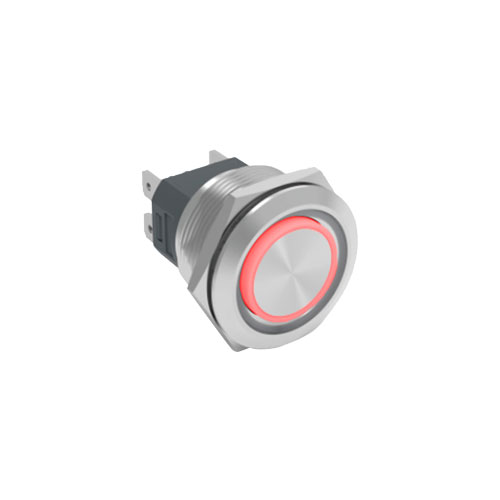

High current Ø25mm Anti vandal switch with ring LED illumination. Our High Current Switches are now available at ratings of 12V/20A & 24V/15A resistive load.
Key Features:
- Ø 25mm Panel cut out
- Momentary / Latching
- Ring LED illuminated
- IP67 rated (from the front)
- High current switch
Applications
- Automotive
- Boat building & Marine
- Security
- Door entry
- Medical
SKU: 10722
Categories: 25mm, Automotive, Boat Building & Marine, Control Panels & Automation, Door Entry / Security, High Current Switches, Illuminated Anti-Vandal Switches, Illuminated Switches, Metal Pushbutton Switches, Panel Mount, Panel Mount Illuminated Switches, Pushbutton Switches, RGB Metal Switches

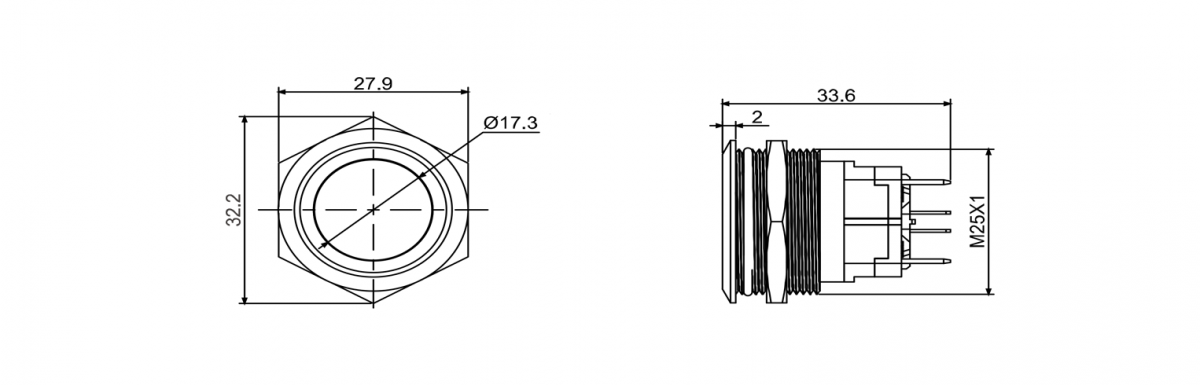

Drawing

Mechanical & Electrical Specs

Materials

How to order

Example Part Numbers
- RJS107-25L(A)-F-R~67J = Single pole
- RJS207-25L(A)-F-R~67J = Double pole
