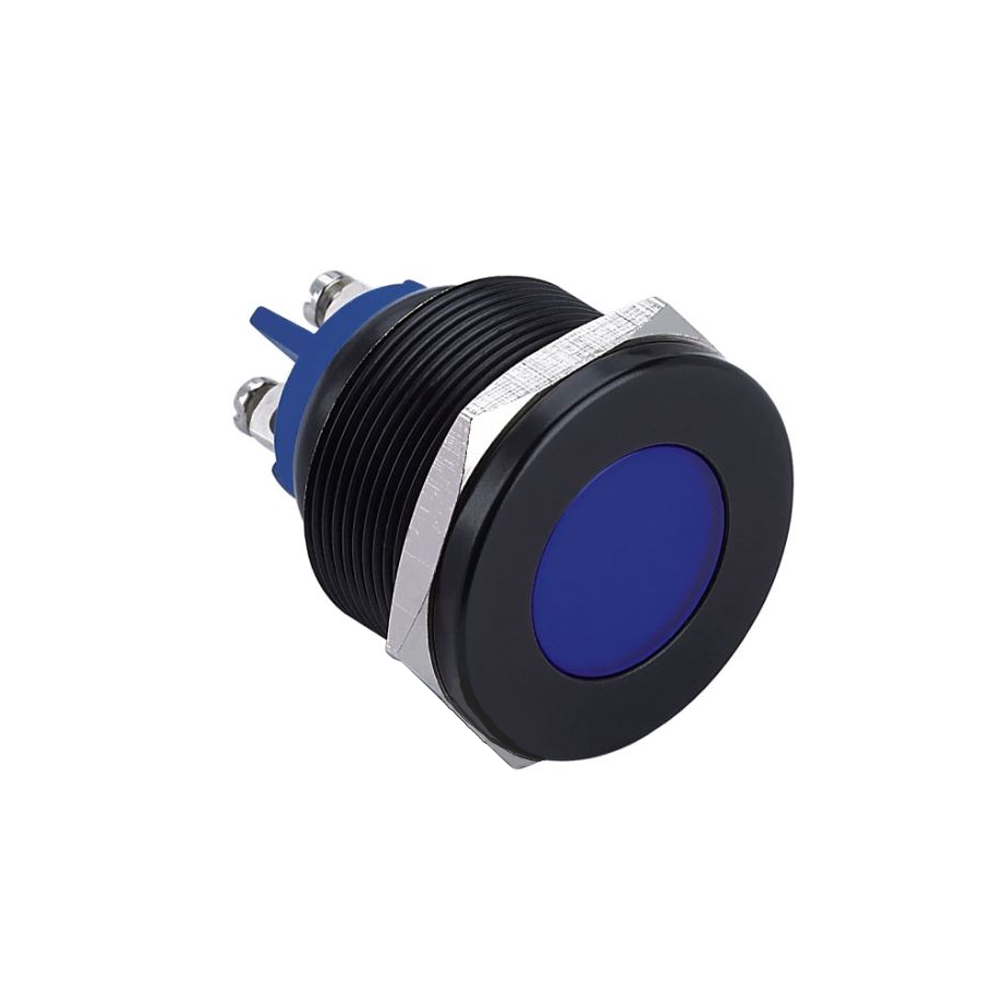

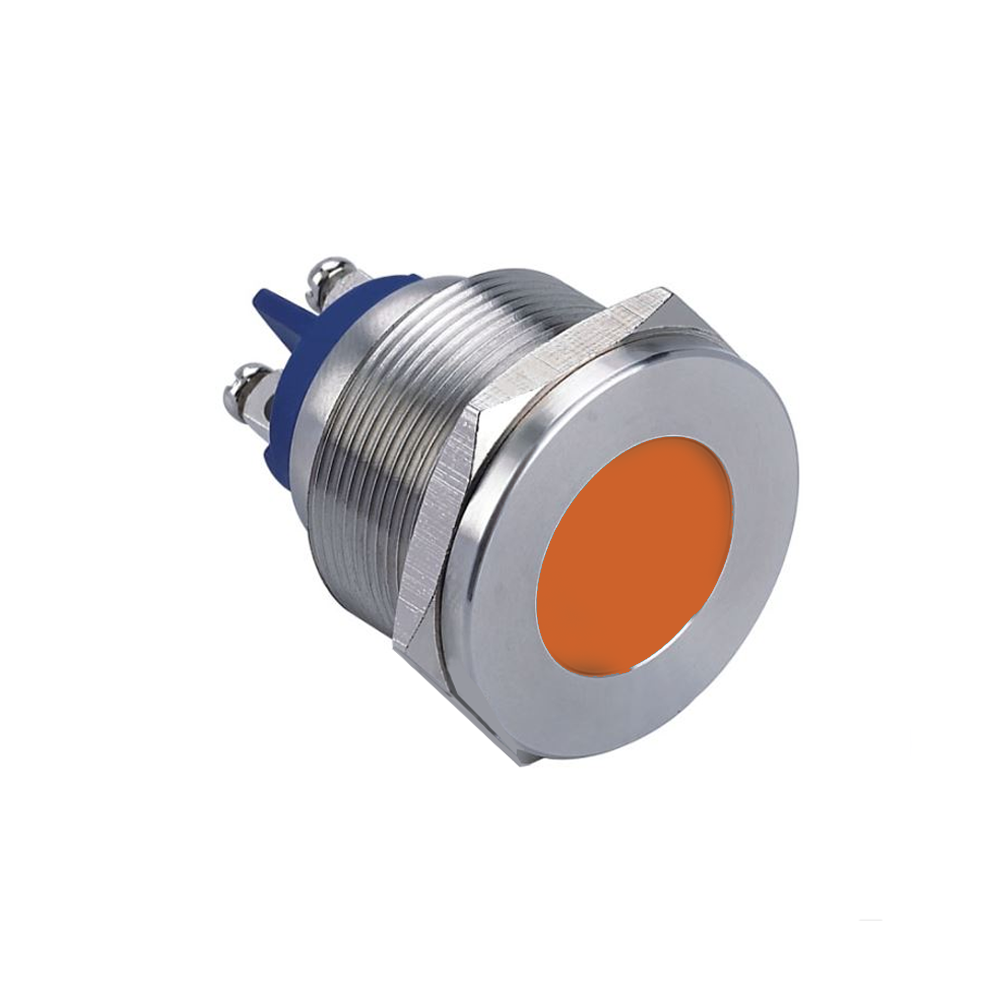

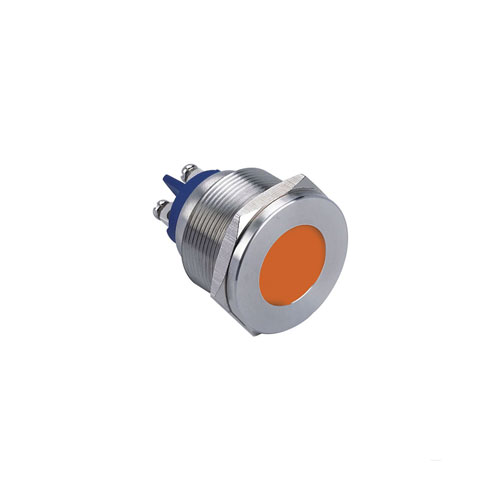

This 25mm Metal LED Indicator features LED illumination and a flat head. It has an IP67 rating (from the front) and a screw-type terminal.
Key Features:
| Function | |
|---|---|
| Product Series | |
| Illumination | |
| Cap / Actuator Shape | |
| IP Rating | |
| Terminal Options | |
| Panel Cut-Out Diameter | |
| Single LED options |
| Lamp bead colour | Red, Green, Yellow, Blue, White |
| Voltage level | 6V, 12V, 24V,110V,220V |

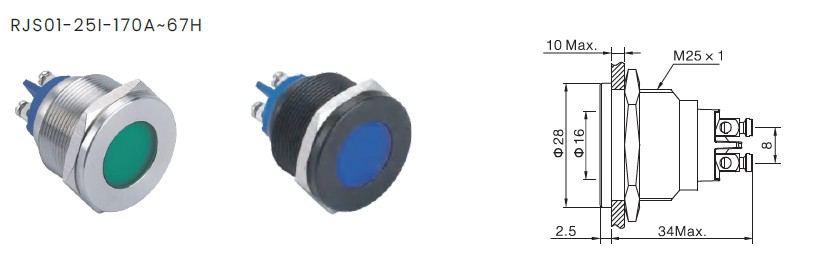

| Installation hole size | Ø25mm |
| Lamp bead type | Bidirectional LED lamp bead (AC/DC universal) |
| Rated Current | 2Ma ~ 20Ma |
| Nut torque | About 1.2N.m (nut) 0.4N.m (screw) |
| Panel Thickness | Note exceeding 10mm |
| Tail configuration | Wiring plug (2.8×0.8mm) / terminal |
| Solder heat resistance | 320°C for 3 seconds |
| Shell material | Black plated brass / stainless steel |
| Lampshade material | Epoxy resin (customisable UV resistant) |
| Base material | PA |
| Protection level | IP67, IK06 (flat circular only) |
