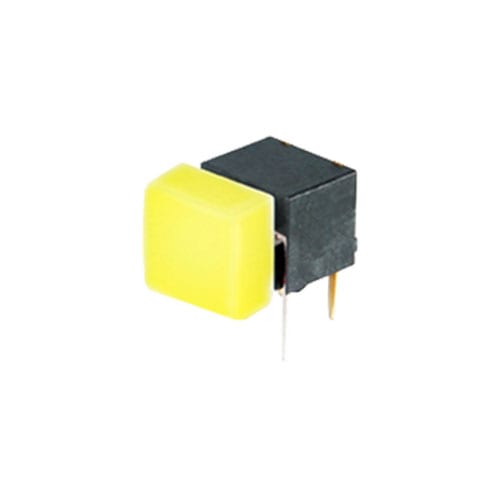

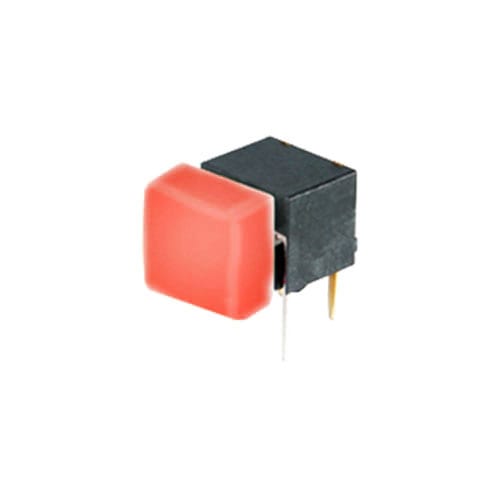

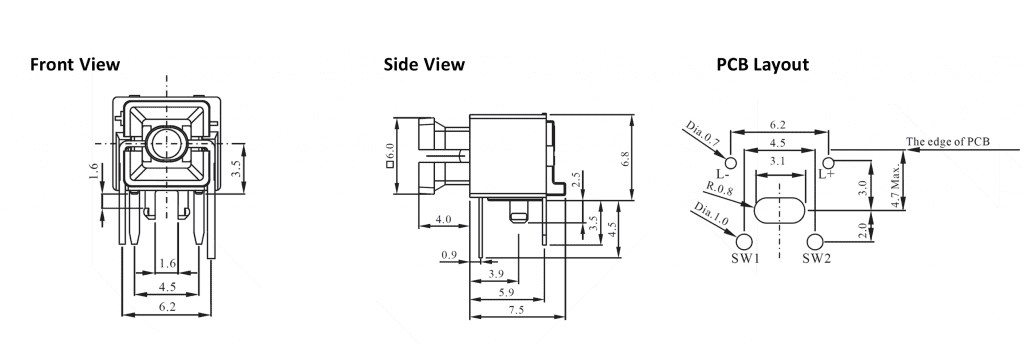

PCB Push Button switch

Key Features:

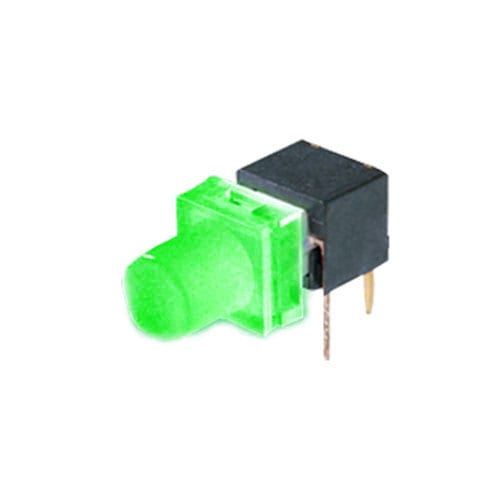

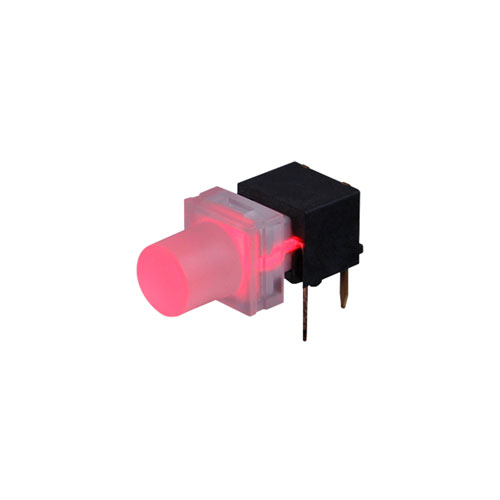

LED illuminated push button switch
Momentary function
Single/bi-colour LED illumination
Right angle mount
SMD version
Tactile switch

Applications

Audio & Visual
Broadcast
Commercial applications
Domestic appliances

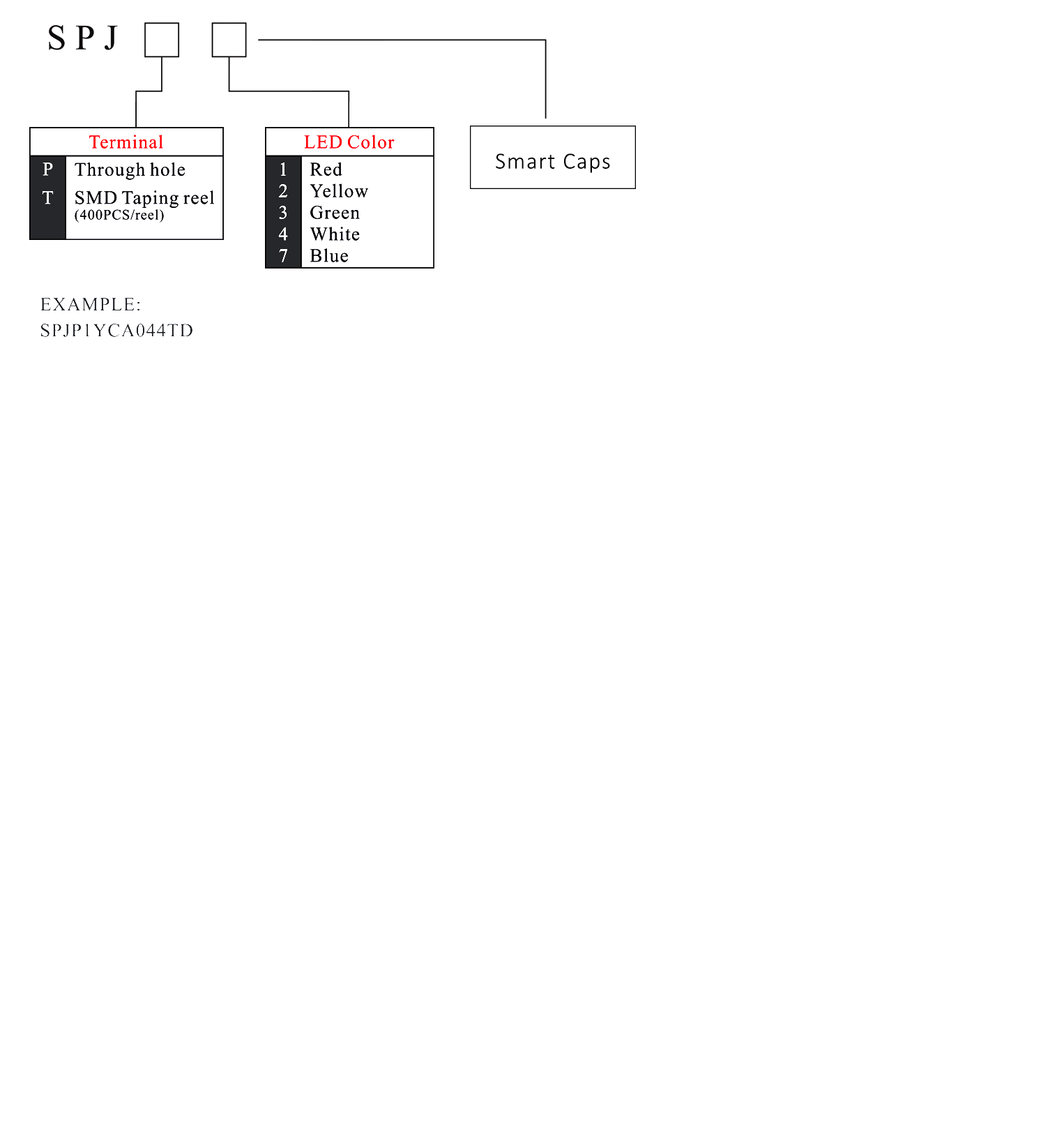

Product Series	SPJ
Configuration	1NO (SPST) [push to make]
Function	Push Button Switch, Tact Switch
Terminal Options	PCB Terminals (THT)
Illumination	Full Illumination
Orientation	Right Angle (Horizontal)
Multi-Colour LED Options	Bi-colour
Single LED options	Blue, Green, Red, White, Yellow

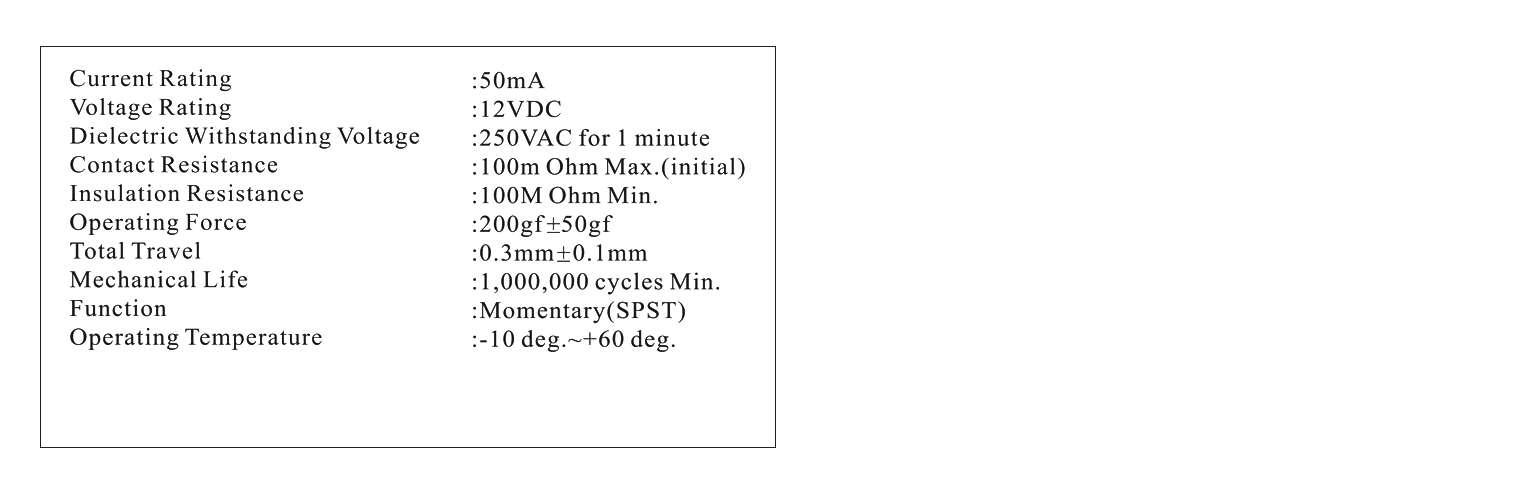

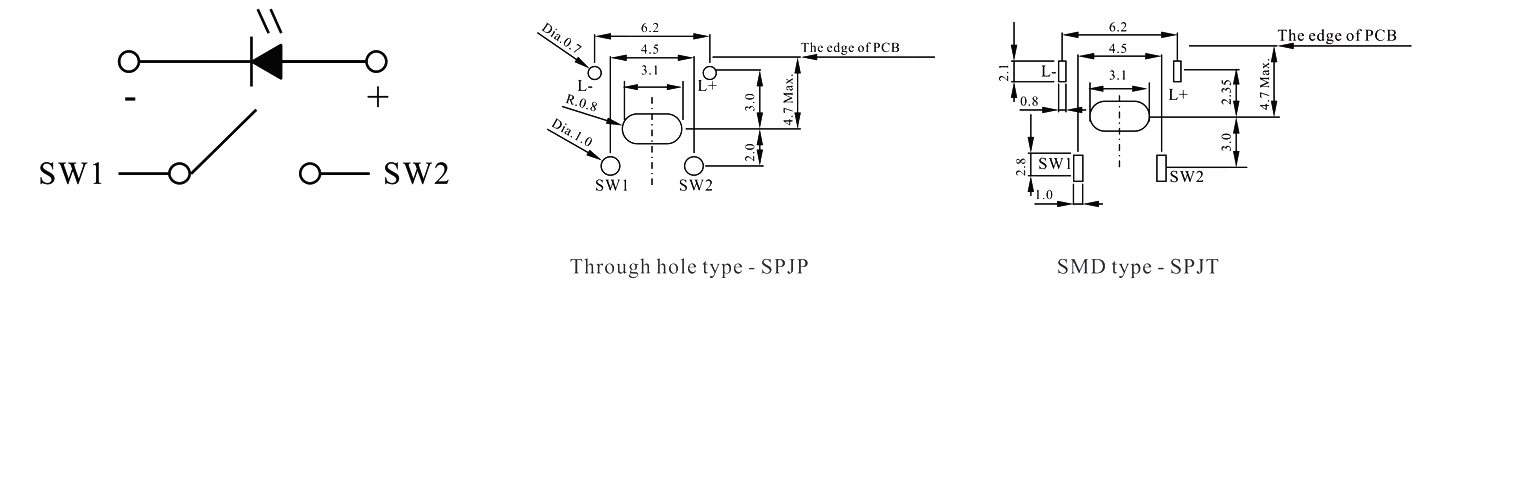

SPJ Series Specification
Current rating	50mA
Voltage rating	12 VDC
Dielectric withstanding voltage	250VAC for 1 minute
Contact resistance	100mOhm max.(initial)
Insulation resistance	100MOhm min
Operating force	200gf + 50gf (S1~4)
Total travel	0.3mm + 0.1mm
Mechanical life	1,000,000 cycles min
Function	Momentary (SPST)
Operating temperature	-10deg~+60deg

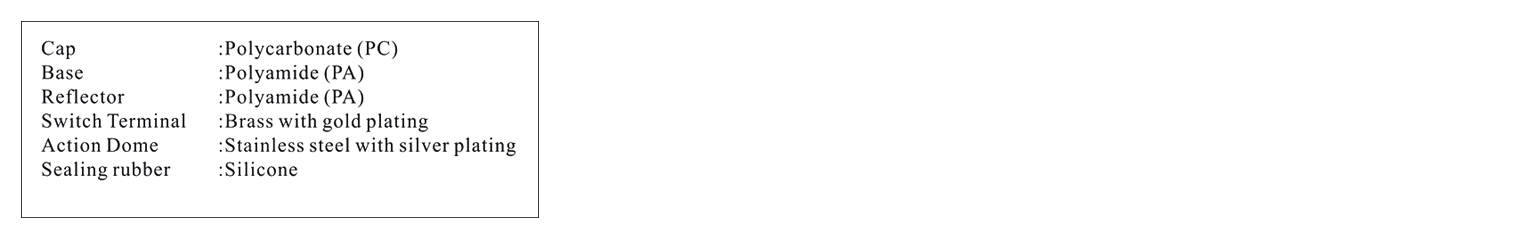

SPJ Series Materials
Cap	Polycarbonate (PC)
Base	Polyamide (PA)
Reflector	Polyamide (PA)
Switch terminal	Brass with gold plating
Action dome	Stainless steel with silver plating
Sealing rubber	Silicone
