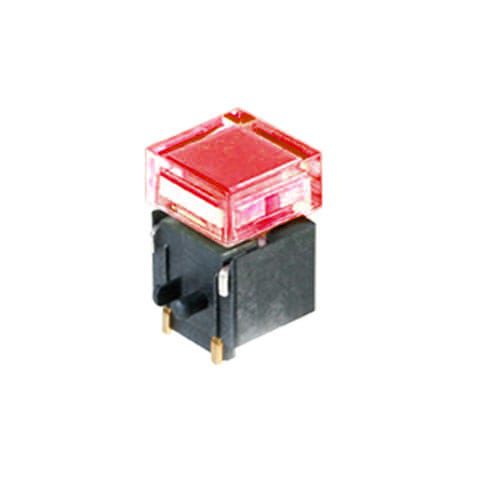

SPJ SMD right angle led illuminated plastic push button tact switch, tactile switch, illuminated tact switch, led switches, RJS Electronics Ltd

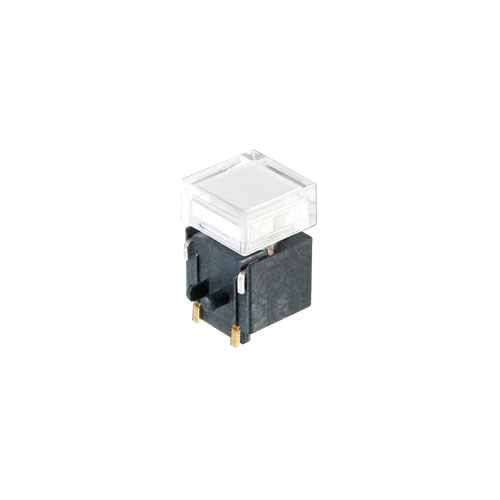

SPJ SMD - Image 2

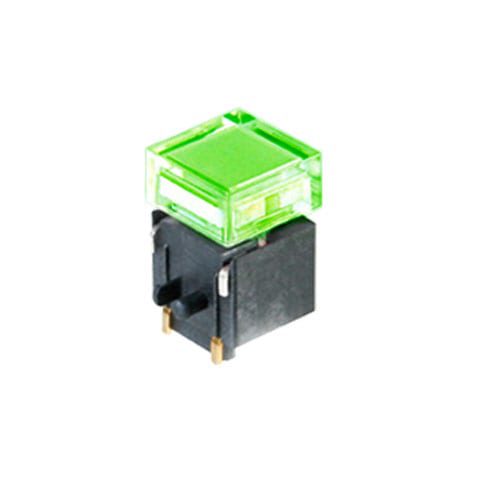

SPJ SMD - Image 3

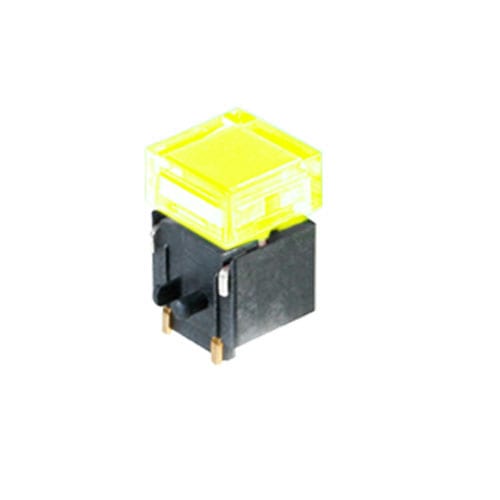

led illuminated tactile push button switch with smd mount, led switches, rjs electronics

SPJ SMD

This PCB Push Button Switch features a momentary function and a tactile click. It has full face LED illumination and is compatible with Smart Caps.

Key Features:

LED illuminated switch
Momentary function
Single/bi-colour LED illumination
SMD type
Through hole version
Compatible with Smart Caps.
Tactile switch

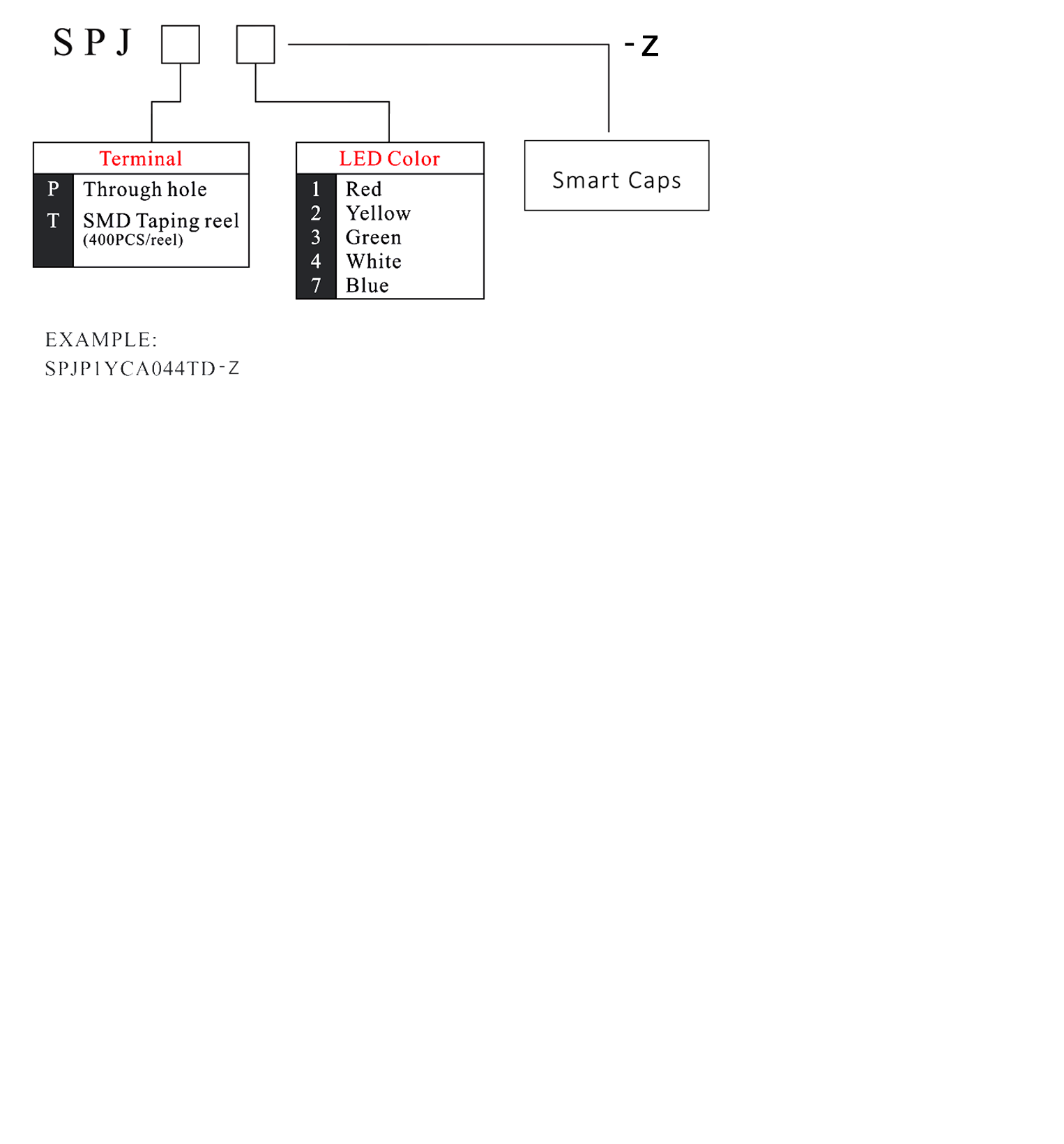

Product Series	SPJ
Function	Push Button Switch, Tact Switch

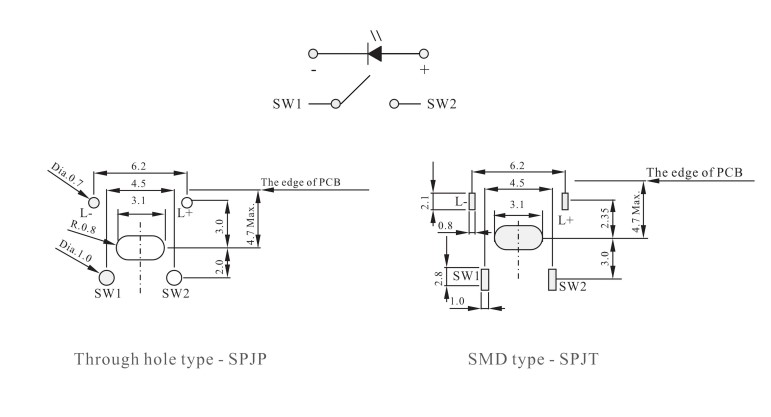

Terminal Options	PCB Terminals (SMT)
Illumination	Full Illumination
Single LED options	Blue, Green, Red, White, Yellow

SPJ Series Specification
Current rating	50mA
Voltage rating	12 VDC
Dielectric withstanding voltage	250VAC for 1 minute
Contact resistance	100mOhm max.(initial)
Insulation resistance	100MOhm min
Operating force	200gf + 50gf (S1~4)
Total travel	0.3mm + 0.1mm
Mechanical life	1,000,000 cycles min
Function	Momentary (SPST)
Operating temperature	-10deg~+60deg

SPJ Series Materials
Cap	Polycarbonate (PC)
Base	Polyamide (PA)
Reflector	Polyamide (PA)
Switch terminal	Brass with gold plating
Action dome	Stainless steel with silver plating
Sealing rubber	Silicone
