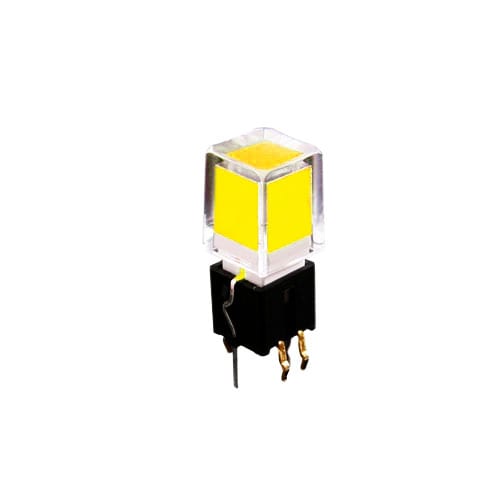

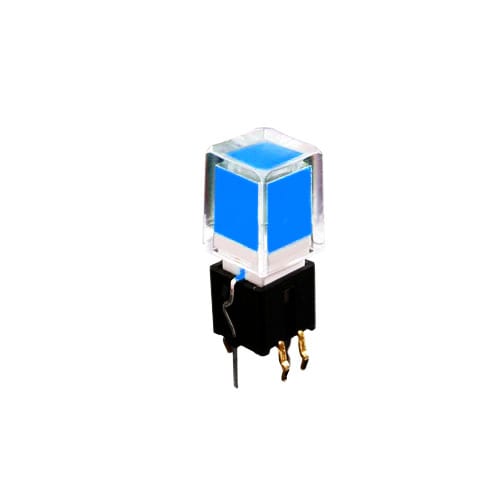

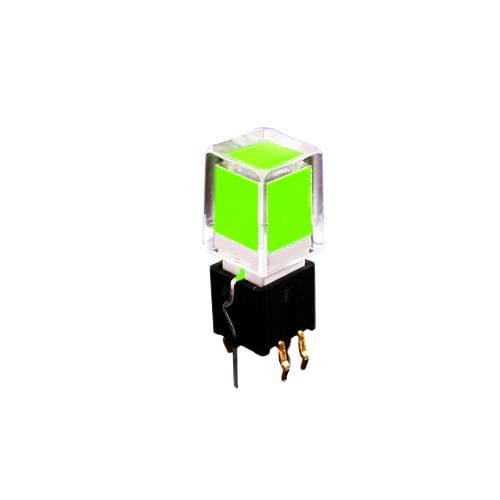

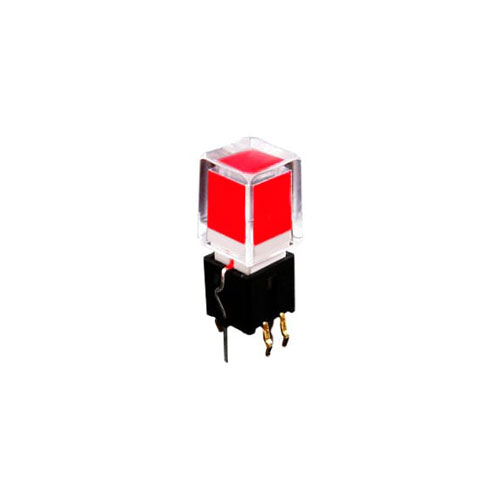

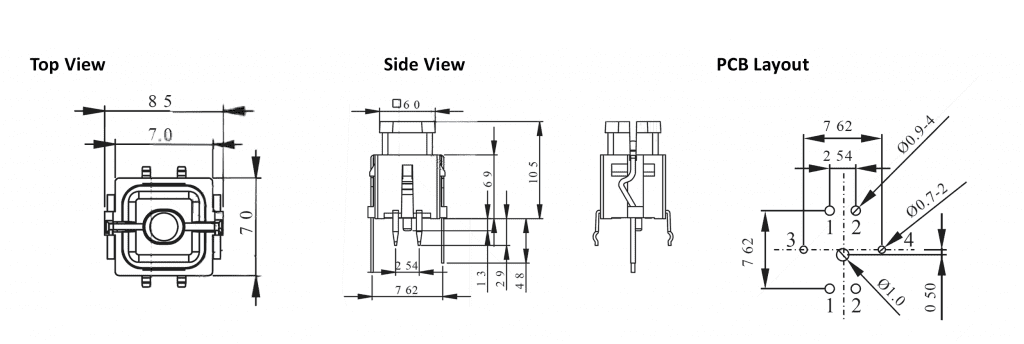

This PCB Push Button Switch features single LED illumination, momentary function and a tactile ‘clicky’ feel. Compatible with Smart Caps.
Key Features:
| Function | |
|---|---|
| Product Series | |
| Configuration | |
| Illumination | |
| Single LED options | |
| Terminal Options | |
| Mechanical Operations |
|
SPH2N-Z Series Specification
|
|
| Current rating | 50mA |
| Voltage rating | 12VDC |
| Dielectric withstanding voltage | 250VAC for 1 minute |
| Contact resistance | 100mOhm max(initial) |
| Insulation resistance | 100Mohm min |
| Mechanical life | 100,000 cycles min |
| Solder specifications | 260 deg for 3 seconds |
| Function | Momentary (SPST) |
| Operating temperature | -10deg~+60deg |
|
SPH2N-Z Series Materials
|
|
| Cap | Polycarbonate (PC)
Polyamide (PA) |
| Diffuser | Polycarbonate (PC) |
| Housing | Acrylonitrile butadine styrene (ABS)
Polyamide (PA) |
| Reflector | Polyoxymethylene (POM) |
| Base | Polyamide (PA) |
| Switching terminal | Brass with gold plating |
