SPDKT

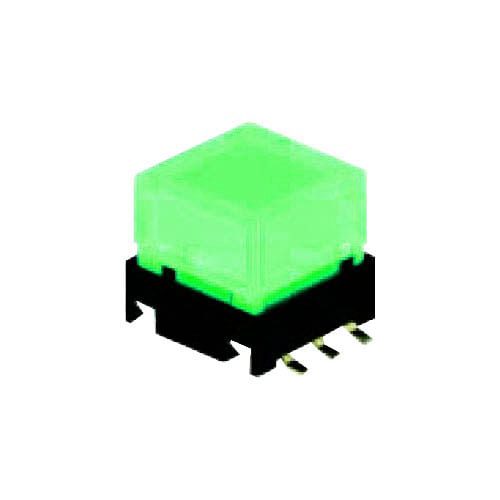

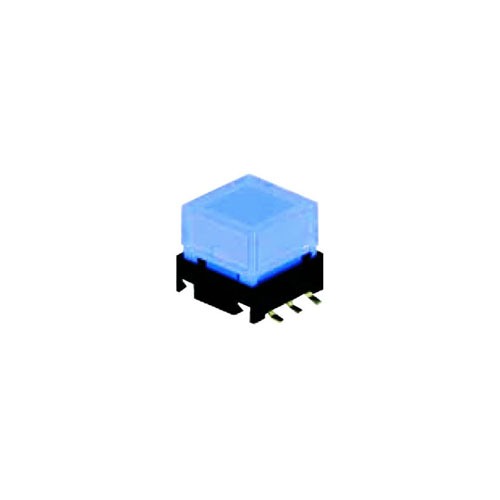

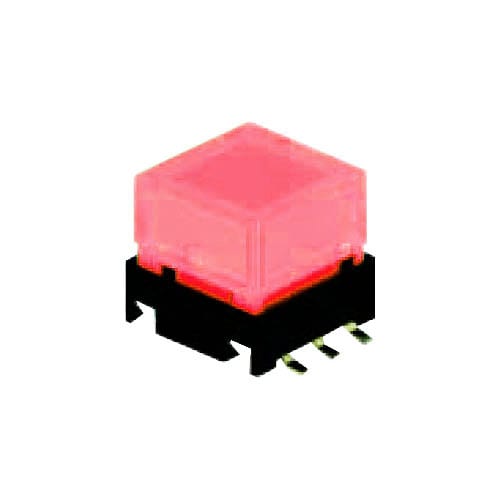

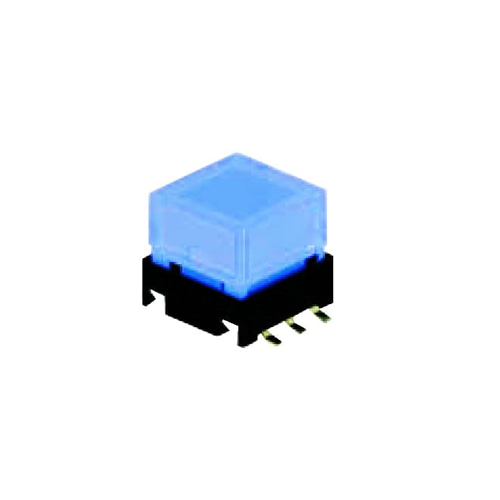

This PCB Push Button Switch has a square cap with a tactile click. It is low profile and features single, bi-colour or RGB LED illumination and a momentary function.

Key Features:

  • LED illuminated switch
  • Momentary function
  • Single/bi-colour or RGB LED illumination
  • 9mm base and 9mm cap
  • Low profile
  • SMD Mounting style
  • Compatible with Smart Caps.
  • Tactile switch

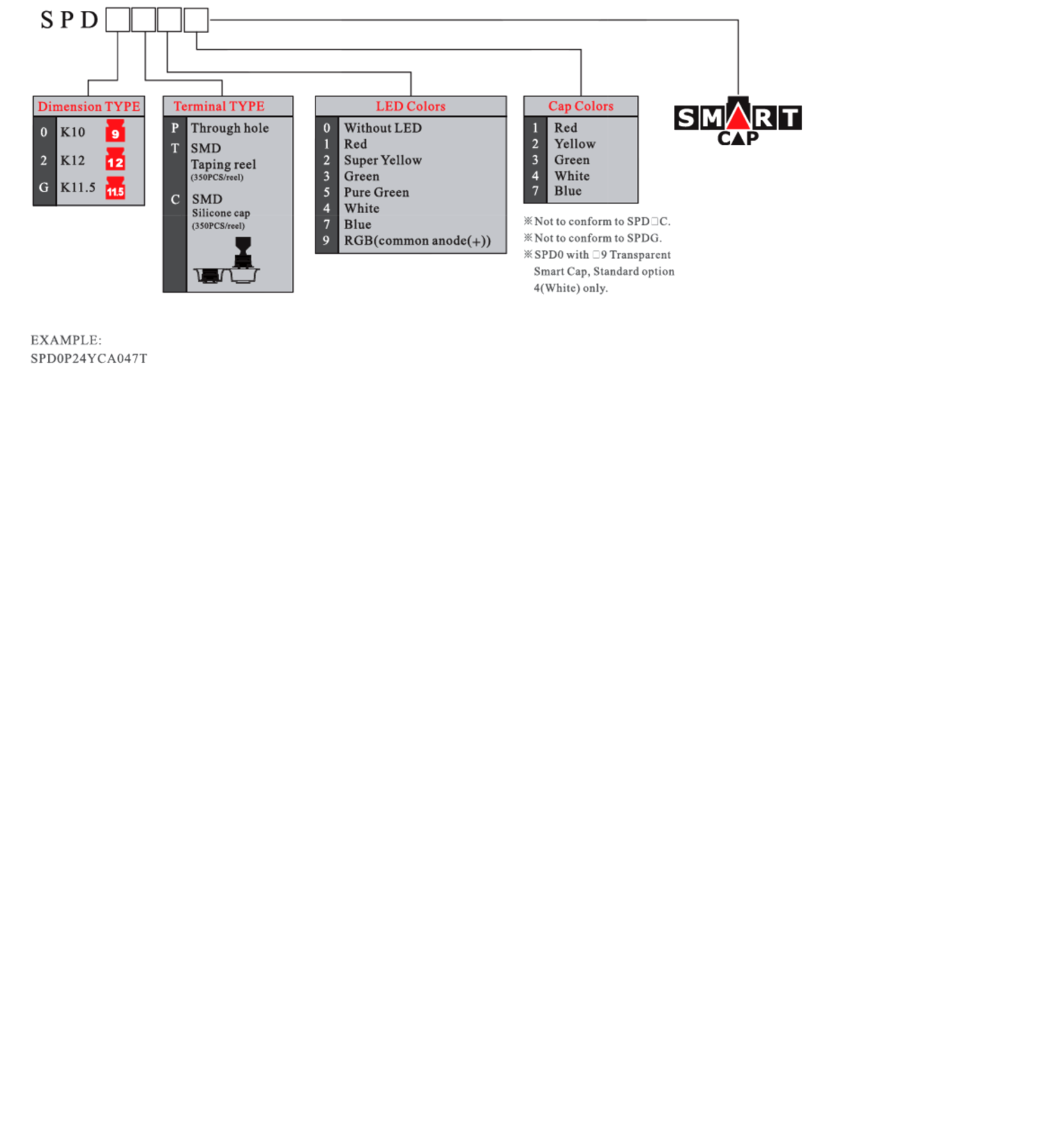

Product Series

Configuration

Single LED options

, , , , ,

Function

,

Multi-Colour LED Options

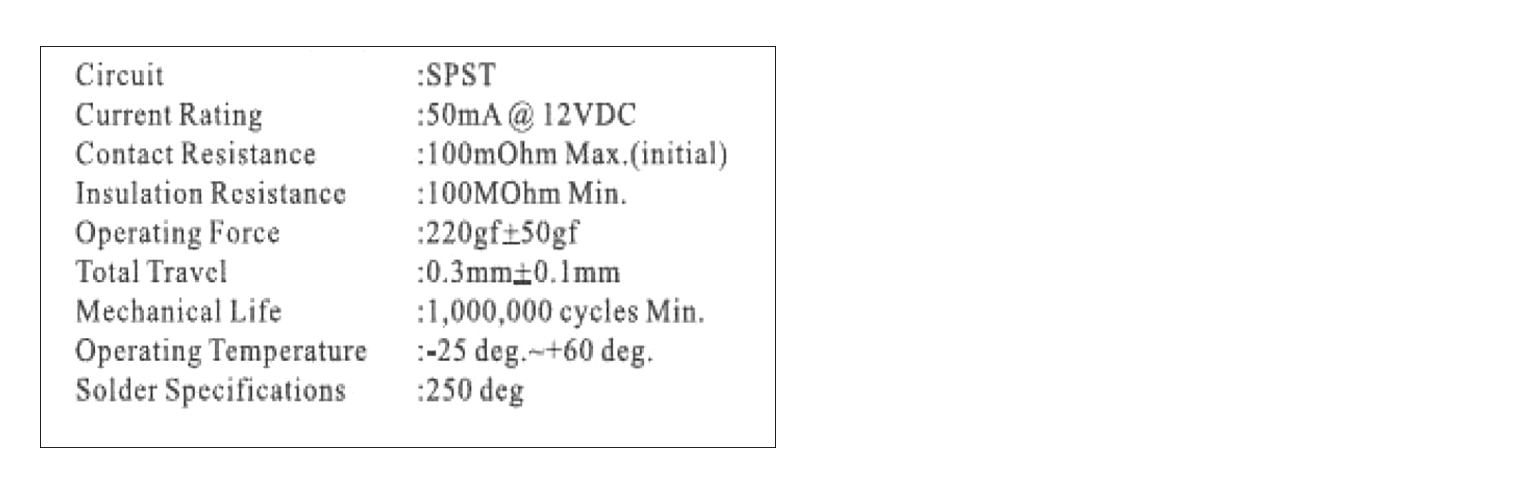

SPD-Z Series Specification

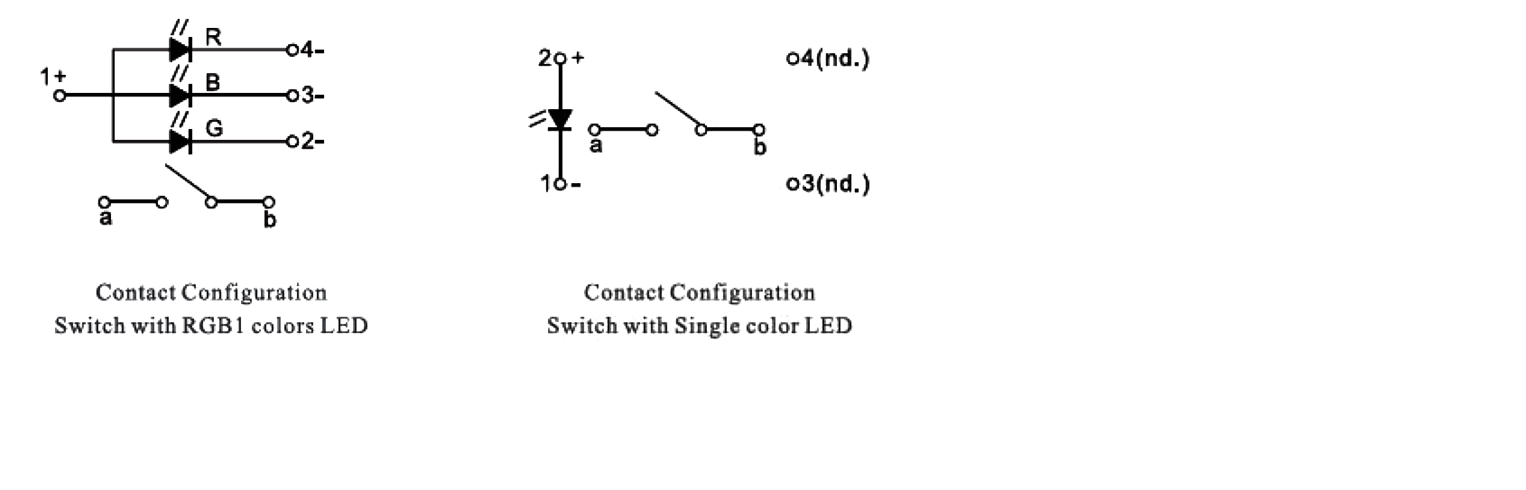

Circuit SPST
Current rating 50mA @ 12VDC
Contact resistance 100mOhm max.(initial)
Insulation resistance 100MOhm min
Operating force 220gf + 50gf (S1~4)
Total travel 0.3mm + 0.1mm
Mechanical life 1,000,000 cycles min
Operating temperature -25deg~+60deg
Solder specifications 250 deg

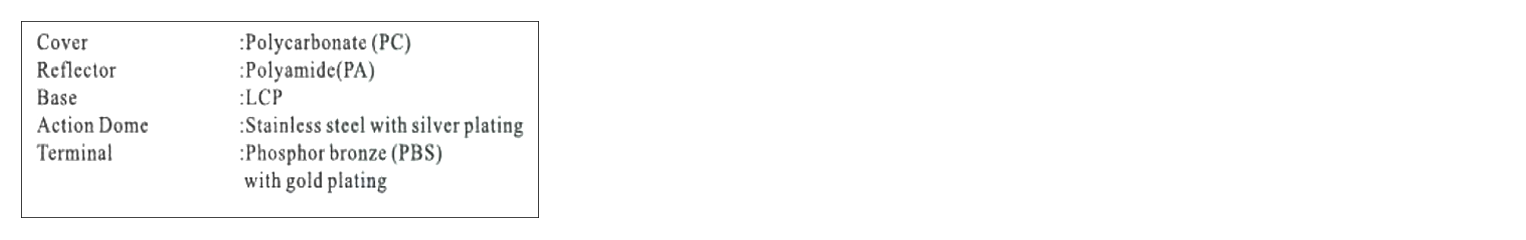

SPD-Z Series Materials



Cover Polycarbonate (PC)
reflector Polyamide (PA)
Base LCP
Action dome Stainless steel with silver plating
Terminal Phosphor bronze (PBS) with gold plating

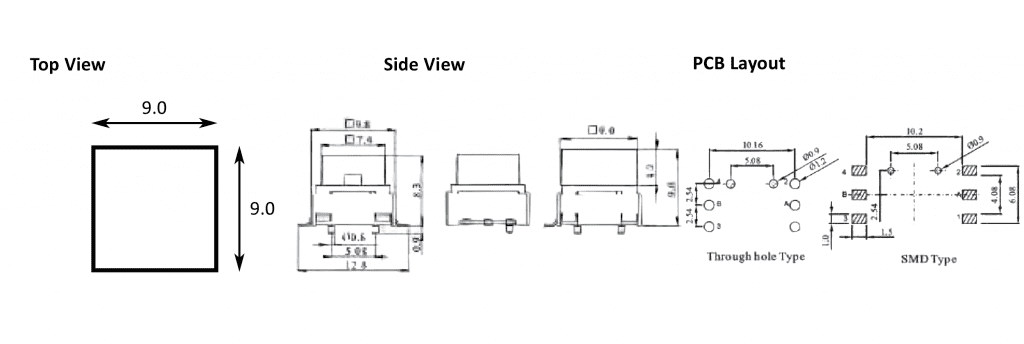

Drawing for spdkt push button switch, rjs electronics ltd
