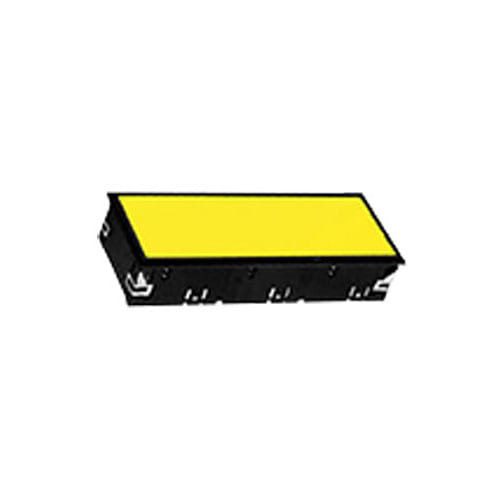

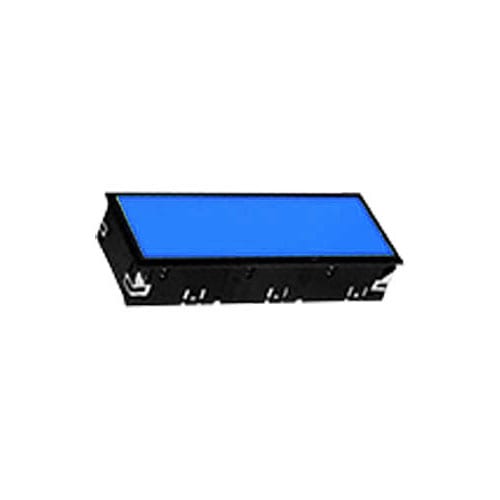

VL4 – LED Indicator Panel

This 35mm x 72mm LED Indicator Panel features full-face LED illumination in a black or grey housing. It can be mounted horizontally or vertically in series with other indicators.

Key Features:

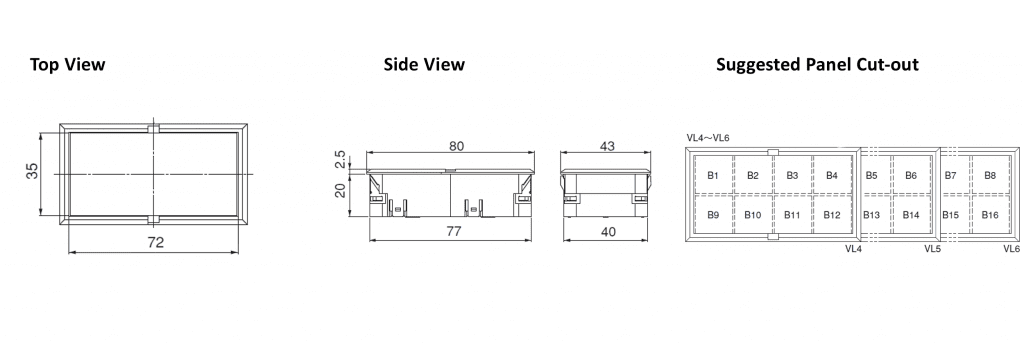

35mm x 72mm rectangular
20mm depth behind panel
Full-face LED illumination
5V/12V/24V
Connector type
Full VL series

Function	LED Indicator
Illumination	Full Illumination
Single LED options	Blue, Green, Red, White, Yellow
Product Series	VL – LED INDICATOR PANEL
Depth (mm)	20mm
Terminal Options	Connector type

Supply Voltage	DC5V, 12V, 24V ± 5%
Consumption Current	220mA max.
Insulation Resistance	More than 100 M Ω min. at DC 500 V
Dielectric Strength	AC 1500 V RMS between terminals and ground 50/60 Hz for 60 sec. at normal ambient temperature and humidity
Peak Reverse Voltage	150V *except DC5V (10V)
Ambient Operating Temperature	-10°C to 40°C
Ambient Operating Humidity	45 to 85% RH max.
Ambient Storage Temperature	-25°C to 65°C
Ambient Storage Humidity	85% RH max.
