LED illuminated indicator panel, LED illuminated pilot light, LED illumination Panel mount. Plastic or metal indicators. Full face, Split-Face, Bi-colour, Dual colour, LED illumination. Automotive, Industrial Controls, Audio & Broadcasting, RJS Electronics Ltd.

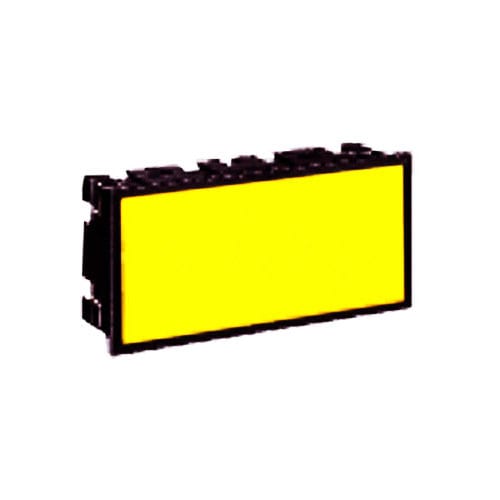

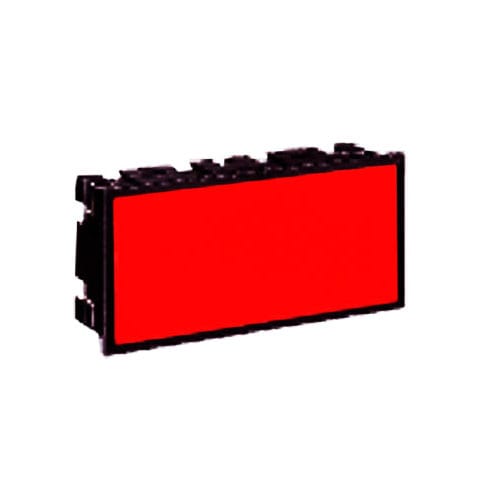

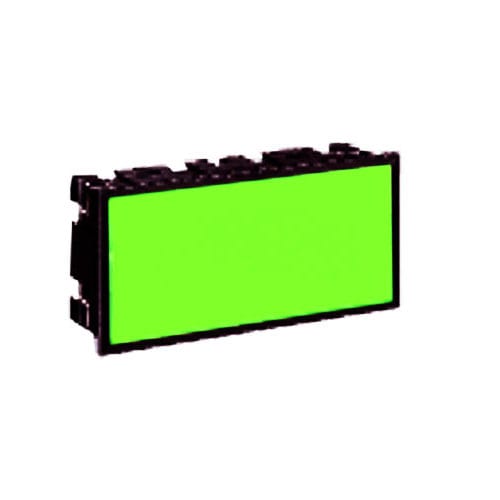

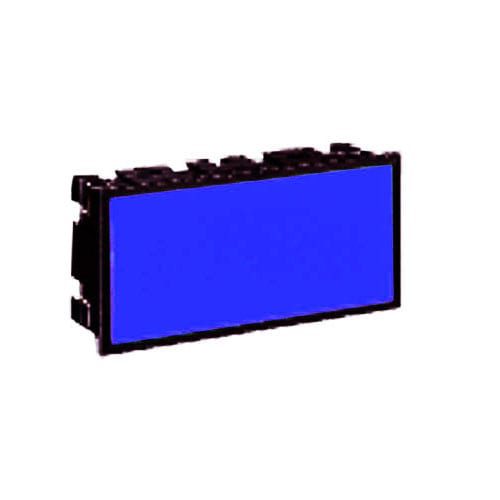

CL Rectangular Flat

Rectangular flat LED Indicator

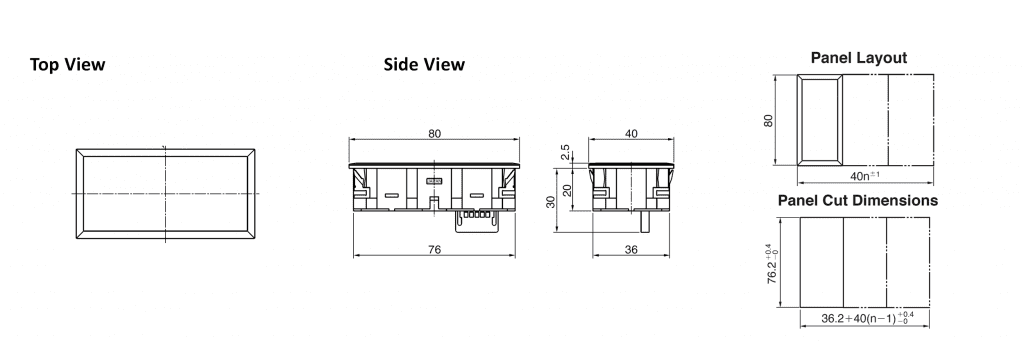

  • 40mm x 80mm x 20mm
  • Plastic
  • Rectangular
  • LED Illuminated
  • Single/Bi-Colour LED illumination options
  • Full face/ Split-face LED illumination display
  • Connector type
  • Full CL series

Application:

  • Home automation
  • Industrial Controls
  • Audio & Broadcasting
  • Automotive
Data Sheet



Function

Illumination

Bezel Shape

Terminal Options

Single LED options

, , , ,

Split Face LED Options

Red/Green/Yellow
3 Colour LED Option

Red/Green/Yellow
Depth (mm)

Product Series

Insulation Resistance

More than 100MΩ at 500V DC
Dielectric Strength

1500V AC RMS between terminals and ground (50/60Hz for 60sec. at normal ambiet temperature and humidity)

CL Series specifications

Insulation resistance More than 100MΩ at 500V DC
Dielectric strength 1500V AC RMS between terminals and ground (50/60Hz for 60sec. at normal ambient temperature and humidity)
Reverse dielectric strength 150V
Ambient temperature -10°C~+40°C
Ambient humidity 45~80% RH
