Bring your project to life.
Bring your project to life.

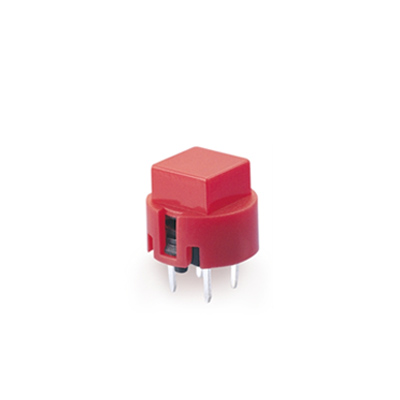

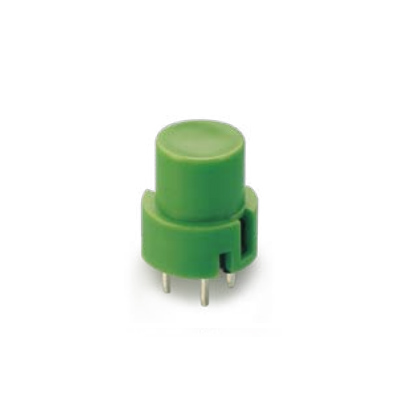

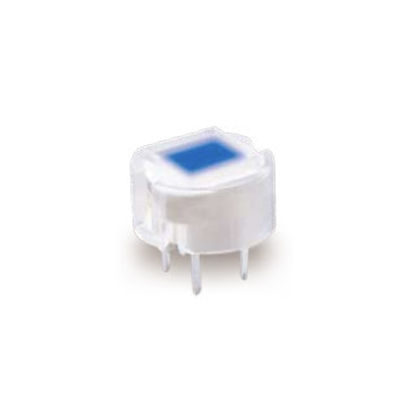

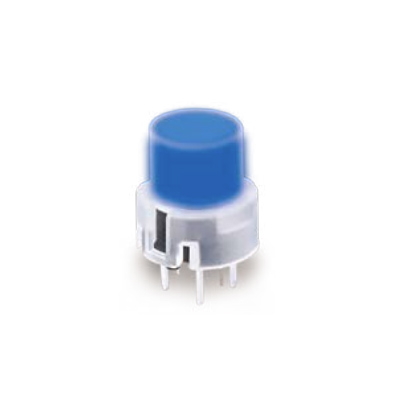

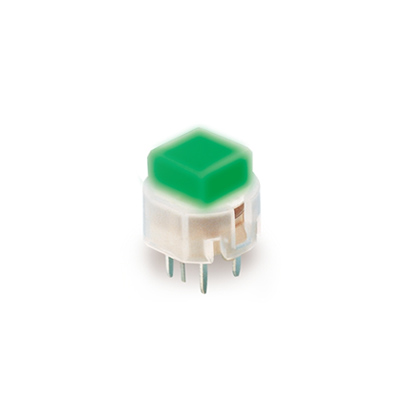

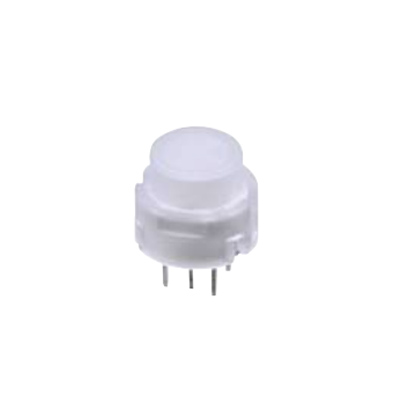

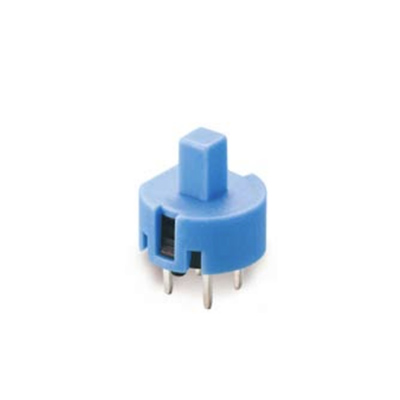

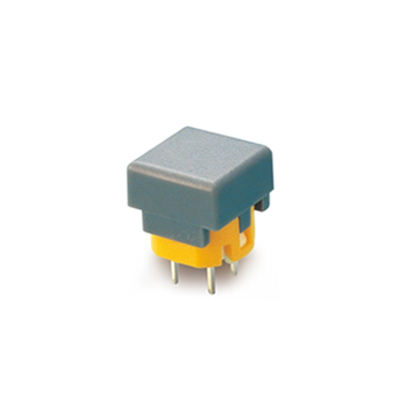

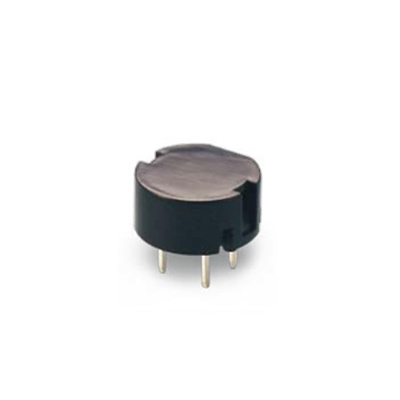

The KS01 Series is a compact PCB Tactile Push Button, designed for reset controls and other digital circuit applications. It offers a long operating life with a wide selection of button styles, LED colours and laser-etched legends.
Key Features:
| Product Series | |
|---|---|
| Function | |
| Illumination | |
| Orientation | |
| Terminal Options | |
| Product Material Options |
| Rating | 10mA 35VDC |
| Insulation Resistance | 100MΩ Min at 250 VDC |
| Dielectric Strength | AC 250V (50/60 Hz for 1 minute) |
| Contact Resistance | 30mΩ Max. (initial) |
| Electrically Life | V:130gf 100,000 Cycles Min
M:250gf 30,000 Cycles Min |
| Ambient Temperature | -20°C~ +60°C |
| Operating Force | V: 130 + 50gf
M: 250 + 50gf |
| Travel | 1.0 + 0.2 mm |
| Color | VR | IF | Recommended Operating Current | VF Nor | VF Max |
| Red | DC 5V | 20mA | 20mA | 1.7V | 2.4V |
| Green | DC 5V | 20mA | 20mA | 1.9V | 2.4V |
| Yellow | DC 5V | 20mA | 20mA | 1.9V | 2.4V |
| Blue | DC 5V | 20mA | 20mA | 3.0V | 3.6V |
| White | DC 5V | 20mA | 20mA | 3.0V | 3.6V |
