RJSPS16B rectangle key lock switch, panel mount keylock switches, RJS Electronics Ltd

RJSPS16B Rectangular

This Rectangular Keylock Switch has solder lug terminals and is IP65 rated (from the front). It can have an SPDT or DPDT configuration.

Key Features:

16mm
Plastic rectangular
IP65 rated (front)
SPDT/DPDT
Solder lug terminals

Additional information

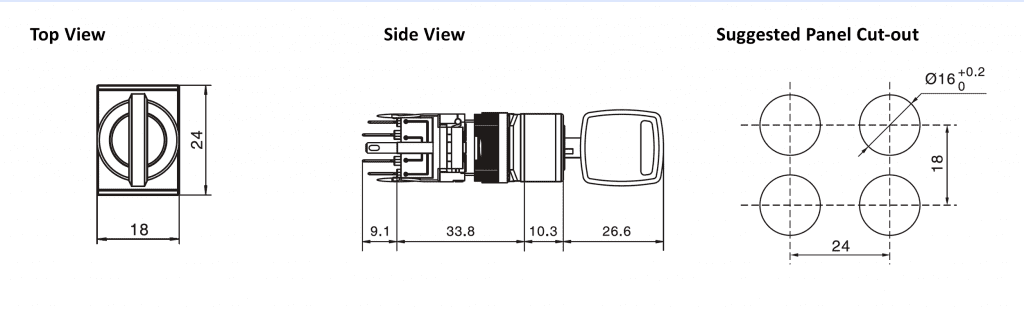

Drawings

Function	Keylock Switch
Product Series	RJSPS16B
Terminal Options	Solder Lug Terminals
Cap / Actuator Shape	Square
IP Rating	IP65 (front)
Mechanical Operations	1,000,000
Electrical Operations	100,000
Diameter (mm)	16.0
Configuration	DPDT, SPDT
