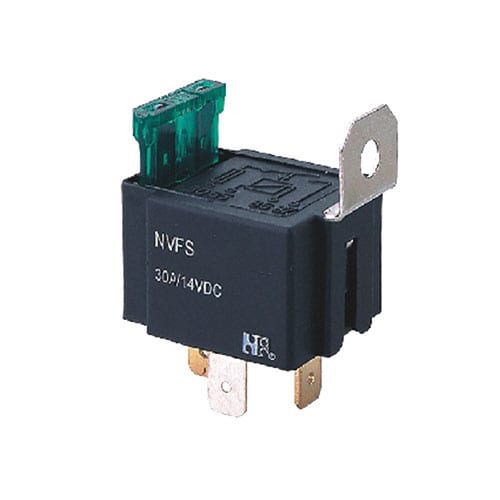

NVF

Relay

• Switching capacity up to 25A.
• PC board mounting and insert mounting available.

Application:

Function	Relay
Contact Arrangement	1A CSPSTNO) , 1B CSPSTNC)
Contact Rating (resistive)	1A: 25A/14VDC,20A/14VDC: 1B: 20A/14VDC, 15A/14VDC
Max. Switching Power	420W
Max. Switching Voltage	75VDC Max. Switching Current:30A
Contact Resistance orV oltaqe drop	,S:20mV(at 1 0A)(B:40mV )
Mechanical Operations	10000000 (10^7)
Electrical Operations	5X10^5, 2X10^5(B)
Sizing (mm)	20.3 X 15.3X22.5
