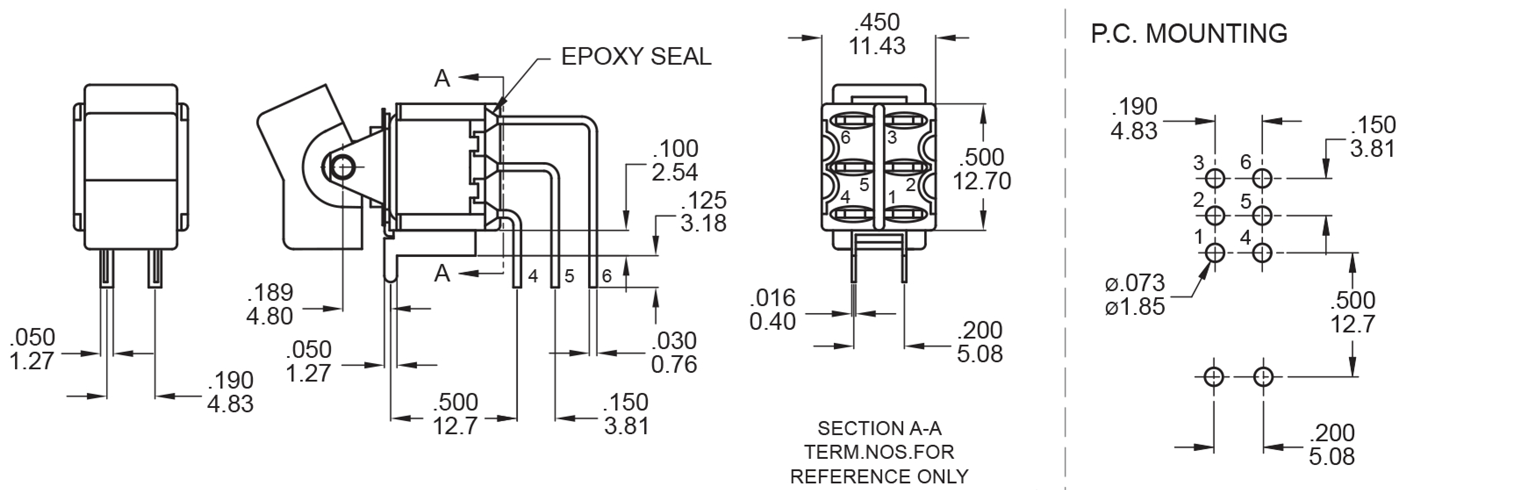

This PCB Rocker Switch features a vertical actuator, with a DPDT configuration and right angle mounting. Momentary or latching function is available, in 2 or 3 positions.
Key Features:
| Function | |
|---|---|
| Illumination | |
| Mechanical Operations | |
| Product Series |
|
Contact Rating |
Dependent upon contact material |
|
Mechanical Life |
40,000 cycles |
|
Contact Resistance |
10 m Ω max. initial @ 2-4VDC 100mA |
|
Insulation Resistance |
1000 m Ω min. |
|
Dielectric Strength |
1000 vrms min. @ sea level |
|
Operating Temperature |
-30°C to 85°C |
