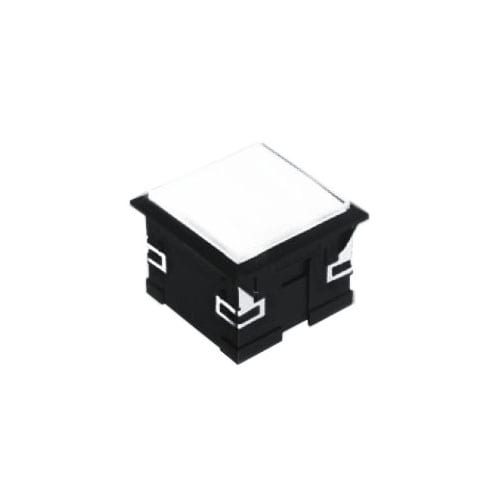

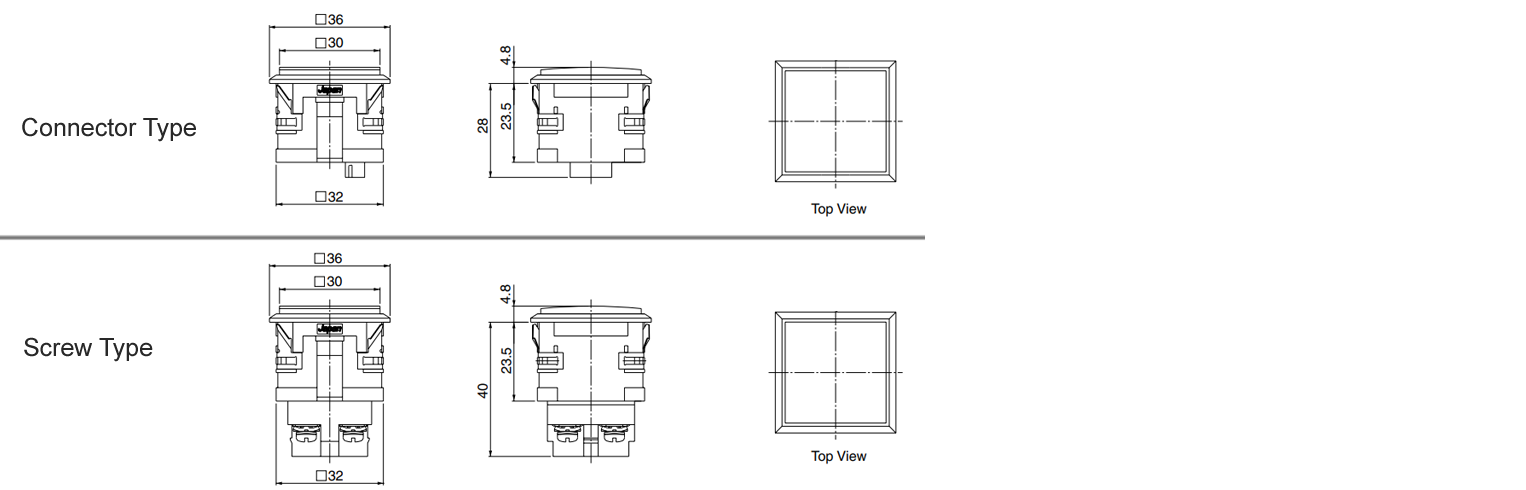

This LED Indicator features a 30mm square cap, and can support single, bi-colour or negative LED illumination in a full-face or split-face style. Choose screw-type or connector-type mounting.
Key Features:
| Function | |
|---|---|
| Bezel Shape | |
| Illumination | |
| Insulation Resistance | More than 100MΩ at 500V DC |
| Split Face LED Options | Red/Yellow, Green, Blue/Green, White |
| Single LED options | |
| Multi-Colour LED Options | |
| Terminal Options | |
| Dielectric Strength | 200V AC RMS between terminals and ground (50/60Hz for 60sec. at normal ambiet temperature and humidity) |
| Supply Voltage | DC5V, 12V, 24V, 48V |
| Product Series |
|
Supply Voltage |
DC5V, 12V, 24V, 48V (12, 24, 48V = both AC/DC possible to use) |
|
Insulation Resistance |
More than 100 M Ω at 500 V DC |
|
Dielectric Strength |
2000V AC RMS between terminals and ground (50/60 Hz for 60 sec. at normal ambient temperature and humidity) |
|
Ambient Temperature |
-10°C to 40°C |
|
Ambient Operating Humidity |
45 to 80% RH max. |
