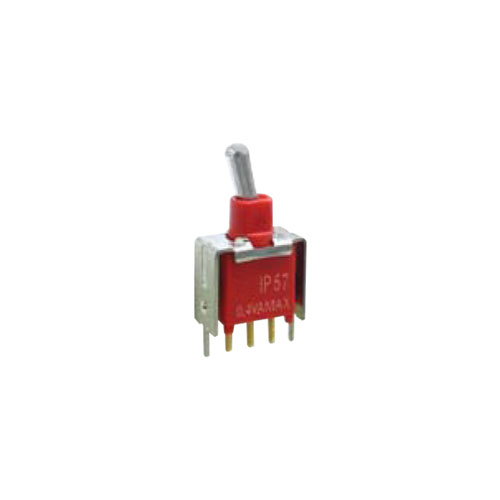

This Sub-Miniature PCB Toggle Switch has a vertical bracket mounting and SPDT terminals. It can have a 2 or 3 position function and is IP67 rated against water and dust.
Key Features:
| Function | |
|---|---|
| IP Rating | |
| Mechanical Operations | |
| Product Series |
|
Contact Rating |
Dependent upon contact material |
|
Mechanical Life |
30,000 cycles |
|
Contact Resistance |
20 m Ω max. (initial value) @ 2-4 V DC, 100 mA for both silver and gold plated contacts |
|
Insulation Resistance |
1000 M Ω min. / 1000VDC |
|
Dielectric Strength |
1000 vrms min. @ sea level (initial value) |
|
Operating Temperature |
-40°C to 85°C |
