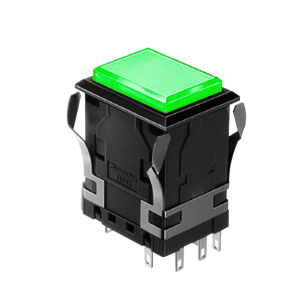

WH Illuminated push button switch - rectangular- green - 19mm x 26 mm push button switch Single LED illumination, Bi-colour LED Illumination, RGB Illumination, ring LED illumination, dot illumination, full illumination, split face illumination, dual illumination, RJS Electronics Ltd.
WH Illuminated push button switch - rectangular- yellow - 19mm x 26 mm push button switch Single LED illumination, Bi-colour LED Illumination, RGB Illumination, ring LED illumination, dot illumination, full illumination, split face illumination, dual illumination, RJS Electronics Ltd.

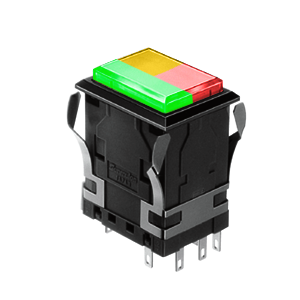

WH Illuminated push button switch - rectangular - green +red - 19x26mm push button switch Single LED illumination, Bi-colour LED Illumination, RGB Illumination, ring LED illumination, dot illumination, full illumination, split face illumination, dual illumination, RJS Electronics Ltd.
WH Illuminated push button switch - rectangular - green + red - split illumination - 19x26mm push button switch, Single LED illumination, Bi-colour LED Illumination, RGB Illumination, ring LED illumination, dot illumination, full illumination, split face illumination, dual illumination, RJS Electronics Ltd.
WH Illuminated push button switch - rectangular - yellow + green + red - 3 split illumination - 19x26mm push button switch, Single LED illumination, Bi-colour LED Illumination, RGB Illumination, ring LED illumination, dot illumination, full illumination, split face illumination, dual illumination, RJS Electronics Ltd.

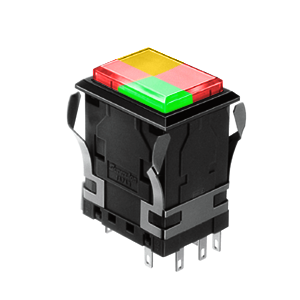

WH Illuminated push button switch - rectangular - red+ yellow + green + red - 4 split illumination - 19x26mm push button switch, Single LED illumination, Bi-colour LED Illumination, RGB Illumination, ring LED illumination, dot illumination, full illumination, split face illumination, dual illumination, RJS Electronics Ltd.

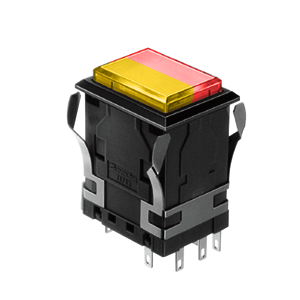

WH Rectangular Illuminated Push Switch

  •  19x 26mm, WH rectangular push button switch
  • Momentary function / latching function
  • 35mm panel depth
  • LED illumination options
    • Full face
    • Split face (2, 3, 4)
  • Panel Mount Style
  • Accessories are available.
  • Built-in resistor 5V/12V/24V

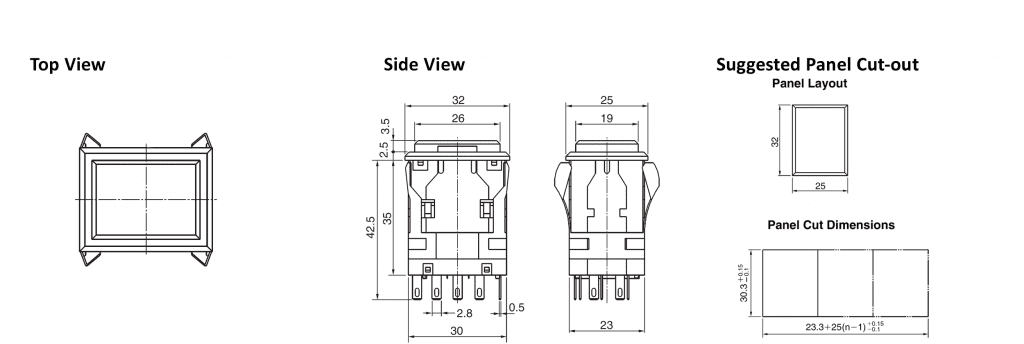

Data Sheet





Function

, ,

Depth (mm)

Illumination

,

Single LED options

, ,

Cap / Actuator Shape

Product Series

WH Series specifications

Contact Silver contact W/E Alloy #1 cross-bar contact
Electrical rating AC125V, 250V 5A (resistive) AC125V 0.1A, DC30V 0.1A (resistive)
Insulation resistance More than 200MΩ at 500V DC
Dielectric strength 1 000V AC RMS between NC and NO terminal

2000V AC RMS between terminals and ground

50/60Hz for 60sec. at normal ambient temperature and humidity

 600V AC RMS between NC and NO terminal

2000V AC RMS between terminals and ground

50/60Hz for 60sec. at normal ambient temperature and humidity
Contact resistance Less than 30mΩ (initial) at DC6V Less than 50mΩ (initial) at DC6V 1A
Mechanical life Momentary action: more than 1,000,000 operations

Alternate action: more than 200,000 operations
Electrical life More than 50,000 operations at max. rated load More than 100,000 operations at max. rated load
Ambient temperature -15°C to +50°C
Ambient humidity 80% RH (max)
