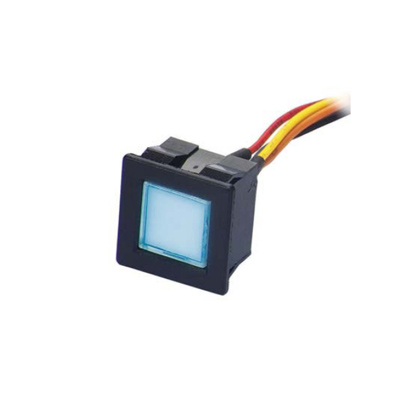

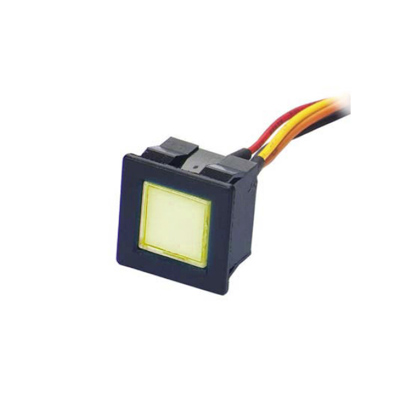

Panel mount touch sensor switch, featuring full LED illumination. Equipped with IP67 rating (from the front).
| Product Series | |
|---|---|
| Function | |
| Illumination | |
| IP Rating | |
| Terminal Options |

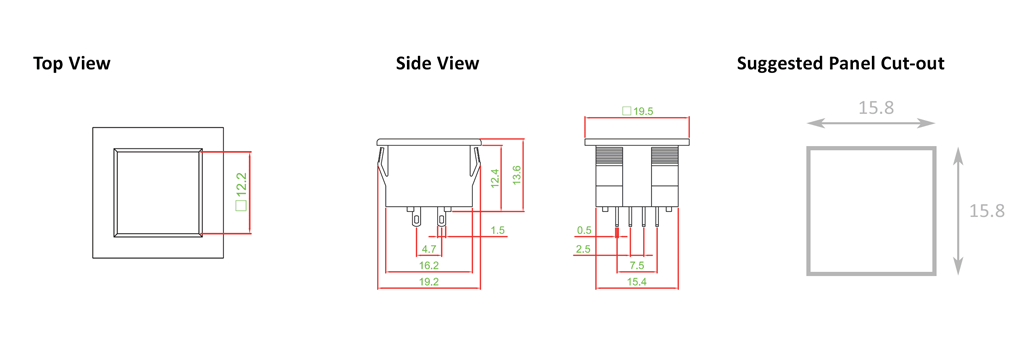

TS001 specifications
| Switch specifications | |
| Pole–position | One-channel |
| Circuit feature | Capacitive analog signal |
| Operating temperature range | -20°C~70°C |
| Sealing | IP67 |
| LED specifications | |||||
| ATTENTION
LEDs are electrostatic sensitive devices |
Unit |
Value/LED colour | |||
| Ultra green | Ultra yellow | Ultra red | |||
| Forward current (lf) | mA | 20 | 20 | 20 | |
| Reverse voltage (Vr) | V | 5.0 | 5.0 | 5.0 | |
| Reverse current (lr) | µA | 10 | 10 | 10 | |
| Forward voltage@20mA (Vf) | V | 2.1-2.5 | 2.0-2.5 | 2.0-2.5 | |
| Luminous intensity@20mA (lv) | mcd | 60 | 120 | 150 | |
