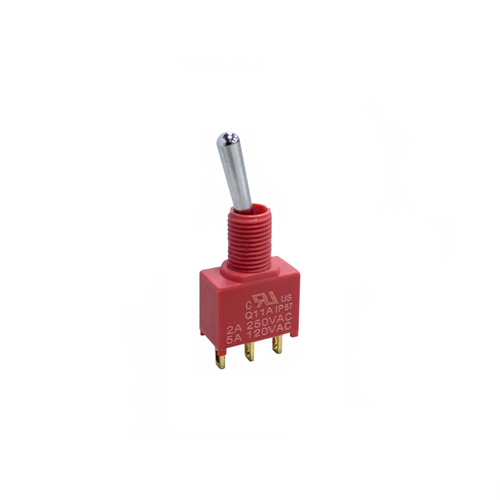

RJS-1A – SPDT

This Miniature PCB Toggle Switch has SPDT terminals and a vertical configuration. It is IP67 rated for resistance to water and dust and has 2 or 3 positions.

Key Features:

Miniature PCB toggle switch
Vertical configuration
2 position or 3 position
SPDT
Contact rating up to 5A
IP67 rated
Full 1A Series

Function	Toggle Switch
IP Rating	IP67 (front)
CONTACT RATING	*Dependent upon contact material
CONTACT RESISTANCE	10 m Ωmax. initial @ 2-4VDC 1 00mA for both silver and gold plated contacts.
INSULATION RESISTANCE	1,000 MΩ min.
DIELECTRIC STRENGTH	1,000 Vrms min.@sea level.
OPERATING TEMPERATURE	-40°C to 85°C.
Mechanical Operations	30,000 cycles
Product Series	Toggle Switch: 1A Series

Contact Rating	Dependent on contact material
Mechanical Life	30,000 cycles
Electrical Life	50,000 cycles
Contact Resistance	10 m Ω max. initial @ 2-4VDC 100mA
Insulation Resistance	1000 m Ω min.
Dielectric Strength	1000 vrms min. @ sea level
Operating Temperature	-40°C to 85°C
