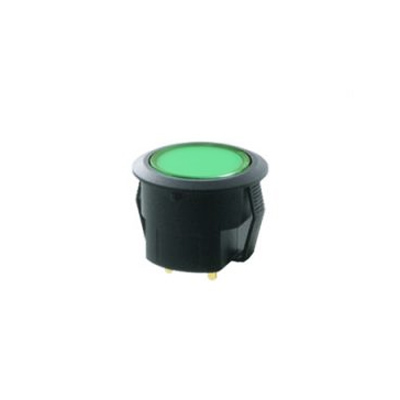

SPCG Series LED Push Button Switch

The SPCG Series is an LED Push Button Switch range offering momentary or latching operation. Equipped with single or double pole options and available with round or square caps.

Key Features:

SPDT or DPDT contact configurations
Momentary / latching operation
Single colour LED options: red, super yellow, white, pure green and blue
RGB full colour illumination available
Rated at 3A, 125/250V AC or 3A at 30V DC
Total travel: 2.3mm ± 0.5mm
Operating temperature: −25°C to +50°C
Snap-action contact mechanism
Silver-alloy contacts

Additional information
Specifications

Product Series	SPC
Function	Push Button Switch, Momentary Switch, Latching Switch
Cap / Actuator Shape	Square
Illumination	Full Illumination
Multi-Colour LED Options	(RGB) Red/Green/Blue
Configuration	DPDT, SPDT
Terminal Options	Panel Mount, PCB Terminals (THT)
Single LED options	Pure Green, Super Yellow, Blue, Red, White

SPC / SPCG Series Specification
Circuit	SPDT or DPDT
Rating	3A. 125/250 V AC or 3A@30 VDC
Contact resistance	50mOhm max.(initial)
Insulation resistance	200MOhm min
Operating force	Single pole: 190gf+50gf Double pole: 200gf+50gf
Total travel	2.3mm+0.5mm
Mechanical life	1,000,000 cycles min. for Momentary 200,000 cycles min. for Alternate
Electrical life	10,000 cycles min. for silver alloy contact
Operating temperature	-25deg~+50deg
Function	Momentary or alternate
