This PCB mount LED Tactile Push Button Switch has a split face, allowing for two different colours of LED illumination. It features a tactile momentary function and single or bi-colour illumination. Choose from a round or square face.
Key Features:
| Product Series | |
|---|---|
| Function | Push Button Switch, Momentary Switch, Tact Switch, Latching Switch |
| Illumination | |

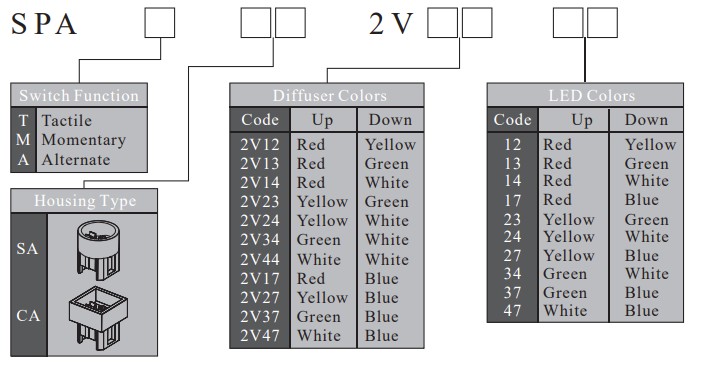

| Multi-Colour LED Options | (BB) Blue/Blue, (RG) Red/Green, (RR) Red/Red, (RY) Red/Yellow |
| Switch Circuit |
| Specifications | SPAA & SPAM / SPAT |
| Switch Circuit | DPDT / SPST-NO |
| Contact Rating | 100mA @ 30V DC max / 50mA @ 12V DC max |
| LED Rating | Limited forward current (IF) at 20mA max |
| Contact Resistance | 100m Ohm max. (initial) |
| Insulation Resistance | 100M Ohm min at DV 500V |
| Operating Force | 200gf ± 80gf / 180 ± 50gf |
| Total Travel | Max. 2.5mm; Lock 1.5mm / 0.3 ± 0.2mm |
| Mechanical Life | 10,000 cycles min. / 80,000 cycles min. |
| Operating Temperature | -10°C ~ +65°C / -10°C ~ +60°C |
|
SPA-Z Series Materials (SPA-A & SPA-M)
|
|
| S/W button | Polyacetal (POM) |
| S/W base | Polyamide (PA) |
| S/W terminal | Brass with silver plating |
| LED terminal | Phosphor bronze (PBS) with gold plating |
| Contact | Phosphor bronze (PBS) with silver plating |
| Spring | Piano wire |
| Housing | Polyamide (PA) |
| Diffuser | Polycarbonate (PC) |
| Dual windows cap | Polyamide (PA) |
|
SPA-Z Series Materials (SPA-T)
|
|
| S/W button | Polyacetal (POM) |
| S/W base | Polyamide (PA) |
| S/W terminal | Brass with gold plating |
| LED terminal | Phosphor bronze (PBS) with gold plating |
| Act. dome | Stainless steel with silver plating |
| Housing | Polyamide (PA) |
| Diffuser | Polycarbonate (PC) |
| Dual windows cap | Polyamide (PA) |
