Navigation Switch: SF25WA

This Navigation Switch features 5 Key Navigation Switches and LED illumination. The cap of the switch is available in black or white, and custom markings can also be added.

Key Features:

  • Ø 25mm panel cut out
  • 5 key Navigation Switch
  • Momentary function
  • LED illumination ( red and blue backlight).
  • 50mA @ 12V DC
  • IP67 rated (front)
  • SP5T
  • Custom markings available
Product Series

Configuration

Diameter (mm)

Function

,

IP Rating

Illumination

,

Product Material Options

Switch Travel

Single LED options

,

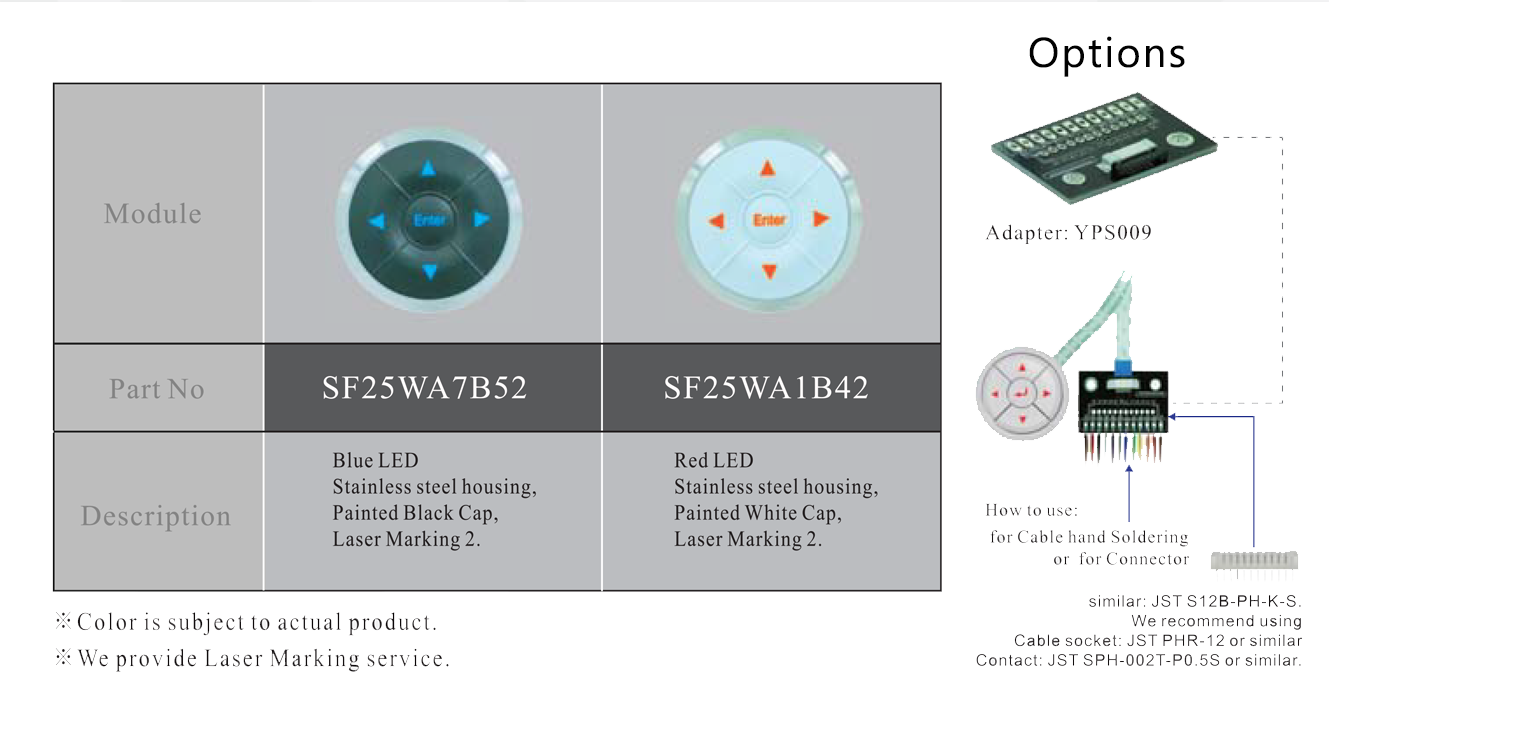

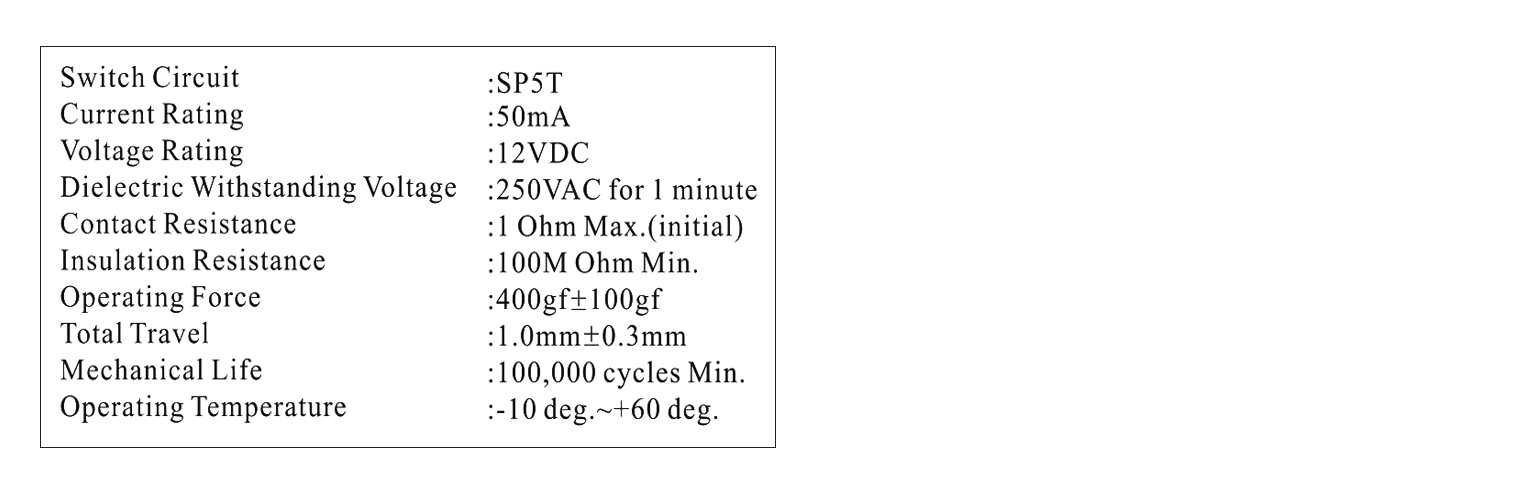

SF25WA Series Specification



Switch circuit SPST
Current rating 50mA
Voltage rating 12V DC
Dielectric withstanding voltage 250VAC for 1 minute
Contact resistance 1 Ohm max.(initial)
Insulation resistance 100MOhm min
Operating force 400gf + 100gf (S1~4)
Total travel 1.0mm + 0.3mm
Mechanical life 100,000 cycles min
Operating temperature -10deg~+60deg

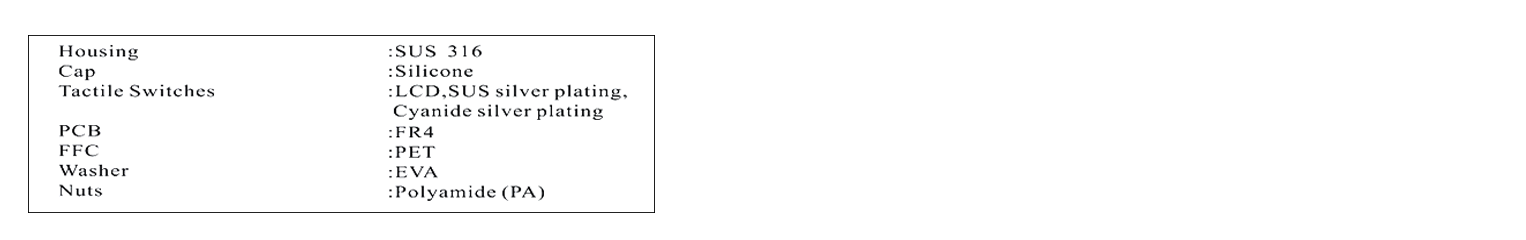

SF25WA Series Materials



Housing SUS 316
Cap Silicone
Tactile switches LCD.SUS silver plating

Cyanide silver plating

PCB FR4
FFC PET
Washer EVA
Nuts Polyamide (PA)

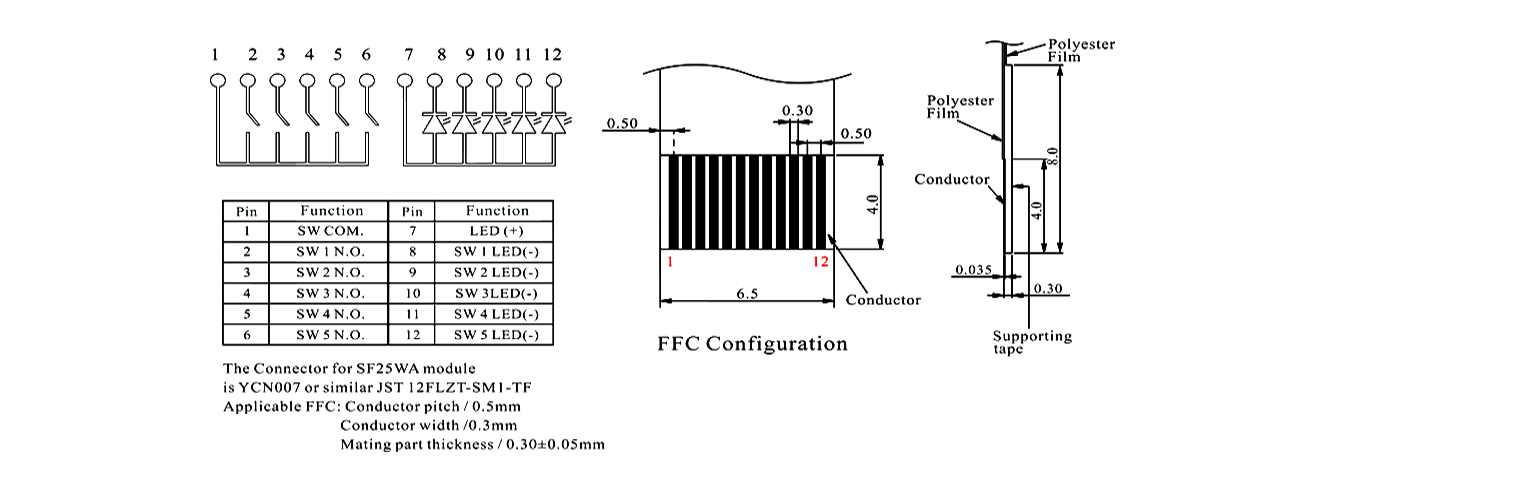

Drawing of Navigation Switch: SF25WA, 5 key momentary function switch, led illuminated, rjs electronics ltd
