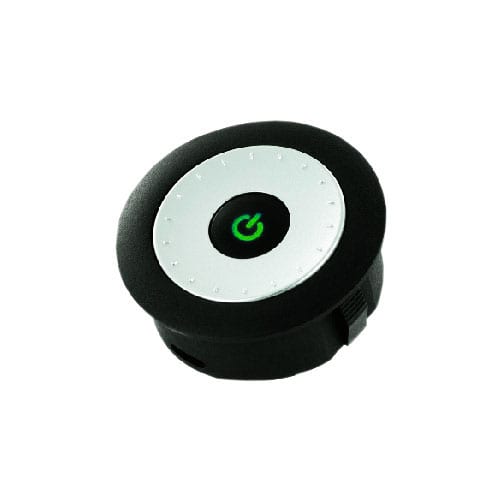

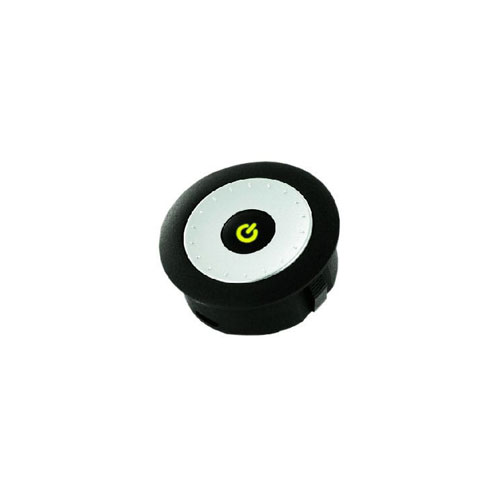

This Rotary Encoder Navigation Switch has a momentary central push button function and is LED illuminated. It features 12 pulse/360 degree rotation and is available with a power symbol or custom markings.
Key Features:
| Product Series | |
|---|---|
| Configuration | |
| Function | |
| Illumination | |
| Terminal Options | |
| Switch Travel | |
| Panel Cut-Out Diameter |
|

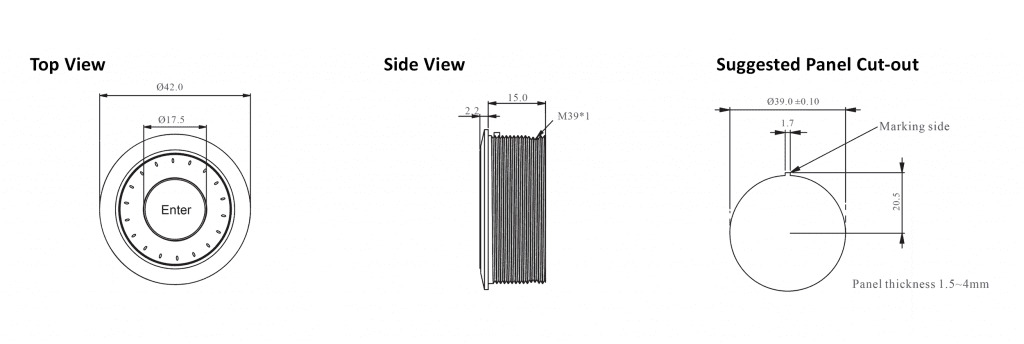

SF39EA-Z/SF39EB-Z Series Specification
|
|
| Current rating | 1mA |
| Voltage rating | 10VDC |
| Dielectric withstanding voltage | 250VAC for 1 minute |
| Contact resistance | 300mOhm max.(initial) |
| Insulation resistance | 100MOhm min |
| Operating force | Rotation max.60gf-cm
Push max. 220gf+50gf |
| Mechanical life | Rotation -min 200,000 operations
(C.W 100,000 & C.C.W 100,000 Push -min 1,000,000 operations |
| Operating frequency | Rotation -max 30 operations per minute
Push -max 120 operations per minute |
| Operating temperature | 0deg~+40deg |
|
SF39EA-Z/SF39EB-Z Series Materials
|
|
| Rotary cap | Polyamide (PA) |
| Push cap | Polycarbonate (PC) |
| Housing | Aluminium |
| Nuts | Polyamide (PA) |
| Base | Polyamide (PA) |
| Connector | PA. brass with tin plating |
