4ASeries - SPDT - Sealed Sub-Miniature Plastic Rocker Switches, Panel Mount switches. RJS Electronics Ltd, pcb, panel mount, rocker switch, switch without LED illumination, SPDT, IP67 rated, electromechanical switch, RJS Electronics Ltd.

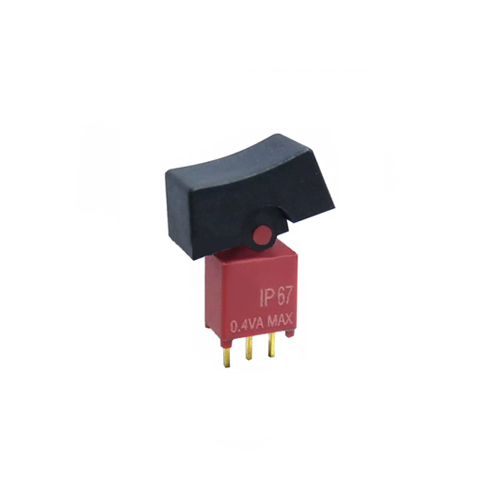

Rocker Switch: 4A- SPDT

This PCB Rocker Switch features an IP67 rating and an SPDT configuration. Available with vertical mounting and a momentary or latching function in 2 or 3 positions.

Key Features:

  • Rocker switch
  • Momentary or latching
  • 2 or 3 positions
  • Vertical mounting
  • SPDT
  • Contact rating up to 3A
  • IP67 rated
  • Full 4A series
Data Sheet
Function

IP Rating

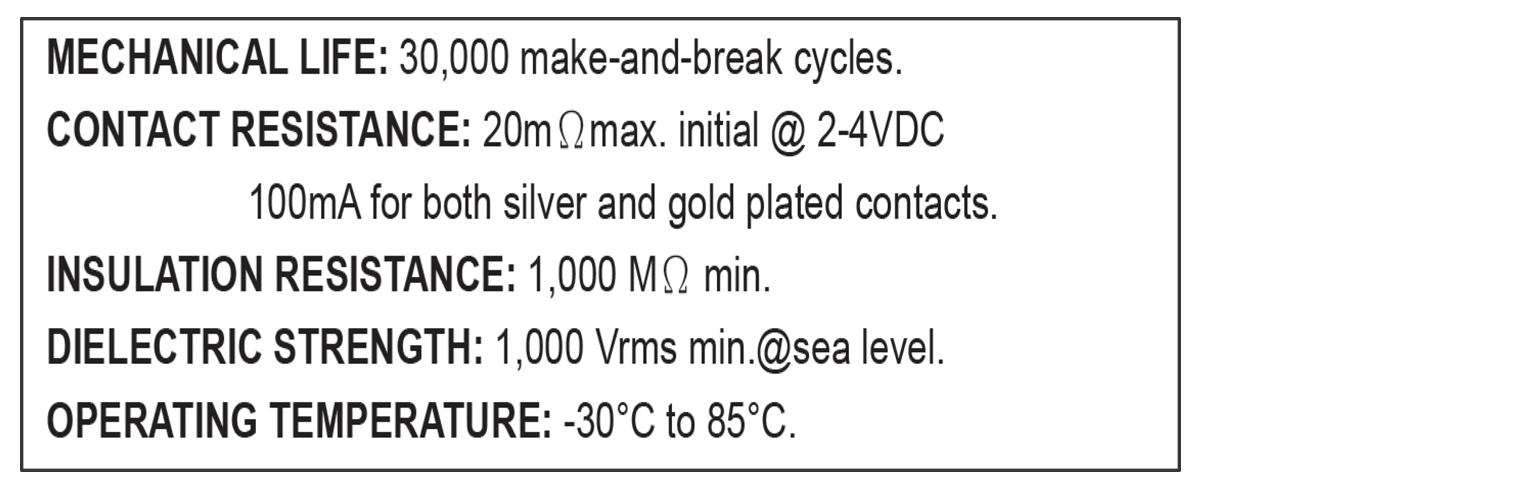

Mechanical Operations

Insulation Resistance

1,000 MΩ min.
Dielectric Strength

1,000 Vrms min. @sea level.
Product Series
