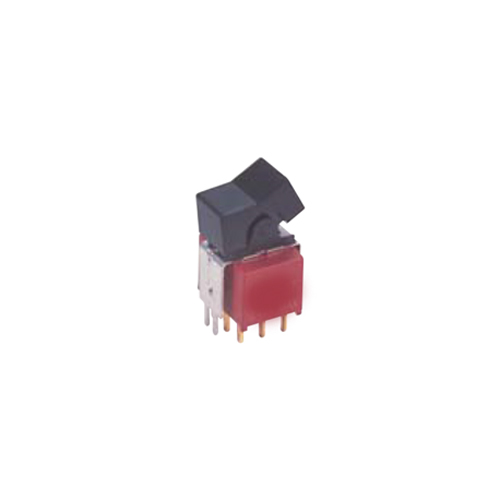

3A-VS2-VS3-3PDT

  • Sealed Miniature Rocker and Paddle Switches
  • 3PDT
  • Contact Rating up to 5A.
  • Sealed to IP67
  • Full 3A Series

Applications

  • Automotive
  • Boatbuilding & Marine
  • Security
  • Door entry
  • Medical
Function

IP Rating

Product Series

Mechanical Operations

Insulation Resistance:

1,000 MΩ min.

Dielectric Strength:

1,000 Vrms [email protected] level.

Contact Resistance:

10 m Ω max. initial @ 2-4VDC
1 00mA for both silver and gold plated contacts.

Circuit

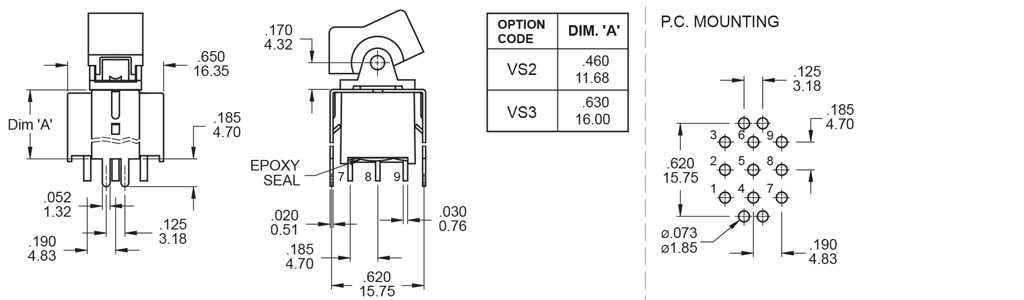

Mechanical & Electrical Specs
Materials
