high current metal push button switch with led illumination, RGB LED available, rjs electronics ltd

high current metal push button switch with led illumination, RGB LED available, rjs electronics ltd

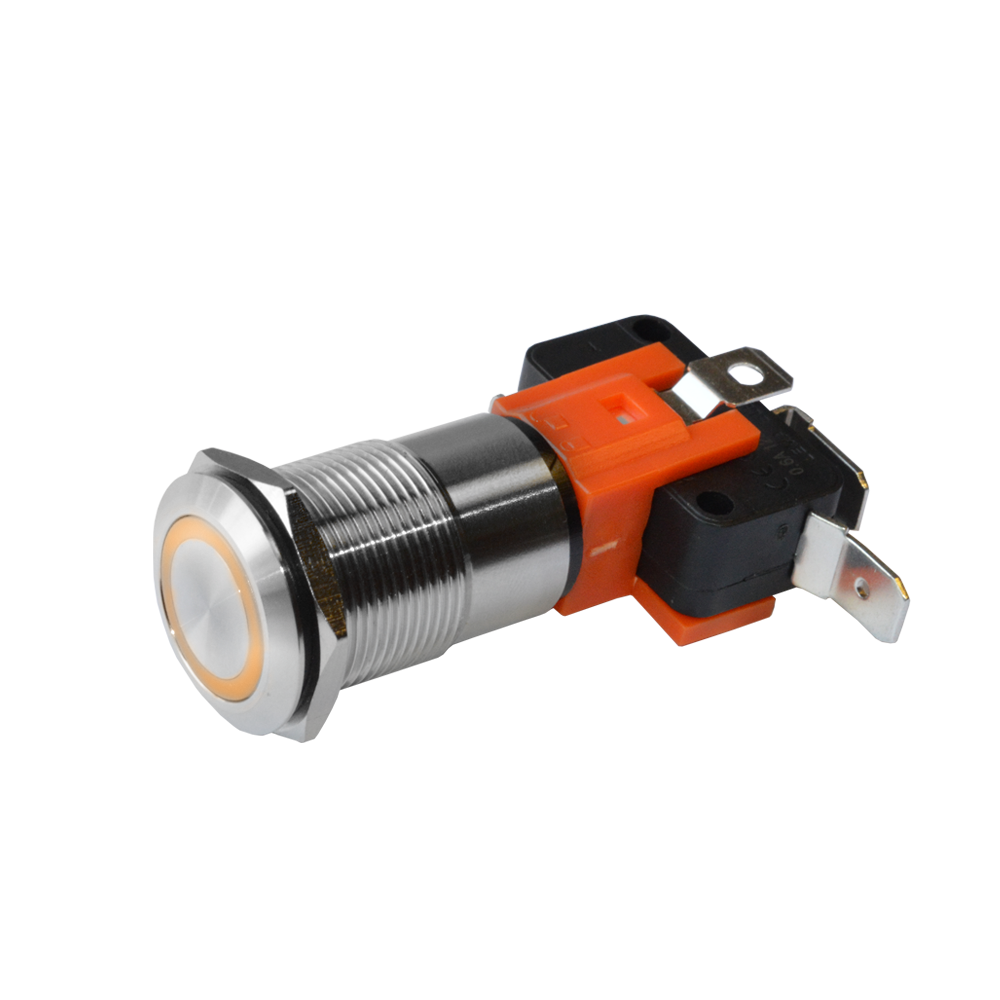

19mm High current, anti-vandal switch with ring LED illumination.

Key Features:

Ø 19mm Panel cut out
Momentary or Latching
Ring LED illuminated
RGB LED available

Applications

Automotive
Boat building & Marine
Security
Door entry
Medical

SKU: 14307 Categories: 19mm, Illuminated Anti-Vandal Switches, Illuminated Switches, Metal Pushbutton Switches, Panel Mount, Panel Mount Illuminated Switches, Pushbutton Switches, RGB Illuminated Switches, RGB Metal Switches

Product Series	RJS106-19L
Panel Cut-Out Diameter	Ø 19mm
Function	High Current, Push Button Switch, Momentary Switch, Latching Switch
Illumination	Ring LED Illumination
Multi-Colour LED Options	(RGB) Red/Green/Blue
Mechanical Operations	2,000,000 cycles
Electrical Operations	50,000 cycles
Terminal Options	Quick connect terminal (4.75 x 0.5 and 6.30 x 0.5), Screw

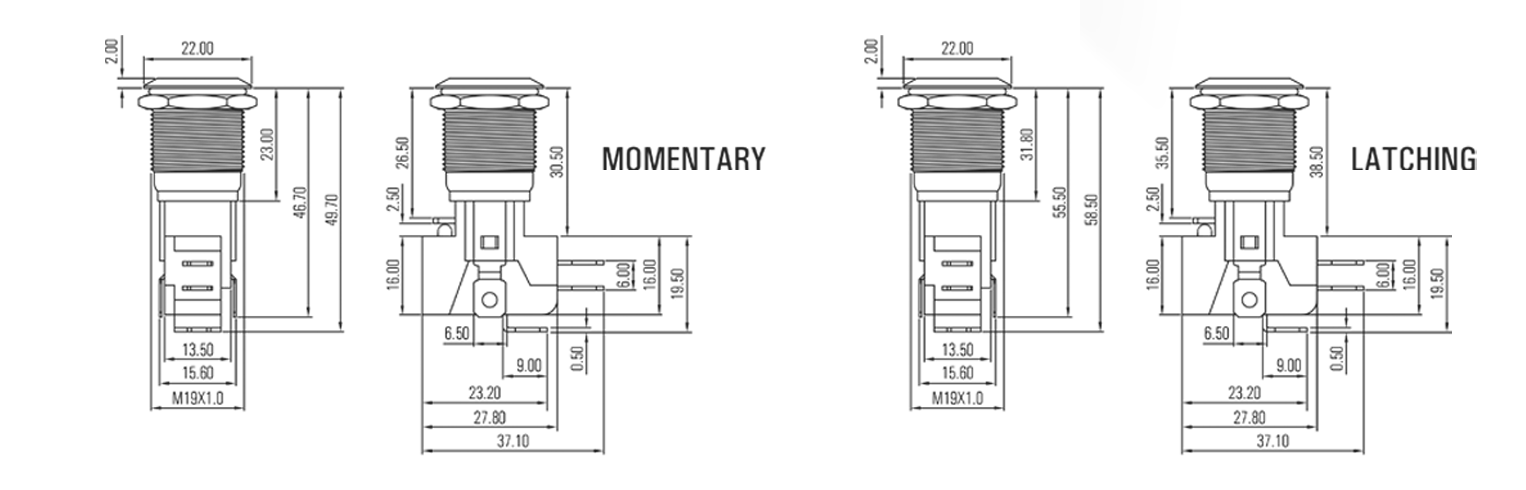

Drawing

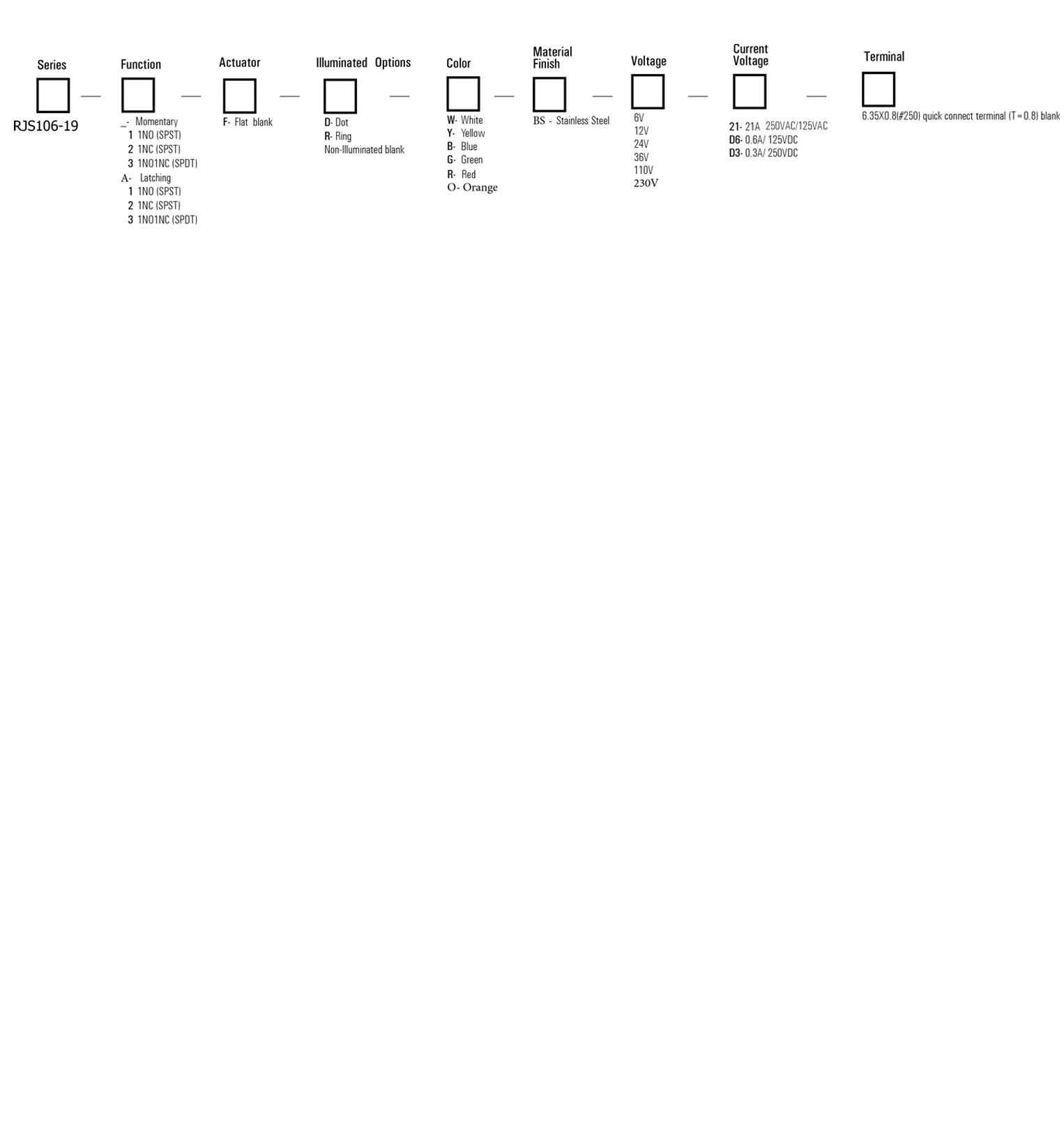

How to order

Example Part Numbers

Part Number	Description
RJS106-19L-F-R-R-BS-12V-65L	19mm, Momentary, Flat head, Ring Red LED, Brushed steel finish, 12 volt, IP65
RJS106-19LA-F-R-B-BS-24V-65L	19mm, Latching, Flat head, Ring Blue LED, Brushed steel finish, 24 volt, IP65
