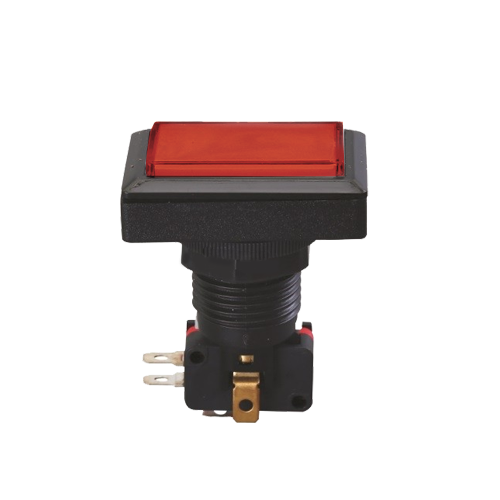

RJS-GME9~12V-D

Gaming button with a panel cut-out size of 24mm and a momentary function. The switch also features full LED illumination that indicates when it’s active. It has one Normally Open (NO) and one Normally Closed (NC) contact configuration, offering some flexibility in how it can be used.

Key Features:

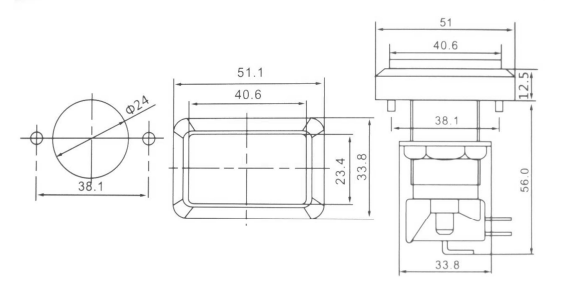

  • Ø24mm panel cut out
  • Momentary function
  • Full LED illumination
  • 1NO / 1NC contact configuration
  • Rectangular button



Product Series

Function

,

Illumination

Cap / Actuator Shape

Diameter (mm)

Terminal Options

,

Configuration



RJS-GME Series Specification



Rating 5A 250VAC
Insulation Resistance 100MΩ Min (at 500VCD)
Dielectric Strength 1500VAC (1 minute)
Contact Resistance ≤30MΩ
Electrical Life ≥10,000 Cycles
Operating Temperature -25°c~ +85°c
Function OFF-(ON)
OEM or ODM Available
