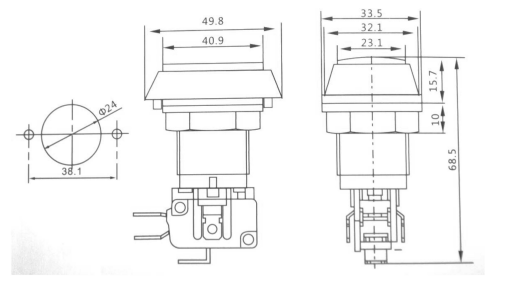

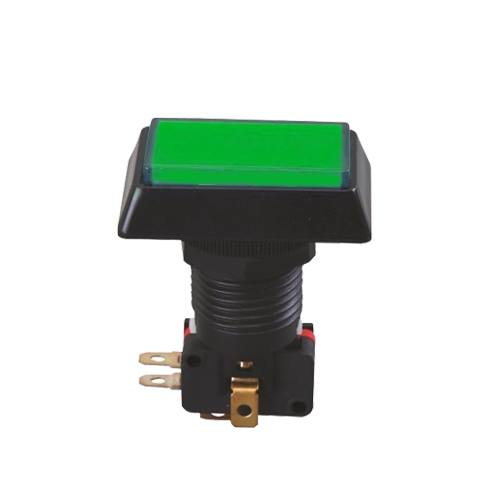

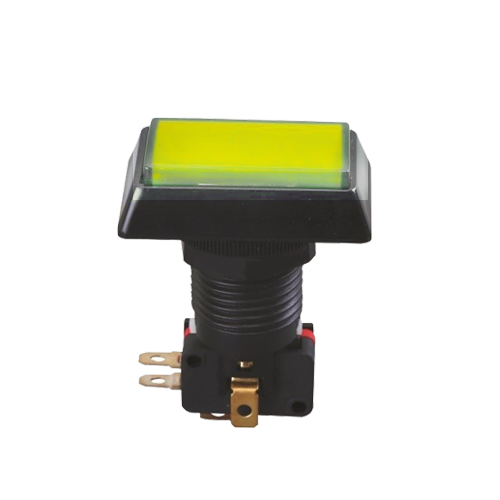

Gaming or arcade button with a rectangular shape and a panel cut-out size of 24mm. Momentary function with full LED illumination and contact configuration – 1 normally open (NO) and 1 normally closed (NC).
Key Features:
| Product Series | |
|---|---|
| Function | |
| Illumination | |
| Cap / Actuator Shape | |
| Diameter (mm) | |
| Terminal Options | |
| Configuration |
|
RJS-GME Series Specification
|
|
| Rating | 5A 250VAC |
| Insulation Resistance | 100MΩ Min (at 500VCD) |
| Dielectric Strength | 1500VAC (1 minute) |
| Contact Resistance | ≤30MΩ |
| Electrical Life | ≥10,000 Cycles |
| Operating Temperature | -25°c~ +85°c |
| Function | OFF-(ON) |
| OEM or ODM | Available |
