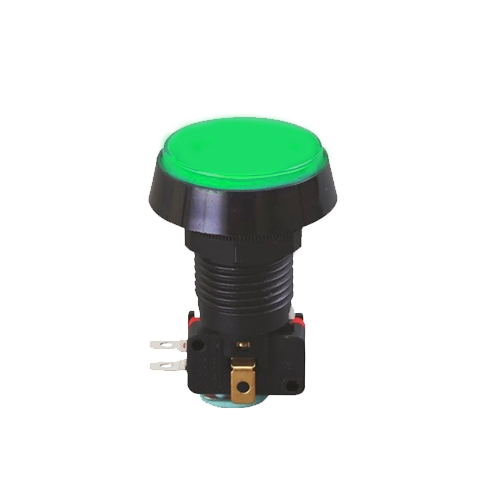

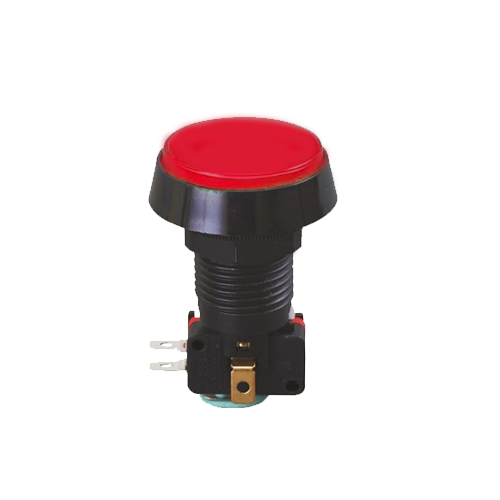

RJS-GME2~12V-D

Gaming button that can be mounted on a panel, and is also commonly referred to as an ‘arcade button’. LED illuminated with a round actuator, and panel cut out measuring Ø24mm. This button is available with momentary function.

Key Features:

  • Ø24mm panel cut out
  • Momentary function
  • Full LED illumination
  • Rating: 5A 250VAC
  • 1NO / 1NC contact configuration
  • Round button
Product Series

Function

,

Illumination

Cap / Actuator Shape

Diameter (mm)

Terminal Options

,

Configuration



RJS-GME Series Specification



Rating 5A 250VAC
Insulation Resistance 100MΩ Min (at 500VCD)
Dielectric Strength 1500VAC (1 minute)
Contact Resistance ≤30MΩ
Electrical Life ≥10,000 Cycles
Operating Temperature -25°c~ +85°c
Function OFF-(ON)
OEM or ODM Available
