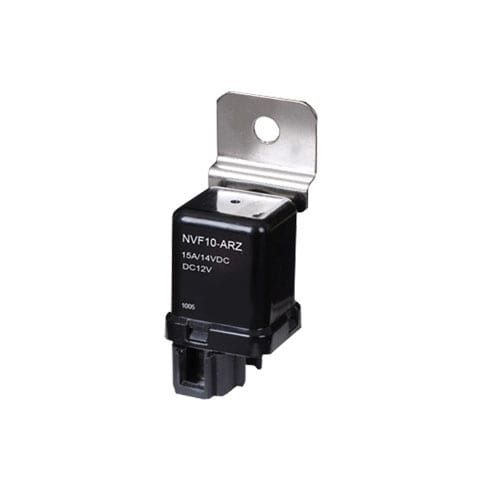

NVF10

• Relay

  • Low profile.
  • Insert mounting.
  • Suitable for automation system and automobile auxiliary etc.
Function

Contact Arrangement

1A(SPSTNO)

Contact Rating (resistive)

15N14VDC

Max. Switchinq Power

210W

Max. Switching voltage

75VDC
Max. Switching Current: 15A

Contact resistance or Voltage drop

<100mΩ

Electrical Operations

Mechanical Operations

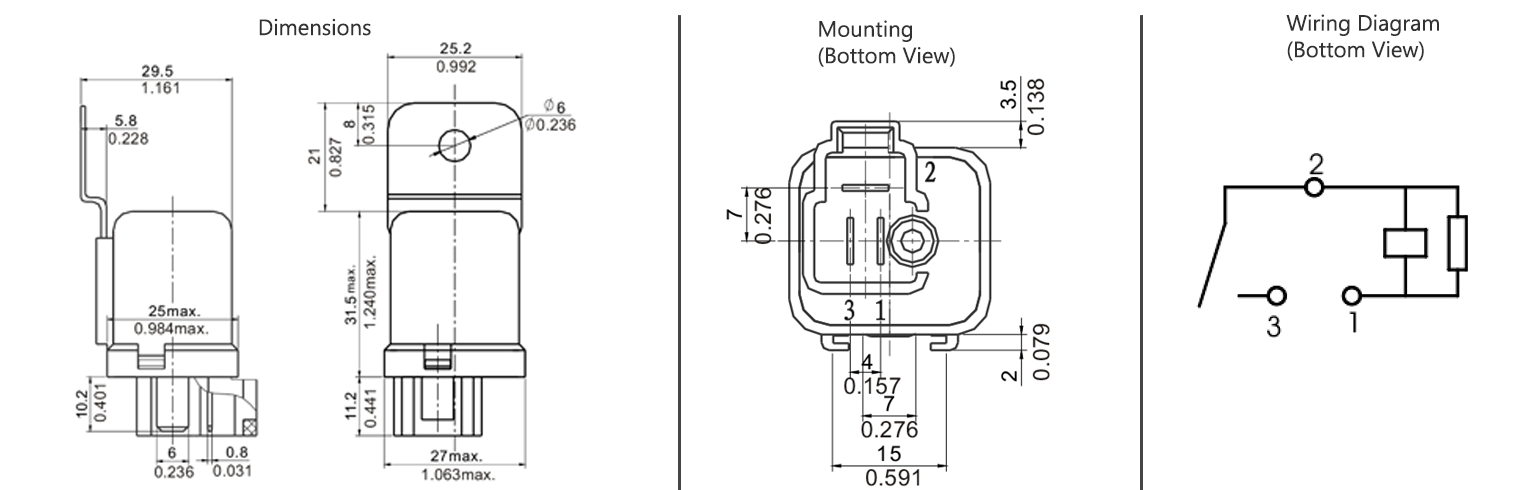

Sizing (mm)

27X25X31.5(+21)

Circuit
