19mm metal push button switch, ring LED illuminated, antivandal switch, panel mount RJS Electronics Ltd

RJS101S-19L(A)-H-R-(G)-(BSBLK)-(XV)-67Q

RJS101S-19L-H-R~67Q

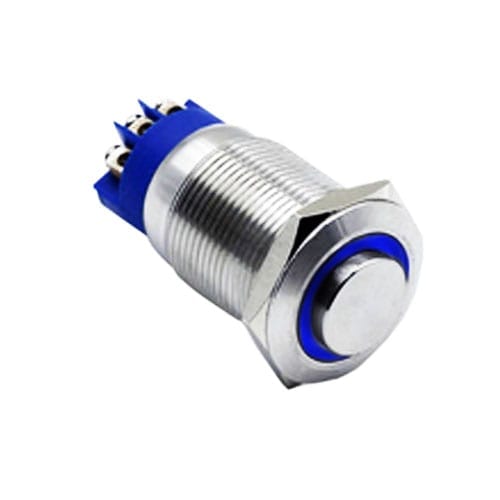

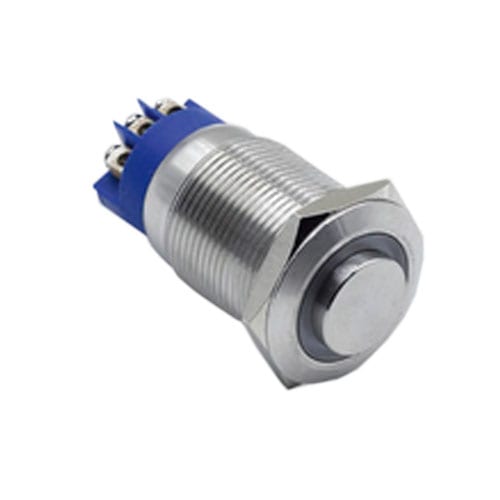

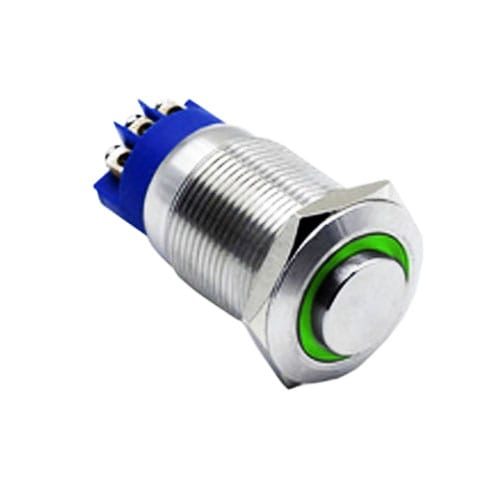

19mm Antivandal Switch with Ring LED Illumination

Key Features:

Ø 19mm Panel cut out
Momentary or Latching
Ring LED illuminated
Single/Bi-colour LED options
IP67 rated (from the front)

Applications:

Automotive
Boat building & Marine
Security
Door entry
Medical

Additional information

IP Rating	IP67 (front)
Configuration	1NO (SPST) [push to make]
Terminal Options	Screw Terminals
Illumination	Ring LED Illumination
Cap / Actuator Shape	High Head (Raised), Round
Function	Push Button Switch, Momentary Switch
Panel Cut-Out Diameter	Ø 19mm
