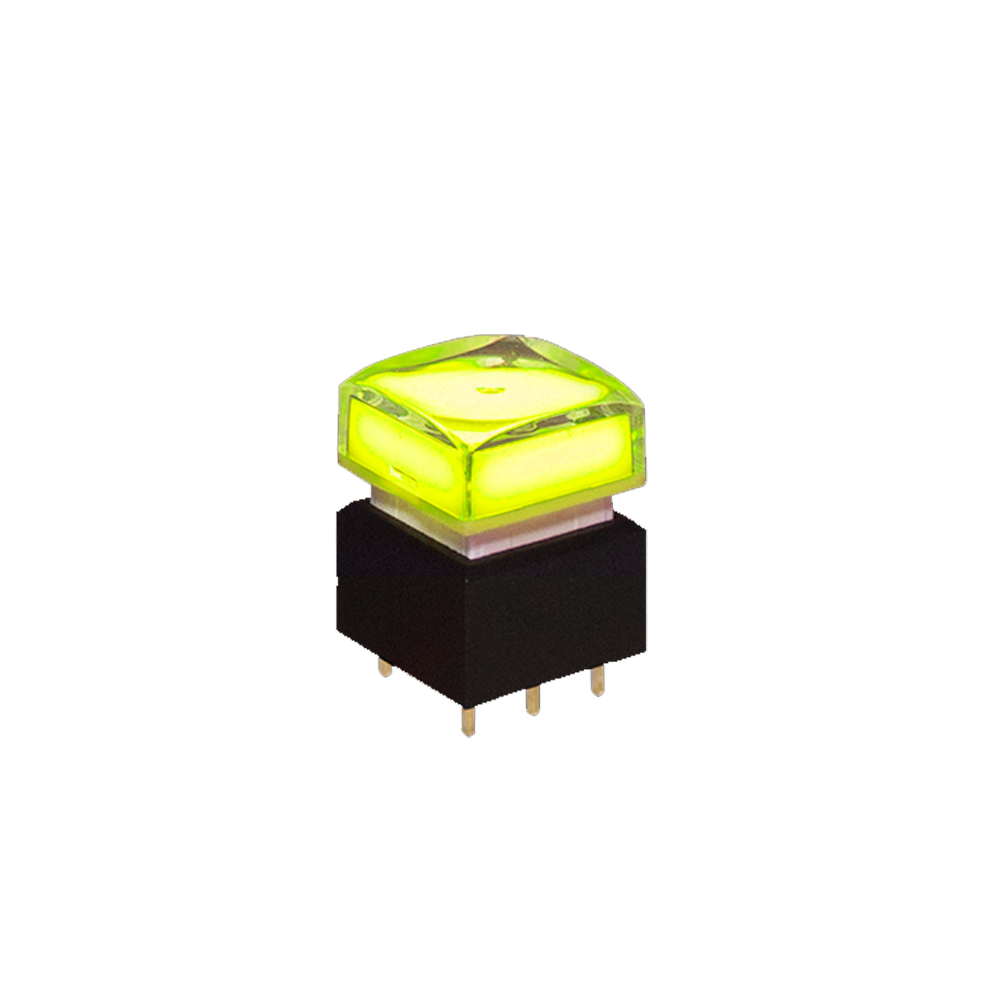

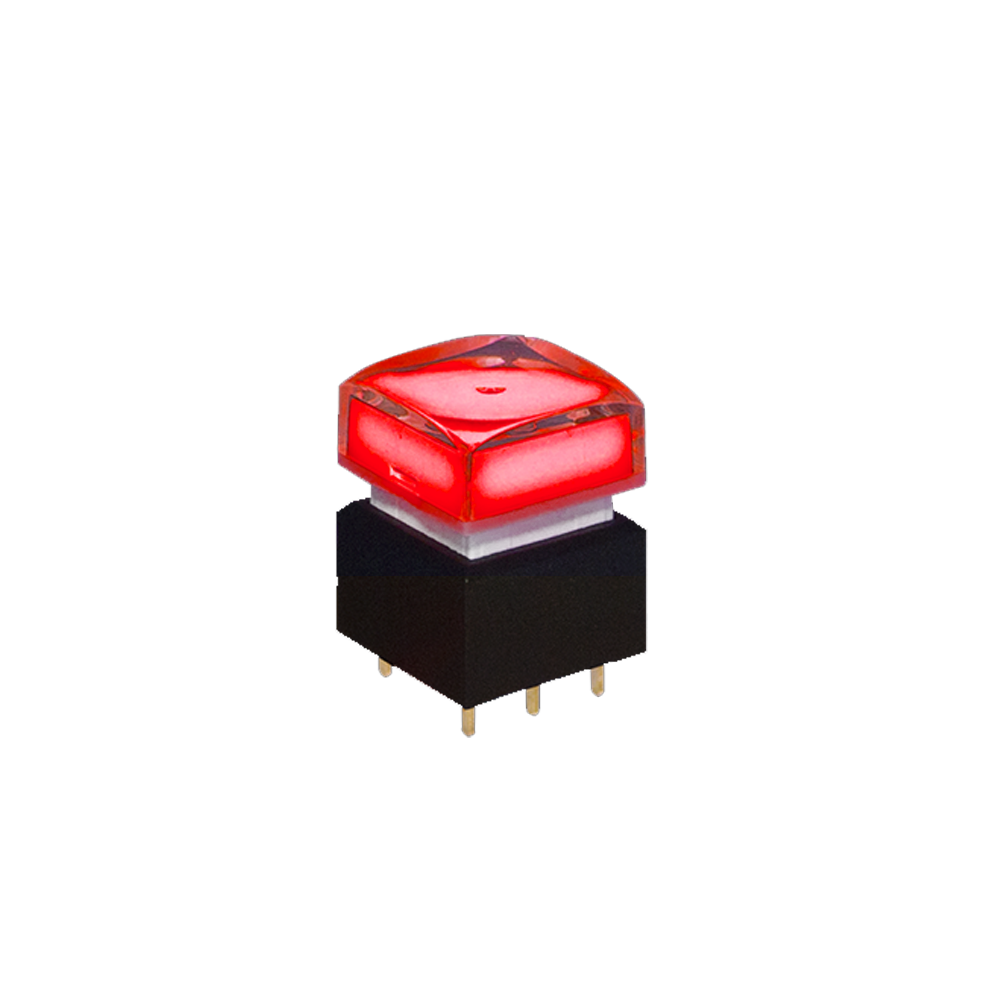

This PCB Push Button Broadcast Switch features full face LED illumination, momentary function and a silent push. Choose single, bi-colour or RGB LED illumination. Available with a flat or convex cap and compatible with Smart Caps.

Key Features:

  • LED illuminated push button switch
  • Momentary/latching function
  • Single/bi-colour or RGB LED Illumination
  • Sizes available: 15mm, 17mm and 22mm
  • Raised or flush
  • Compatible with Smart Caps.
  • Broadcast switch
Product Series

Configuration

,

Function

Illumination

Single LED options

, , , ,

Multi-Colour LED Options



SPC Series Specification



Circuit SPDT or DPDT
Rating 3A. 125/250 V AC or 3A@30 VDC
Contact resistance 50mOhm max.(initial)
Insulation resistance 200MOhm min
Operating force Single pole: 190gf+50gf

Double pole: 200gf+50gf

Total travel 2.3mm+0.5mm
Mechanical life 1,000,000 cycles min. for Momentary

200,000 cycles min. for Alternate

Electrical life 10,000 cycles min. for silver alloy contact
Operating temperature -25deg~+50deg
Function Momentary or alternate


SPC Series Materials



Cap Polycarbonate (PC)
Housing Polyamide (PA)
Snap-in frame Stainless steel
Switch/LED terminal Phosphor bronze (PBS) with gold plating
Movable contacts Silver alloy
Spring Piano wire
Base Polyamide (PA)
LED Surface type LED

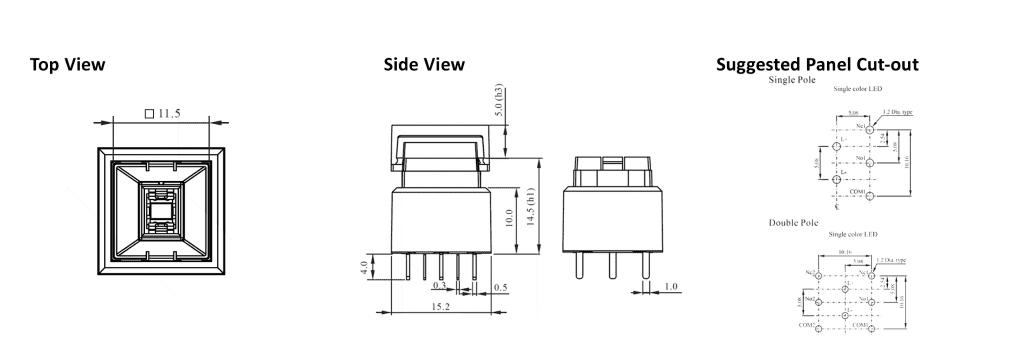

Drawing of SPCG LED illuminated push button switch, pcb broadcast switch, rjs electronics ltd
