| Product Series | |
|---|---|
| Function | |
| Illumination | |
| Current Rating | 1A @ 30VDC |
| Contact Resistance | 500mOhm max. |
| Insulation Resistance | 100MOhm min. |
| Mechanical Operations | |
| Switch Travel |

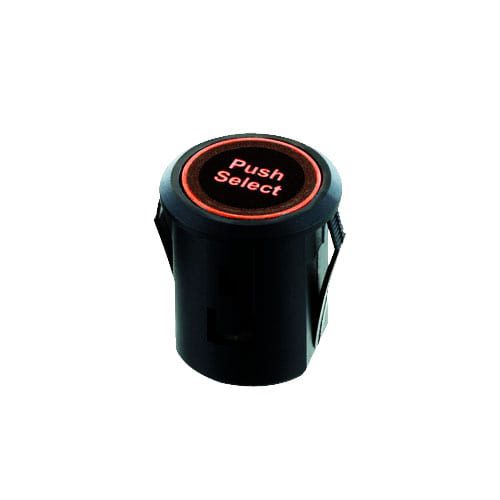

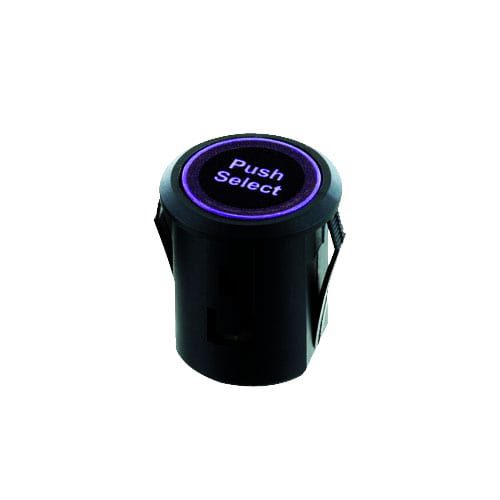

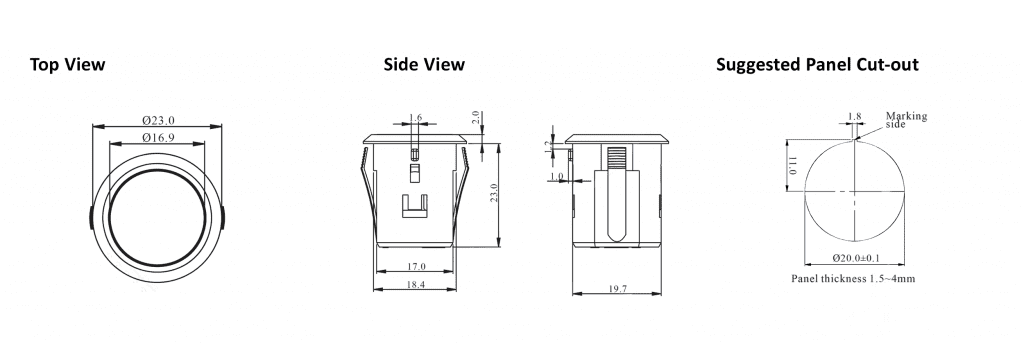

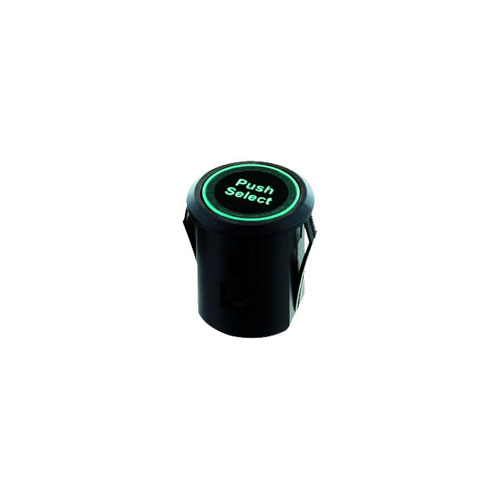

This Push Select Switch features a momentary push button function and LED illumination. It has a 20mm panel cut-out with snap-in mounting. Custom markings available.
Key Features:
| Product Series | |
|---|---|
| Function | |
| Illumination | |
| Current Rating | 1A @ 30VDC |
| Contact Resistance | 500mOhm max. |
| Insulation Resistance | 100MOhm min. |
| Mechanical Operations | |
| Switch Travel |
|
SF20EA-Z Series Specification
|
|
| Circuit | OFF͢-ON-ON-ON |
| Current rating | 1A @30VDC |
| Contact resistance | 500mOhm max(initial) |
| Insulation resistance | 100Mohm min |
| Operating force | 500gf+100gf |
| Total travel | 1.5mm+0.5mm |
| Mechanical life | 100,000 cycles min |
| Operating temperature | -10deg~+60deg |
|
SF20EA-Z Series Materials
|
|
| Cap | Polycarbonate (PC) |
| Housing | Polyamide (PA) |
| SW reflector | Polyacetal (POM) |
| SW terminal | Brass with gold plating |
| SW spring | SUS |
| SW contact | Brass with gold plating |
