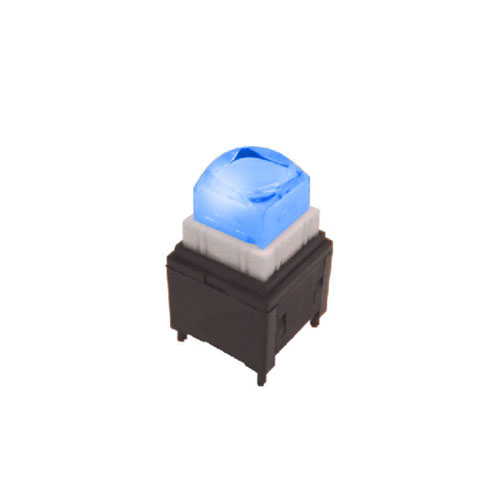

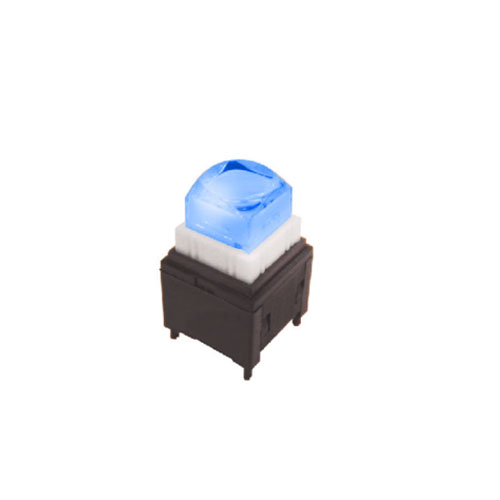

PCB push button switch with led illumination, broadcast switch, LED Switches, LED Options, LED Illumination, blue LED, RJS Electronics Ltd

PS011A-N11TCD - Image 2

PS011A-N11TCD - Image 3

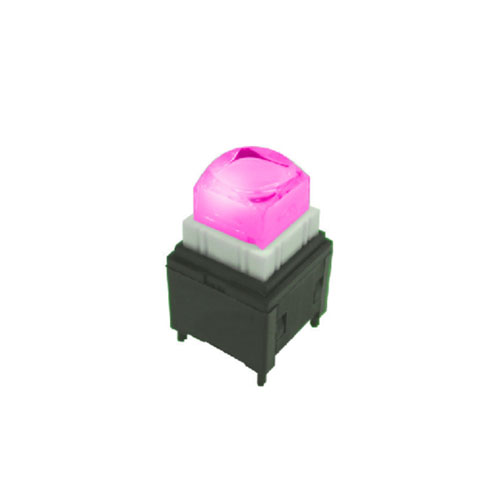

push button switch with led illumination, broadcast switch, LED Switches, LED Options, LED Illumination, RGB, RJS Electronics Ltd

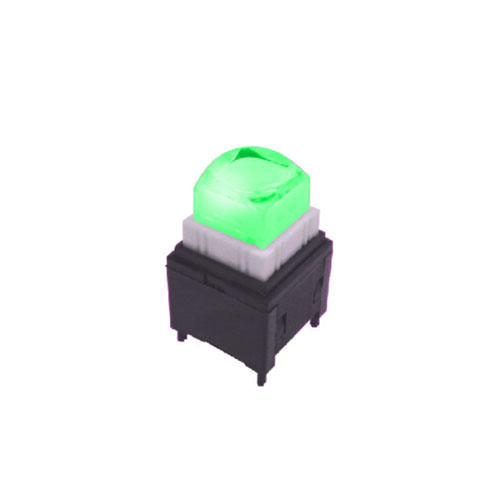

PCB push button switch with led illumination, broadcast switch, LED Switches, LED Options, LED Illumination, green LED, RJS Electronics Ltd

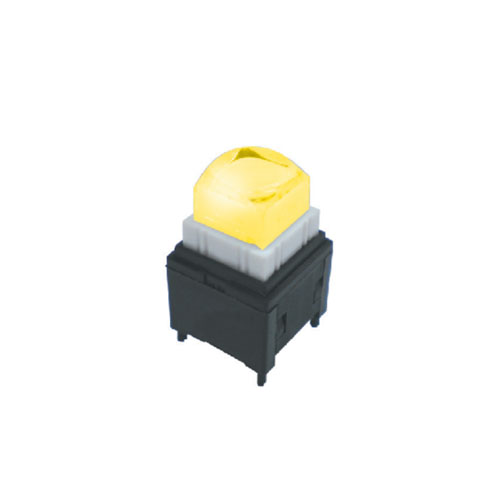

PS011A-N11TCD

Illuminated push button switch, equipped with a noiseless smooth operation. Featuring single, bi-colour or RGB LED options and momentary function.

Full list of PS011A series

Key Features:

LED illuminated push button switch
Momentary function
Single / bi-colour or RGB LED Illumination

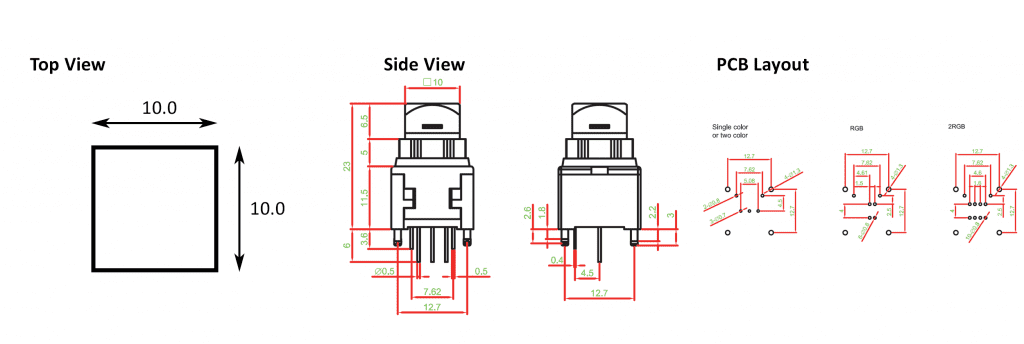

10mm²
Silent push

Product Series	PS011A
Configuration	1NO (SPST) [push to make]
Single LED options	Blue, Green, Red, White, Without LED, Yellow
Terminal Options	PCB Terminals (THT)
Cap Dimensions (mm)	10
Function	Push Button Switch, Momentary Switch

PS011A Series specifications

Switch specifications
Pole–position	OFF -<ON> for Momentary type. SPST
Contact rating	100mA 12V DC
Contact resistance	200mΩ MAX.
Insulation resistance	100MΩ MIN. 500V DC for 1 minute
Dielectric strength	Breakdown is not allowable: 500V AC for 1 minute
Operating force	200 + 80gf (TP:4.5mm) 160 + 80gf (TP:3.5mm)
Operating life	2,000,000 cycles
Operating temperature range	-40°C~85°C
Total travel	4.5 + 0.2mm/3.5 + 0.2mm

LED specifications
ATTENTION LEDs are electrostatic sensitive devices	Unit	Value/LED colour
ATTENTION LEDs are electrostatic sensitive devices	Unit	Blue	Pure green	Red	Yellow	Orange	Green	White
Luminous intensity@20mA (lv)	mA	72	413	216	170	253	50	253
Dominant wavelength λD	V	468	525	630	590	601	570	/
Forward voltage@20mA (Vf)	V	3.3	3.3	1.95	2	2.1	2.1	3.3
