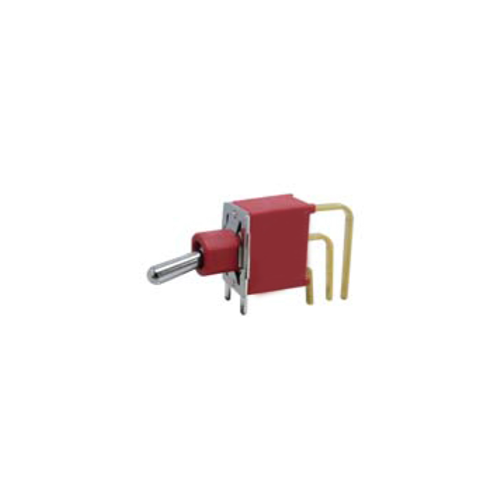

This Miniature PCB Toggle Switch has SPDT terminals and vertical right-angle mounting. It is IP67 rated for resistance to water and dust and can have 2 or 3 positions.
Key Features:
| IP Rating | |
|---|---|
| Function | |
| CONTACT RATING | *Dependent upon contact material |
| CONTACT RESISTANCE | 10 m Ω max. initial @ 2-4VDC |
| INSULATION RESISTANCE | 1,000 MΩ min. |
| DIELECTRIC STRENGTH: | 1,000 Vrms min.@sea level. |
| Mechanical Operations | |
| Product Series |
| Contact Rating | Dependent on contact material |
| Mechanical Life | 30,000 cycles |
| Electrical Life | 50,000 cycles |
| Contact Resistance | 10 m Ω max. initial @ 2-4VDC 100mA |
| Insulation Resistance | 1000 m Ω min. |
| Dielectric Strength | 1000 vrms min. @ sea level |
| Operating Temperature | -40°C to 85°C |
