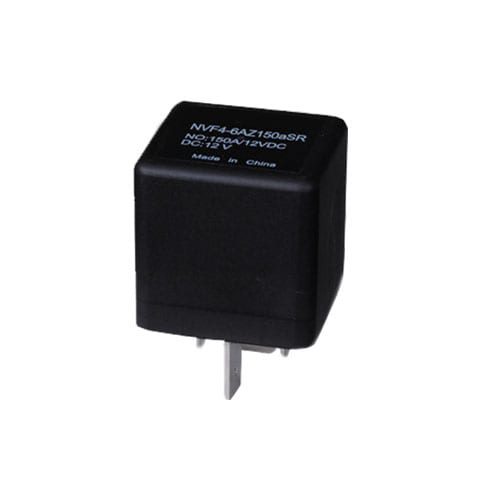

NVF4-6

• Relay

• Small size.
• Contact load capacity up to 150A.
• Suitable for automotive.
• Terminal types as inserting.

Function

Contact Arrangement

1A (SP STNO) ,1C (SPDT(B-M))

Contact Rating (resistive) 1A

1 ODA, 150A/12VDC
50A/24VDC

Contact Rating (resistive) 1C

NO: 50A/24VDC,100A,150A/12VDC
NC: 50A/24VDC,80A, 1 00A/12VDC

Max. Switching Power

1800W

Max. Switching Voltage

75VDC
Max. Switching Current: 150A

Contact Resistance or Voltage drop

≤30mΩ
≤200mV (at contracting)

Electrical Operations

Mechanical Operations

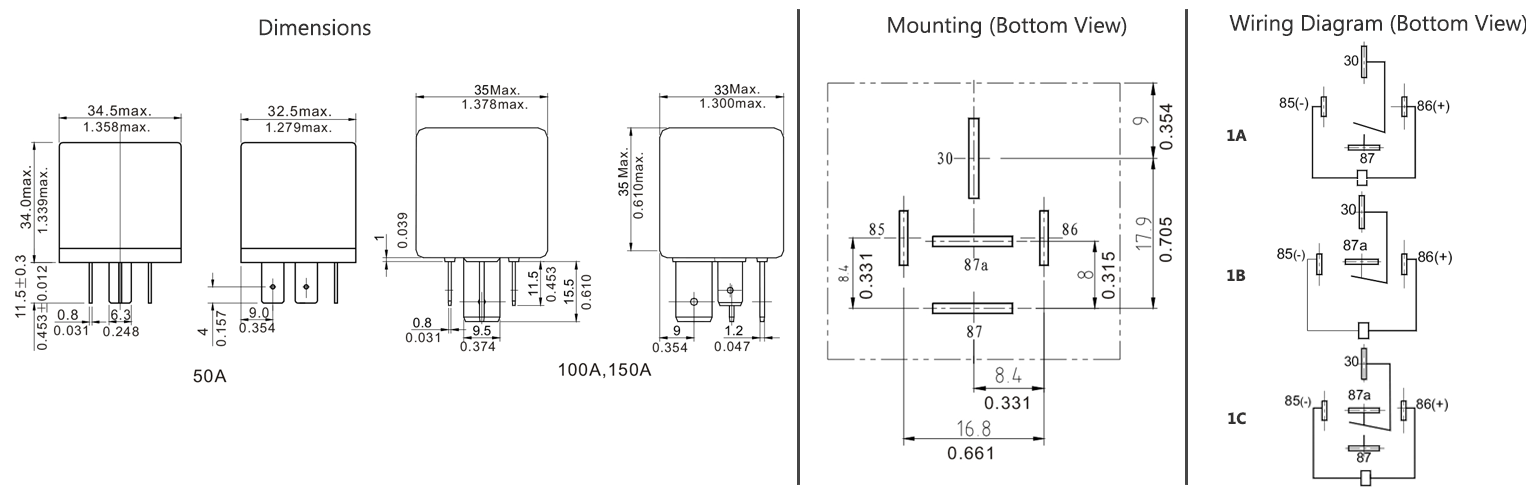

Sizing (mm)

34.5 x 32.5 x 34

Circuit
