RJS1N1S-19-BUZZ.3

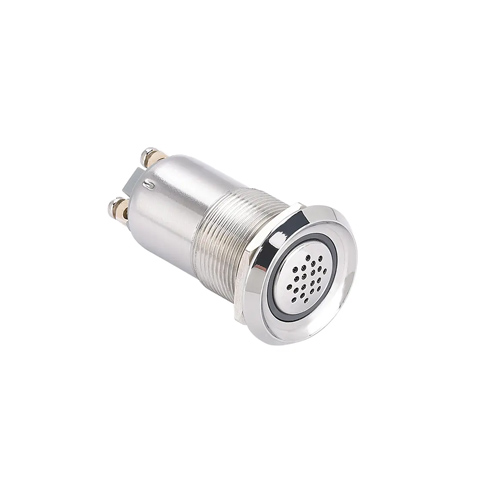

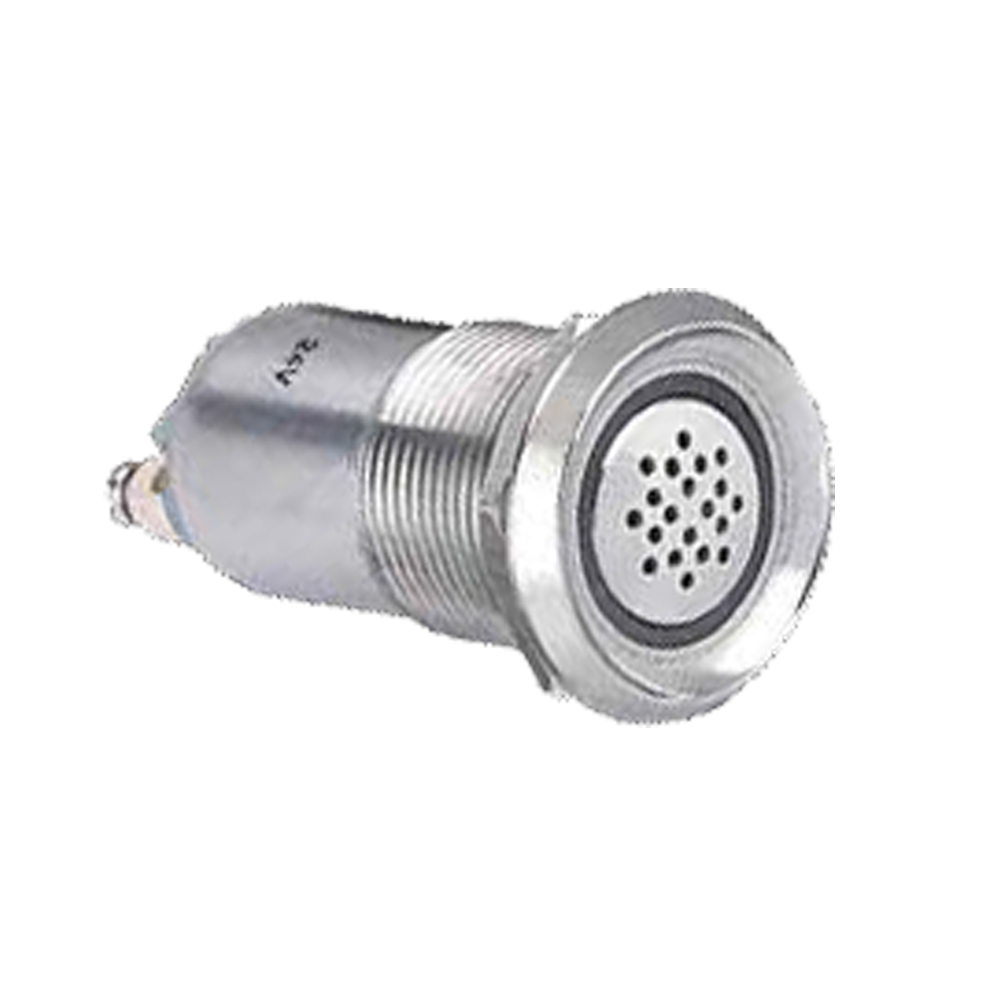

This 19mm Metal Panel Mount Buzzer features LED illumination and an IP40 rating. It is stainless steel with a flicker buzzer sound.

Key Features:

  • Ø 19mm panel cut out
  • LED illuminated
  • Stainless steel
  • IP40 rated
  • 12V/24V
  • Flicker buzzer
Function

Illumination

Terminal Options

IP Rating

Product Series

Panel Cut-Out Diameter

Sound Intensity

≥85dB

Mounting Hole Diameter: Φ19mm
Sound Type: Flashing Buzzer(SM)
LED Colour: RED – Other colour can be customised
Supply Voltage: DC12V / DC24V
Rated Current: ≤30mA
Buzzer Volume: ≥85dB(at 0.1m distance) / ≥75dB(at 1m distance)
Body Material: Stainless Steel
IP Rating: IP40, IK04

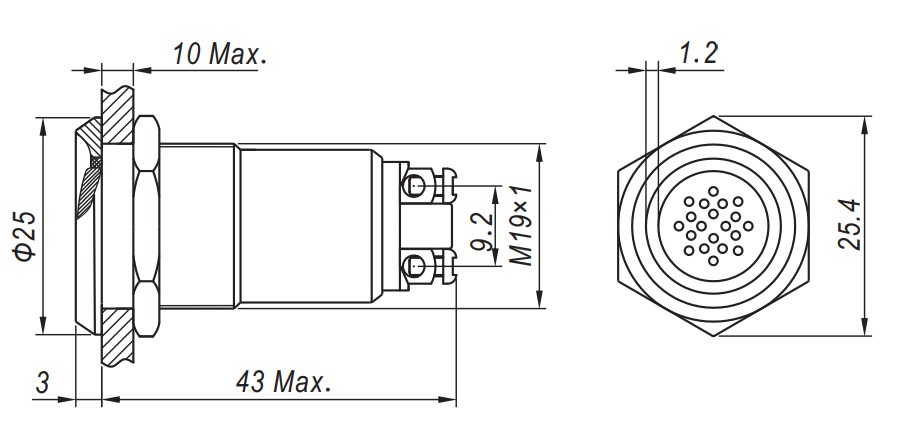

Buzzer, drawing, rjs electronics ltd
