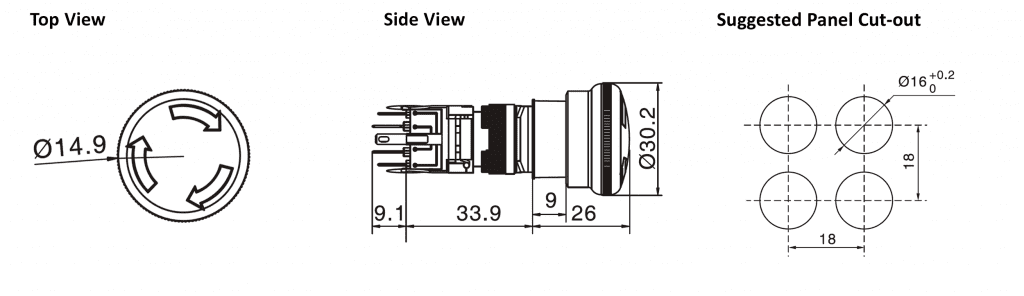

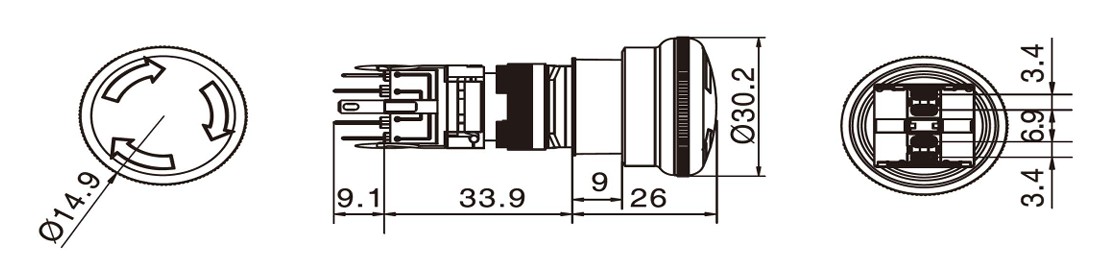

This Emergency Stop Switch (E-Stop) has a latching function and is non-illuminated. It has solder lug terminals and an IP65 rating.
Key Features:
| Product Series | |
|---|---|
| Function | |
| Cap / Actuator Shape | |
| Illumination | |
| Orientation | |
| Terminal Options | |
| Configuration | |
| Panel Cut-Out Diameter | |
| IP Rating |
|
Operating Temperature |
-25°C to +55°C |
|
Operating Humidity |
45-85% RH |
|
Degree of Protection |
IP65 >10g |
|
Maximum Voltage |
250V AC/DC |
|
Thermal Current |
5A |
|
Minimum Applicable Load |
5V AC/DC, 1mA |
|
Contact Material |
Gold-plated silver |
|
Terminal Style |
.110” Solder/Quick Connect |
|
Contact Resistance |
50MΩ maximum |
|
Insulation Resistance |
100MΩ minimum (500V DC megger) |
|
Dielectric Strength |
Switch Unit: 2000V AC, 1 min between live/dead part and terminals of different poles; 1000V AC, 1 min between terminals of the same pole; 1500V AC, 1 min between contact and lamp terminals. Illumination Unit: 2000V AC, 1 min between live part and ground. |
|
Vibration Resistance |
10 to 55Hz, amplitude 1.2mm p-p |
|
Mechanical Life |
1,000,000 operations minimum |
|
Electrical Life |
100,000 operations minimum (at full rated load) |
|
Soldering Temperature |
20W/5 seconds or 260C/3 seconds |
