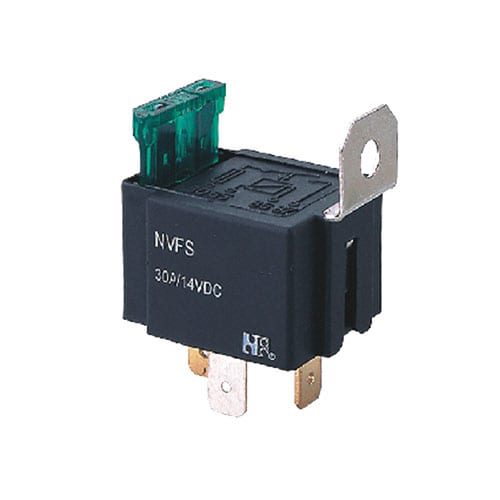

NVFS

  • 32.6 × 25.2 × 21mm
  • Max. Switching Voltage: 75VDC
  • Small, light, heavy contact load (30A), Metal fixing stand
  • Form of contact: common (1A), Form of outlet terminal: insert mounting
  • Be used as automotive and light fittings

PDF (Full

Function

Contact Arrangement

1A (SPSTNO)

Contact Rating (resistive)

15A, 30N14VDC

Max. Switching Power

420W

Max. Switching Voltage

75VDC
Max. Switching Current:30A

Contact Resistance or Voltage drop

<50mQ

Electrical Operations

Mechanical Operations

Sizing (mm)

32.6X25.2X21

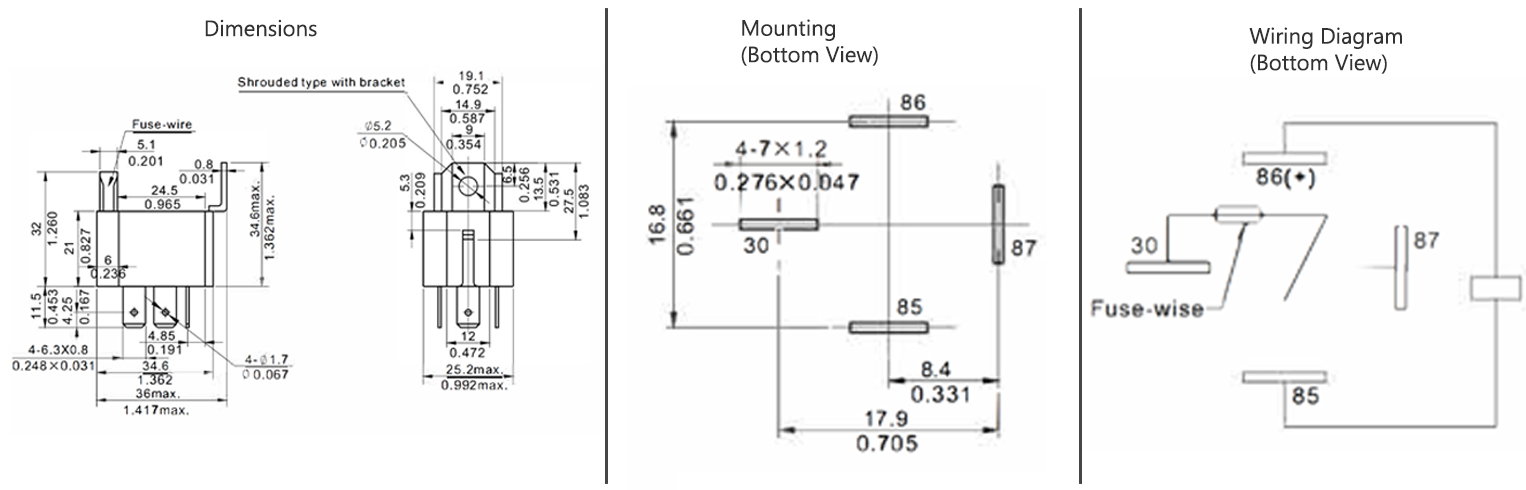

Drawing
