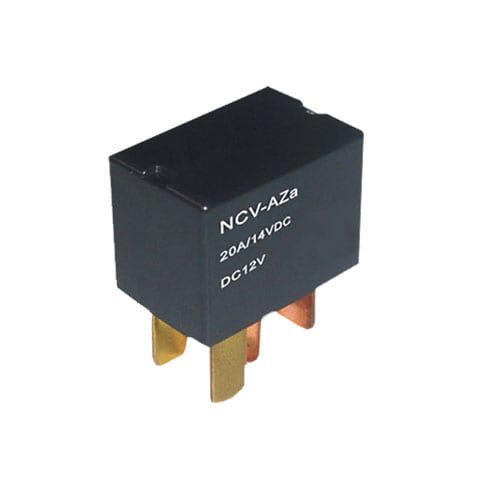

NCV

• Relay

  • Low profile.
  • Low temperature rise.
  • Sizing (mm) 22.7X 15.2X 16.2.
  • Mass 15g

Applications:

  • Automation system
  • Automobile auxiliary etc.
Function

Contact Arrangement

1A(SPSTNO), 1C (SPDT(B-M))

Contact Rating (resistive)

NO: 25A/14VDC NC:20A/14VDC

Max. Switchinq Power

350W

Max. Switching voltage

75VDC
Max. Switching Current :25A

Contact resistance or Voltage drop

≤50mΩ

Electrical Operations

Mechanical Operations

Sizing (mm)

22.7X 15.2X 16.2
