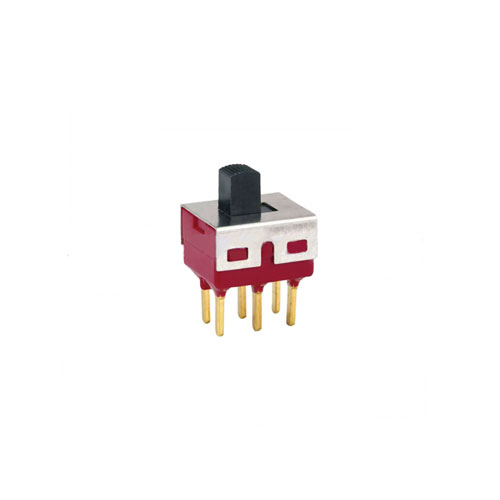

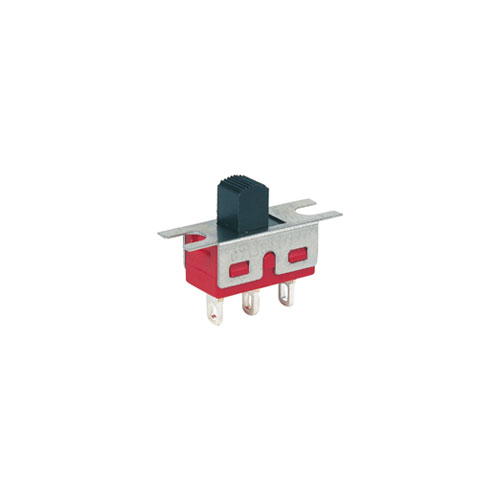

These PCB mount Slide Switches feature an SPDT or DPDT configuration with vertical or right-angle mounting. Choose from 2 or 3 positions and a range of actuator heights.
Key Features:
| Product Series | |
|---|---|
| Function | |
| Configuration | |
| Orientation | |
| Terminal Options |
| Contact Rating | Dependent upon contact material |
| Mechanical Life | 30,000 make-and-break cycles |
| Contact Resistance |
10mΩ max initial. @2-4VDC, 100mA for both silver and gold plated contacts |
| Insulation Resistance | 1,000 MΩ min |
| Dielectric Strength | 1,000 vrms min @ sea level |
| Operating Temperature | -30°C to 85°C |
